U1 Battery Kit- FORCE ISC
U1 Battery Kit- FORCE ISC
U1 Battery Kit- FORCE ISC
U1 Battery Kit- FORCE ISC
U1 Battery Kit- FORCE ISC U1 Battery Kit- FORCE ISC U1 Battery Kit- FORCE ISC

U1 Battery Kit- FORCE ISC

$179 USD

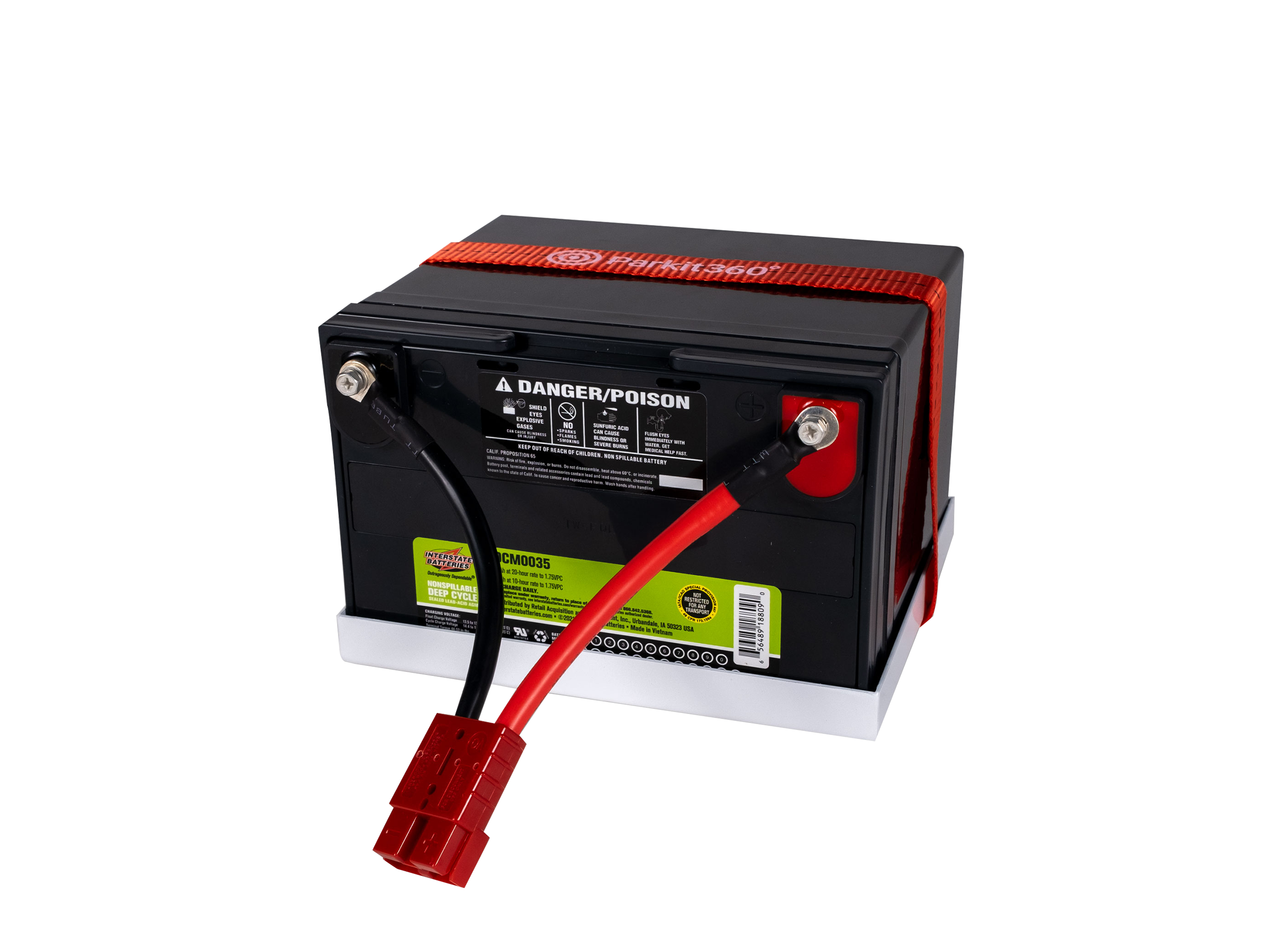

  • A complete U1 12V Sealed Battery Kit. Includes custom steel Battery Tray and Battery Cables. Mounts directly to the Force 5K & 10K Dollies with an adjustable Red Battery Strap. Comes pre-installed on our B2 and B3 Force packages, and is compatible with most of our previous Force Models.

    This weatherproof sealed Battery is designed to lay on its side, giving the dolly a lower profile than the standard plastic Battery Box and providing better clearance underneath the hitch.

    This Kit Includes:

    • U1 12V Sealed Battery with Tray
    • 6" Power Cable
      (Longer Cable Required for Older Force Dollies)
    • Battery Strap

      Tray Dimensions:

      • 7 3/4" x  6 3/8" x  3/4"
      • 19.8cm x 16.2cm x 2cm

      Fits Most U1 Sealed Batteries. (Not compatible with 12V Group 24 Deep Cycle or Marine Batteries.)

      Battery Specs:

      • U1 Sealed 12V Battery
      • Capacity: 33Ah
      • Terminals: NB (Nut and Bolt)
      • Chemistry: Deep Cycle
      • Weight: 23lbs each (10.5 kg)



      (This Product Only Ships within Mainland USA and Canada. If purchased separately, this item is non-returnable and non-refundable. Parkit360 Trailer Dolly sold separately.)

    • 5k & 10k B

      4" Tires
      Ball Mount with Tightening Bar
      Two Hitch Balls: 2" & 2 5/16"
      Thrust Washer (Puzzle)
      20" Battery Cable
      Connect to Dolly Mounted Battery*
      80" Battery Cable
      Connect to Trailer's Existing Battery Set-Up*

      *This Package does NOT include Battery or Battery Box.

      5k & 10k B2

      4" Tires
      Ball Mount with Tightening Bar
      Two Hitch Balls: 2" & 2 5/16"
      Thrust Washer (Puzzle)
      U1 Battery Kit
      Includes Battery, Mounting Tray, Strap and 6" Power Cable
      Built-In Battery Charger
      Smart Brake Controller
      Controls Electric & Surge Brakes via 7-Pin plug.

      5k & 10k B3

      6.5" Tires
      Ball Mount with Tightening Bar
      Two Hitch Balls: 2" & 2 5/16"
      Thrust Washer (Puzzle)
      U1 Battery Kit
      Includes Battery, Mounting Tray and Strap, and 6" Power Cable
      80" Battery Cable
      Connect to Trailer's Existing Battery Set-Up
      Built-In Battery Charger
      Smart Brake Controller
      Controls Electric & Surge Brakes via 7-Pin plug.

    • 15k Ball Mount Only

      Max Capacity: 10,000 lbs GVWR
      Tongue Weight: 1,000 lbs

      20" Ball Mount Adapter
      (Custom sizes available upon request.)
      3 Hitch Balls: 1 7/8”, 2” & 2 5/16”
      Wireless Remote Controller
      Battery Box*
      Built-In Battery Charger
      Smart Brake Controller
      (Controls Electric & Surge Brakes via 7-Pin plug.)
      6.5" Wide Tires

      15k Fifth Wheel & Ball Mount

      Max Capacity: 15,000 lbs GVWR
      Tongue Weight: 2,200 lbs

      Kingpin Measurements should be 48”-52” from Ground to bottom of Kingpin Box.

      If measurements exceed 48”-52”, Contact Us before ordering.

      Kingpin Adapter
      (50" from Ground to Kingpin Box)
      Kingpin Box Stabilizer Bars
      (Landing Leg Version Available Upon Request)
      20" Ball Mount Adapter
      (Custom sizes available upon request.)
      3 Hitch Balls: 1 7/8”, 2” & 2 5/16”
      Wireless Remote Controller
      Battery Box*
      Built-In Battery Charger
      Smart Brake Controller
      (Controls Electric & Surge Brakes via 7-Pin plug.)
      6.5" Wide Tires

      15k Gooseneck

      Max Capacity: 12,000 lbs GVWR
      Tongue Weight: 1,500 lbs

      This is a Custom Item. Contact Us with your trailer measurements before ordering.

      Gooseneck Adapter
      (Customized to fit your Trailer Dimensions.)
      3 Hitch Balls: 1 7/8”, 2” & 2 5/16”
      Wireless Remote Controller
      Battery Box*
      Built-In Battery Charger
      Smart Brake Controller
      Controls Electric & Surge Brakes via 7-Pin plug.
      6.5" Wide Tires

      * Battery NOT included. You will need to purchase a Group 24, 12V Deep Cycle Battery. Not Compatible with U1 Battery Kit.
