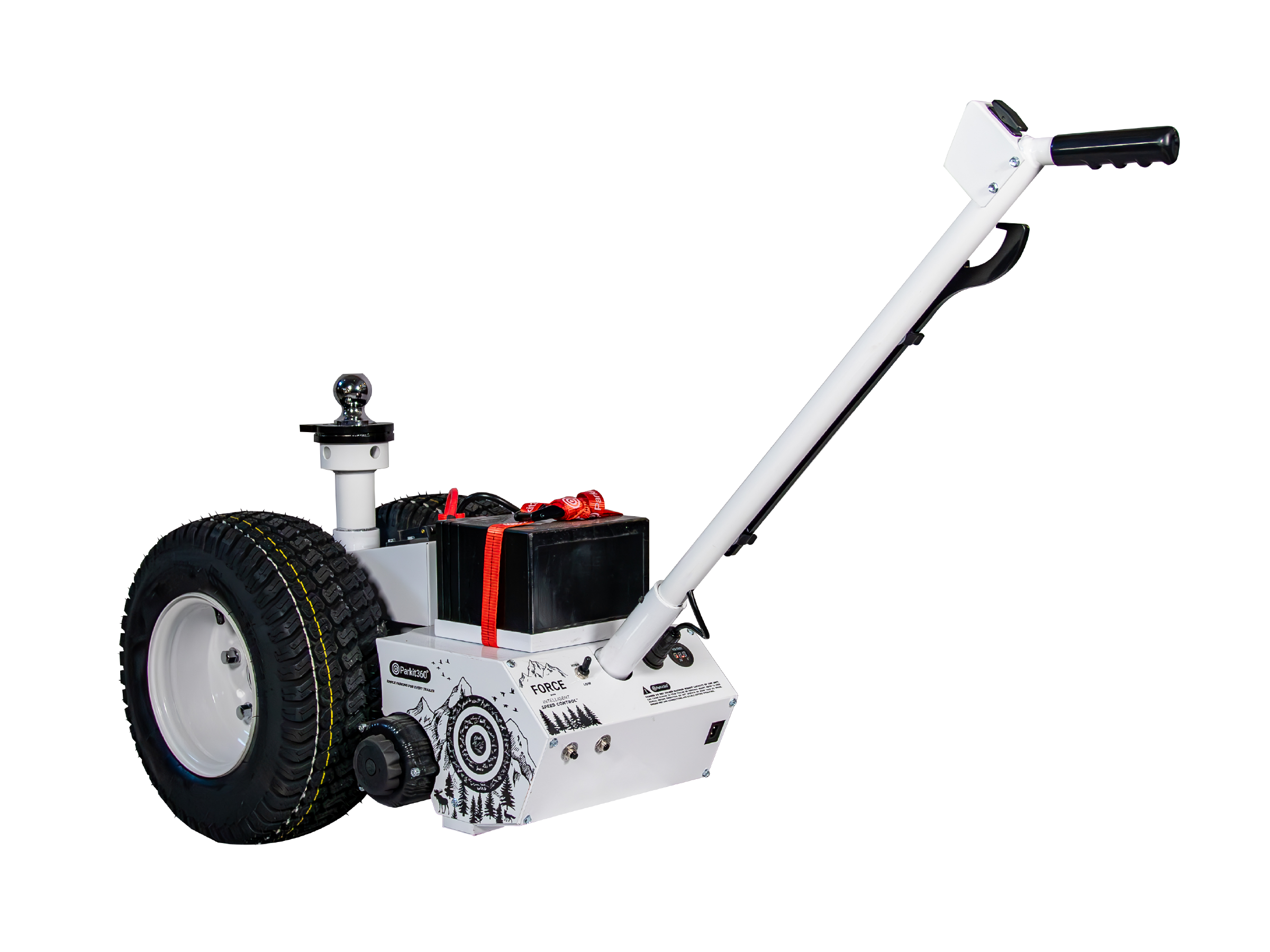

Force Trailer Dolly
ForceElectric Trailer Dolly 5K 10K
Maximum Weight Capacity 5,000 lbs GVWR 900 lbs Tongue 10,000 lbs GVWR 900 lbs Tongue
20" Ball Mount Adapter with Tightening Bar
Two Hitch Balls: 2" & 2 5/16"
Thrust Washer (Puzzle)
6.5" Tires
Battery Charger
Smart Brake Controller
U1 Interstate® Battery Kit
Battery Cable 6" Cable 6" Cable
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly
Force Trailer Dolly Force Trailer Dolly Force Trailer Dolly Force Trailer Dolly Force Trailer Dolly Force Trailer Dolly Force Trailer Dolly Force Trailer Dolly Force Trailer Dolly

Force Trailer Dolly

Weight Capacity: 5000 or 10 000 lbs Gross. / 900 lbs Tongue

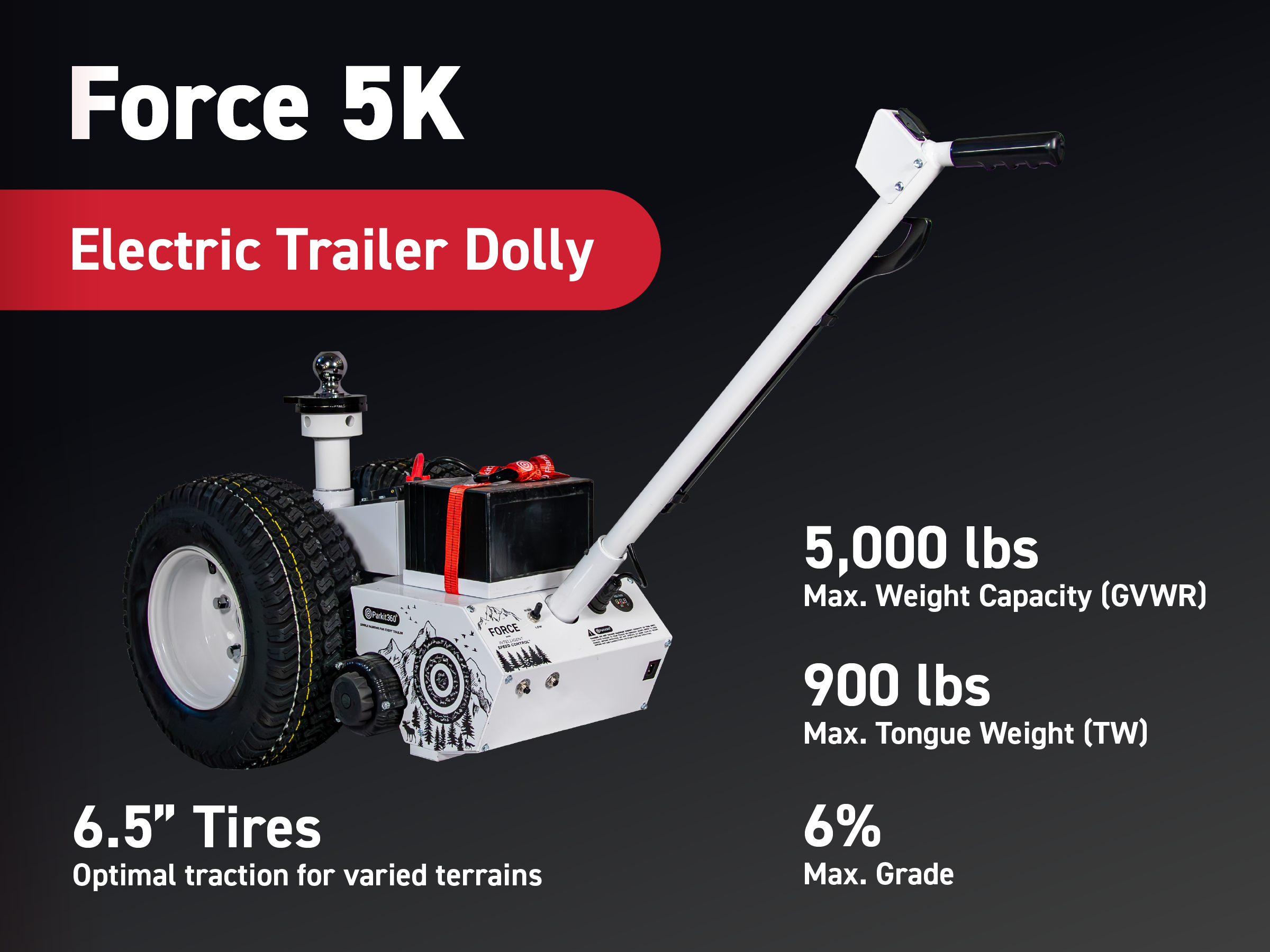

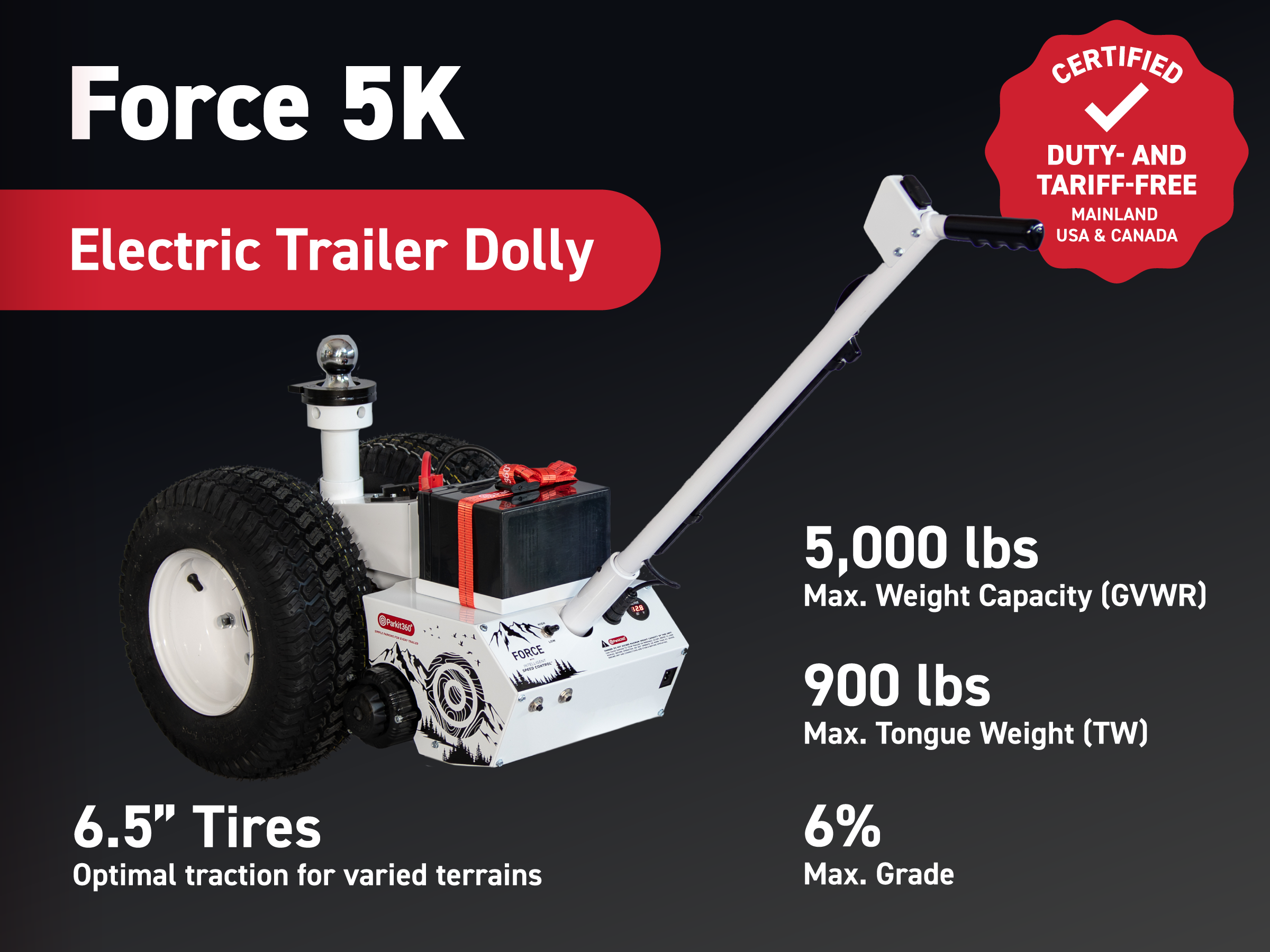

Force 5K

Max Capacity: 5,000 lbs GVWR
Tongue Weight: 900 lbs

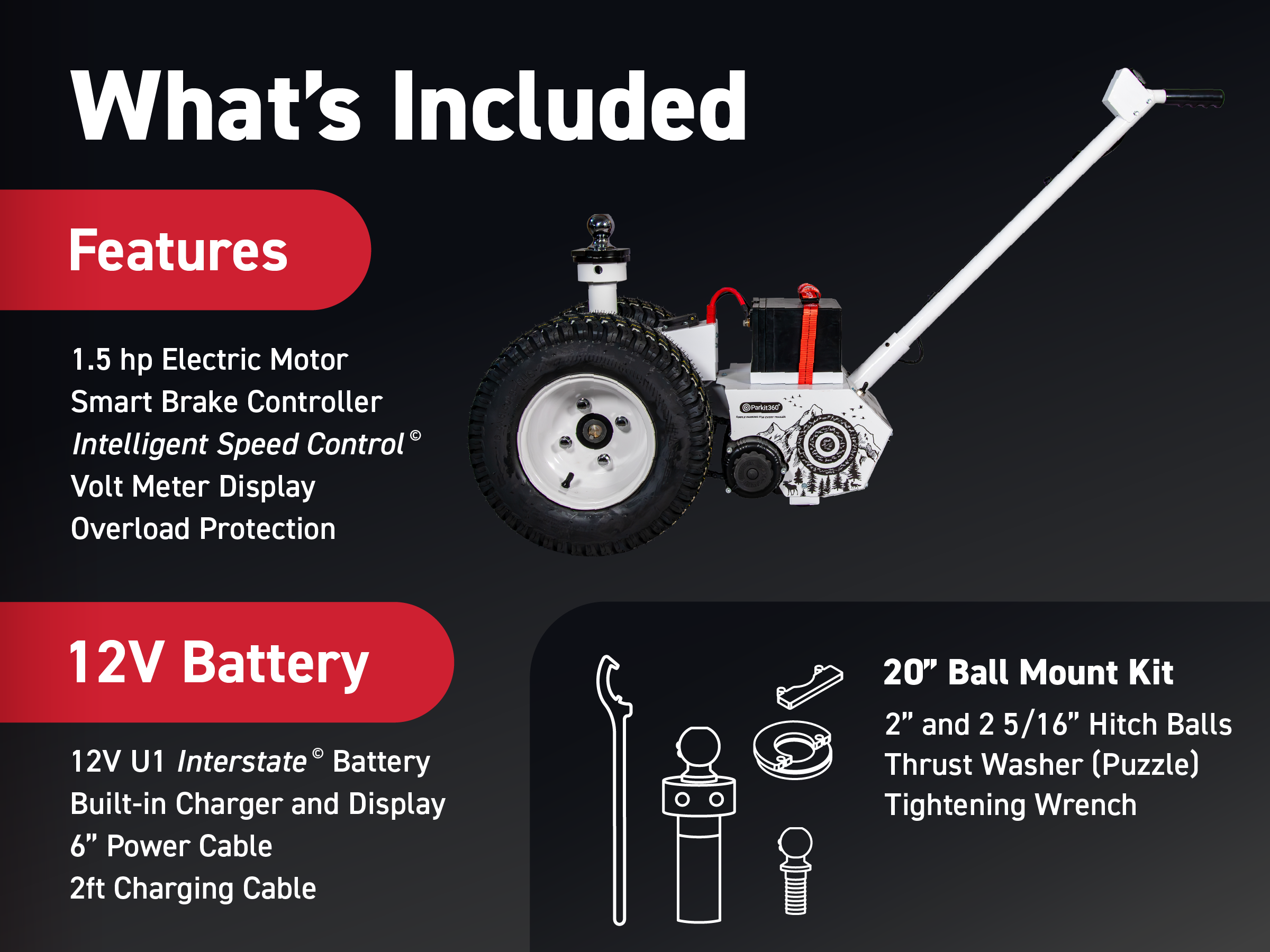

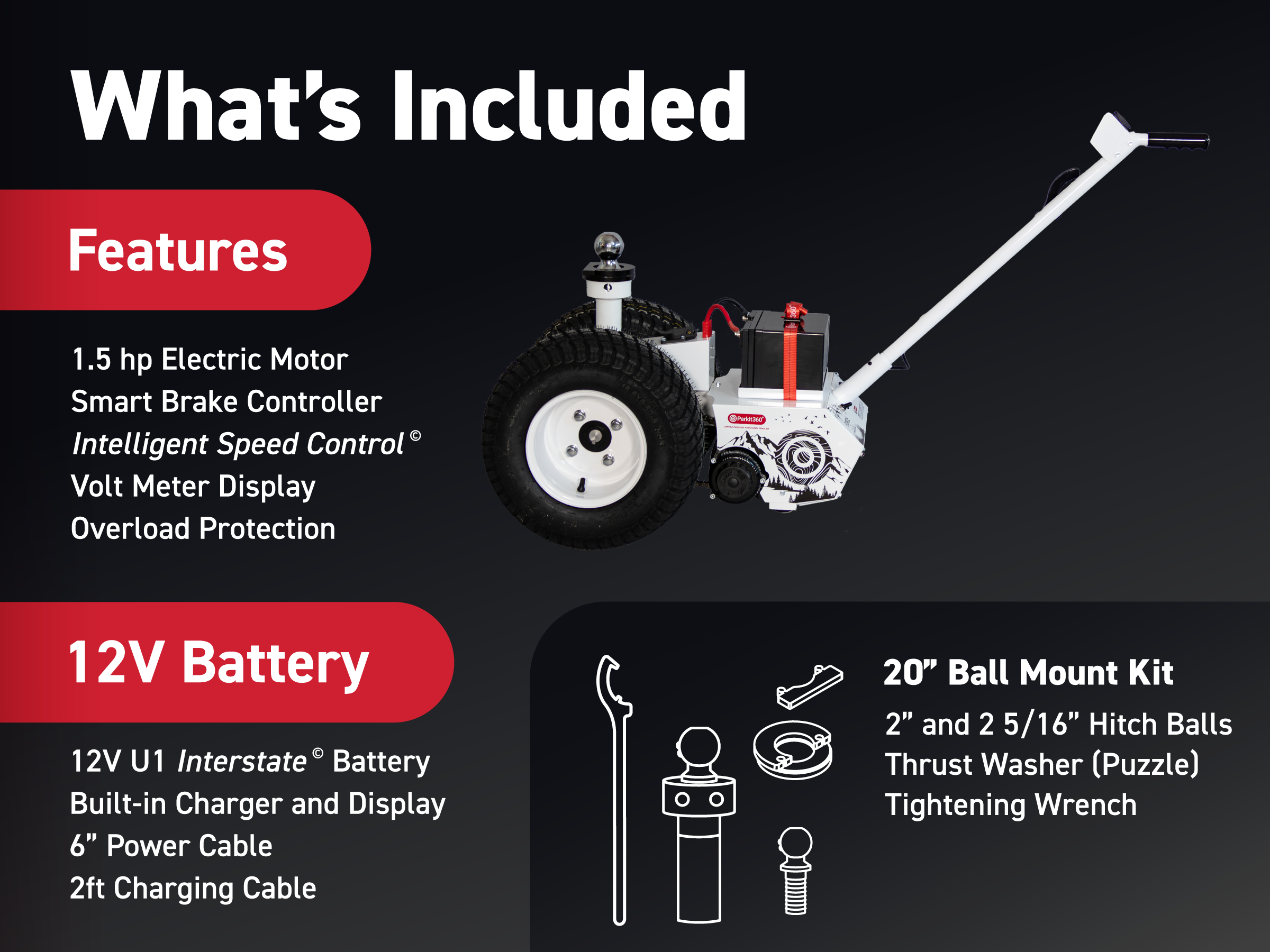

20" Ball Mount Adapter

  • 2 Hitch Balls: 2" and 2 5/16"
  • Thrust Washer (Puzzle)
  • Tightening Bar

6.5" Tires
U1 Battery Kit
Includes 12V Interstate® Battery, Mounting Tray, Strap and 6" Power Cable
Built-In Battery Charger
Smart Brake Controller
Controls Electric & Surge Brakes via 7-Pin plug

$1,600 USD

  • Psst... Want to save $150 on a used Force model?

    Get a like-new trailer dolly, for less! View our Open Box Trailer Dolly selection. (While quantities last.)

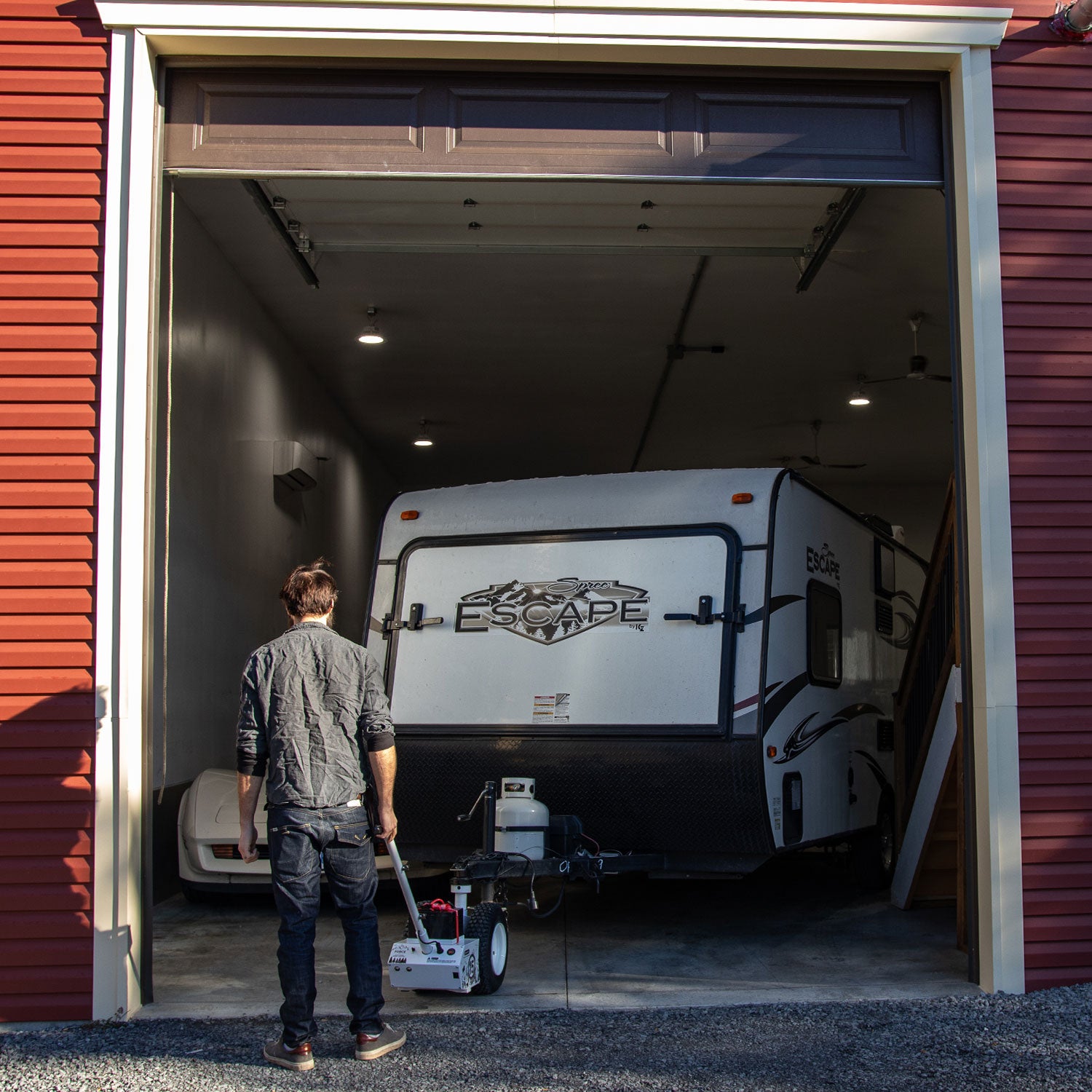

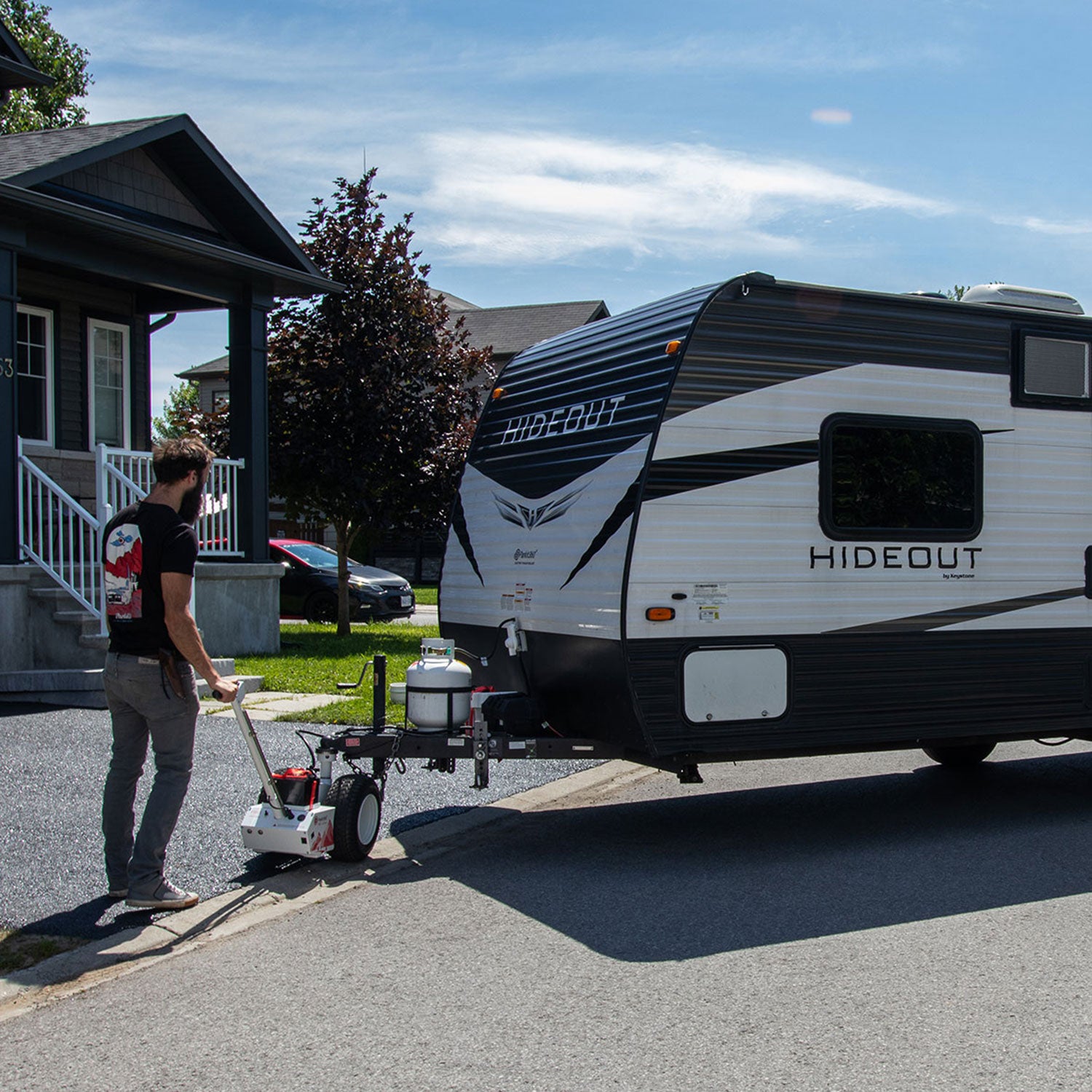

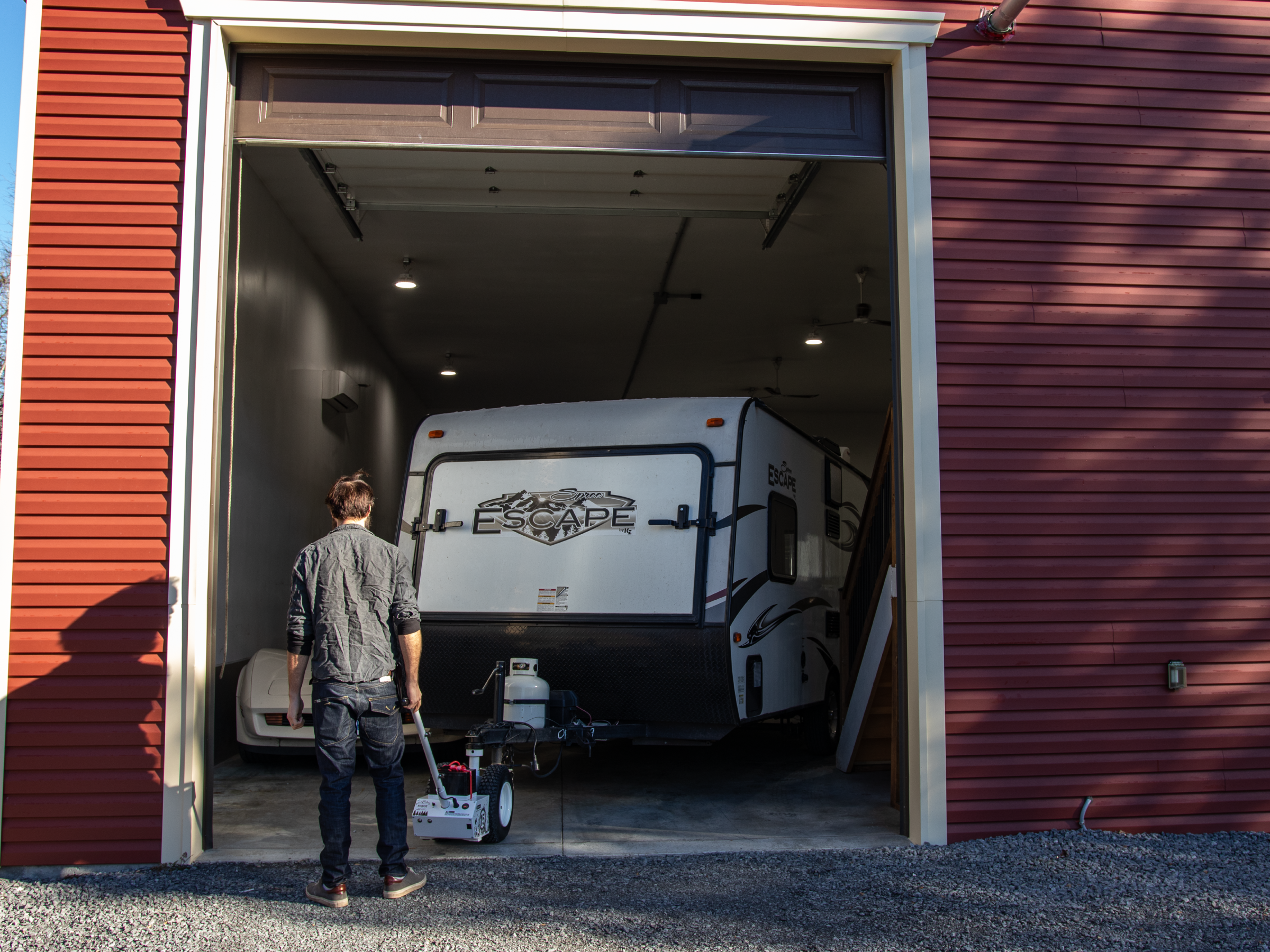

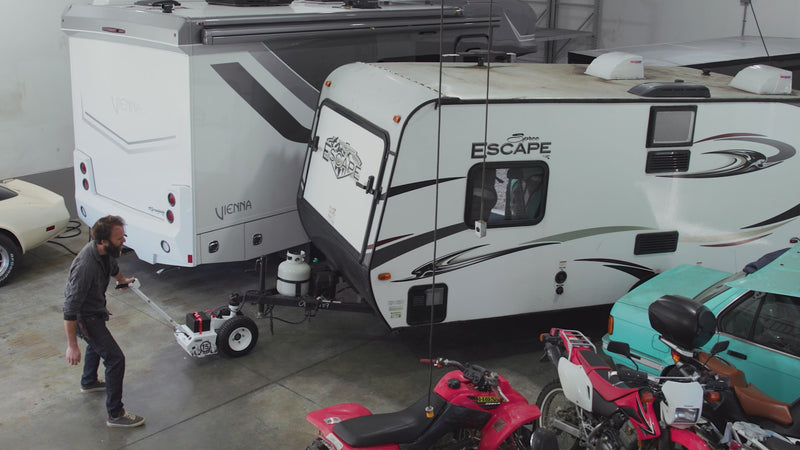

    SIMPLE PARKING
    FOR EVERY TRAILER

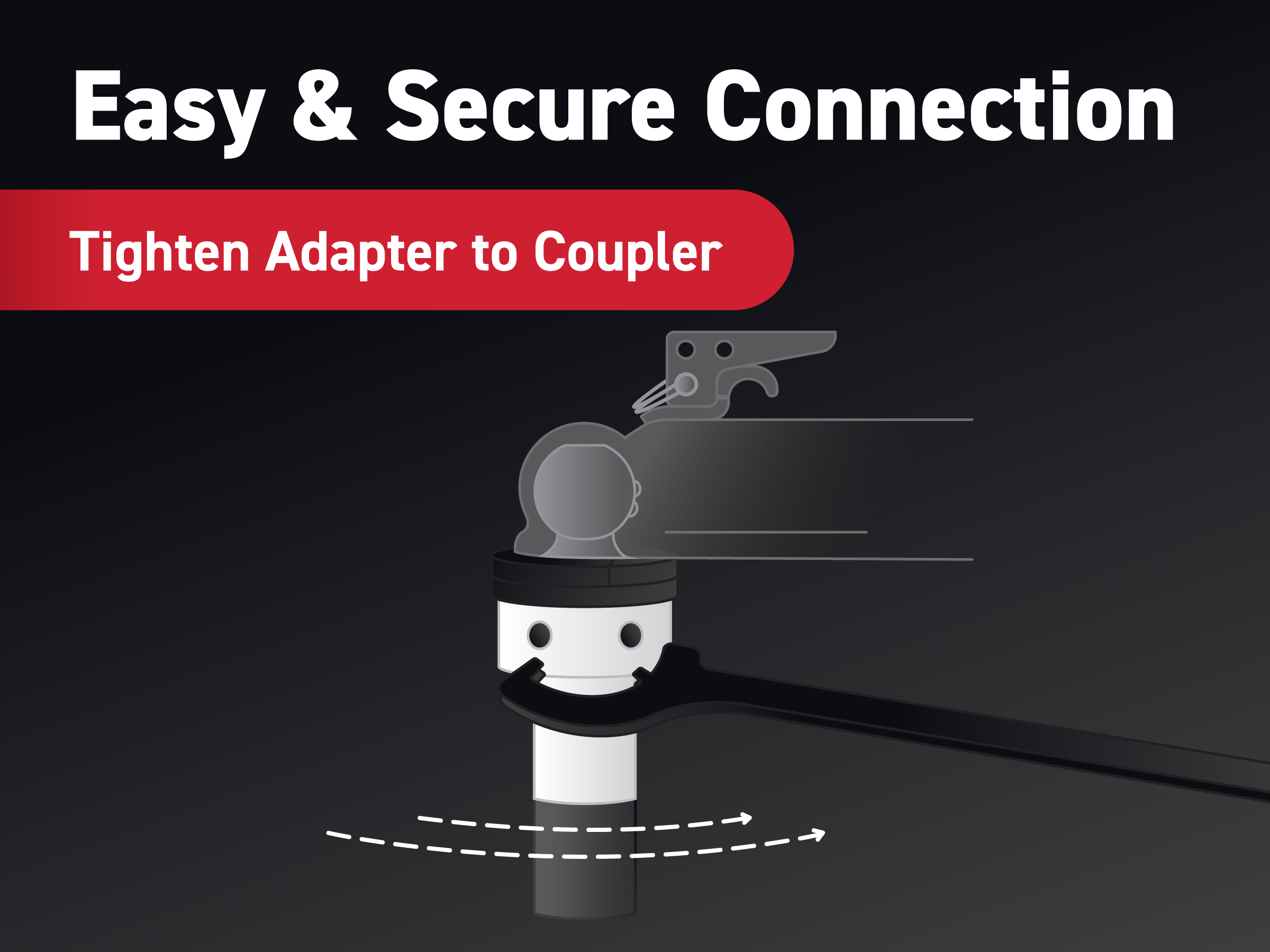

    Engage motor, connect battery, secure hitch adapter and GO!

    Compatible with almost every trailer right out of the box. See Instruction Manual for details:

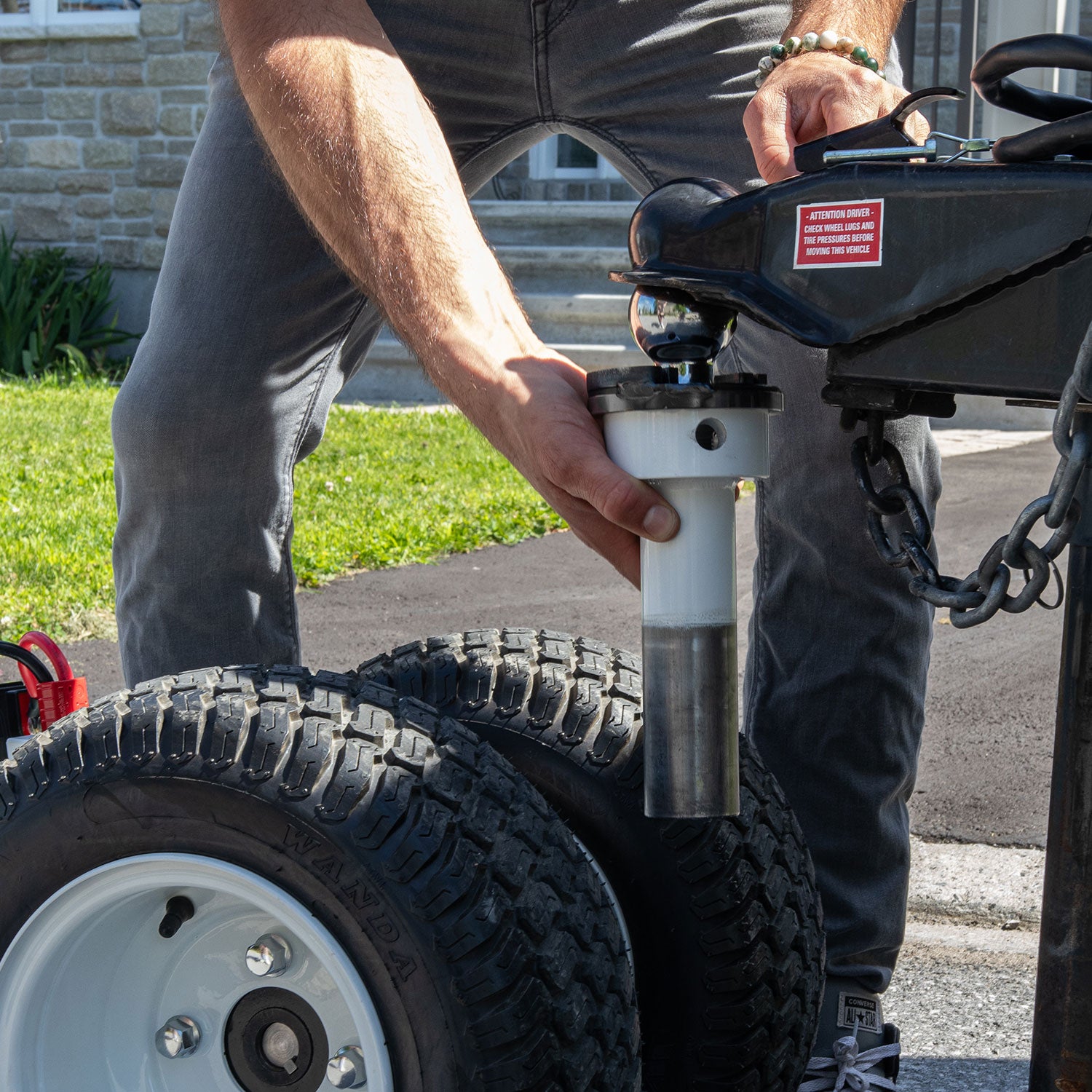

    BALL MOUNTED STABLELOCK TECHNOLOGY

    Each package comes with the standard 20” Ball Mount Adapter and two Hitch Balls: 2" and 2 5/16"

    Custom Sizes Available Upon Request.

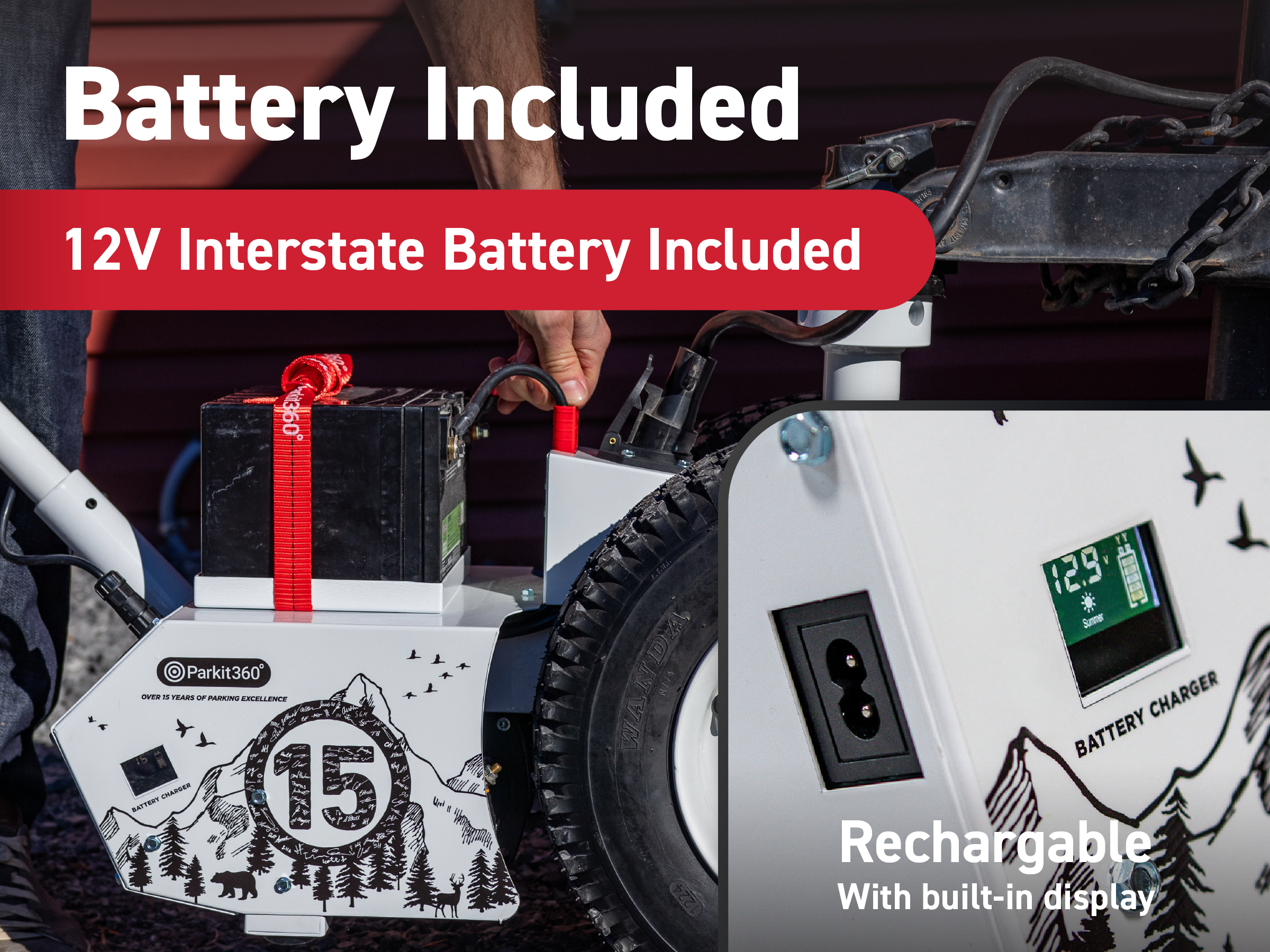

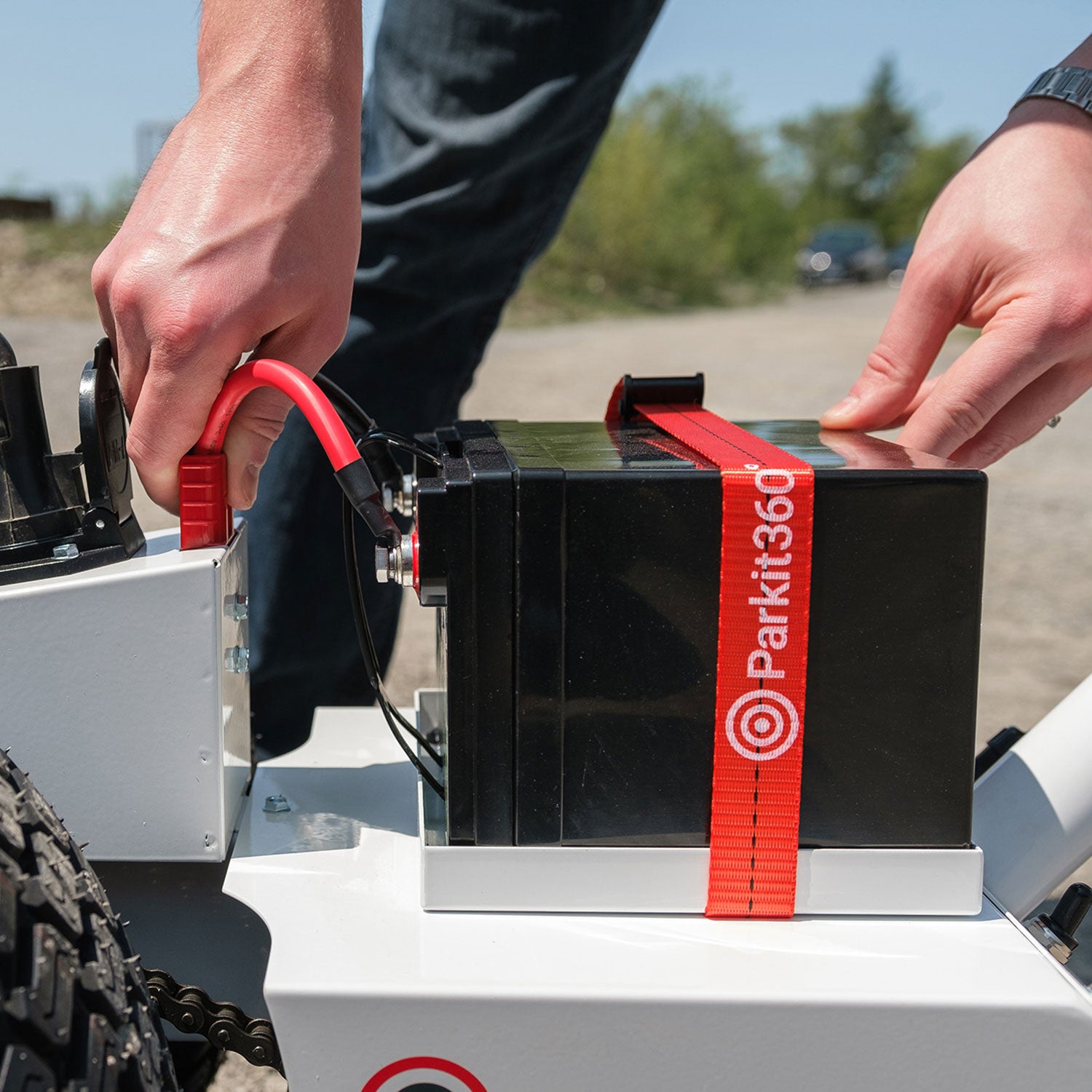

    BATTERY POWERED

    U1 Battery Kit: Includes a 12V U1 Interstate® battery.

    Battery Box Kit: Already own a battery? Mount any Group 24, 12V Deep Cycle or Marine Battery to the dolly for self-contained power. (Battery NOT included.)

    80” Battery Cable: Connect to your trailer's battery, or connect to a dolly-mounted battery.

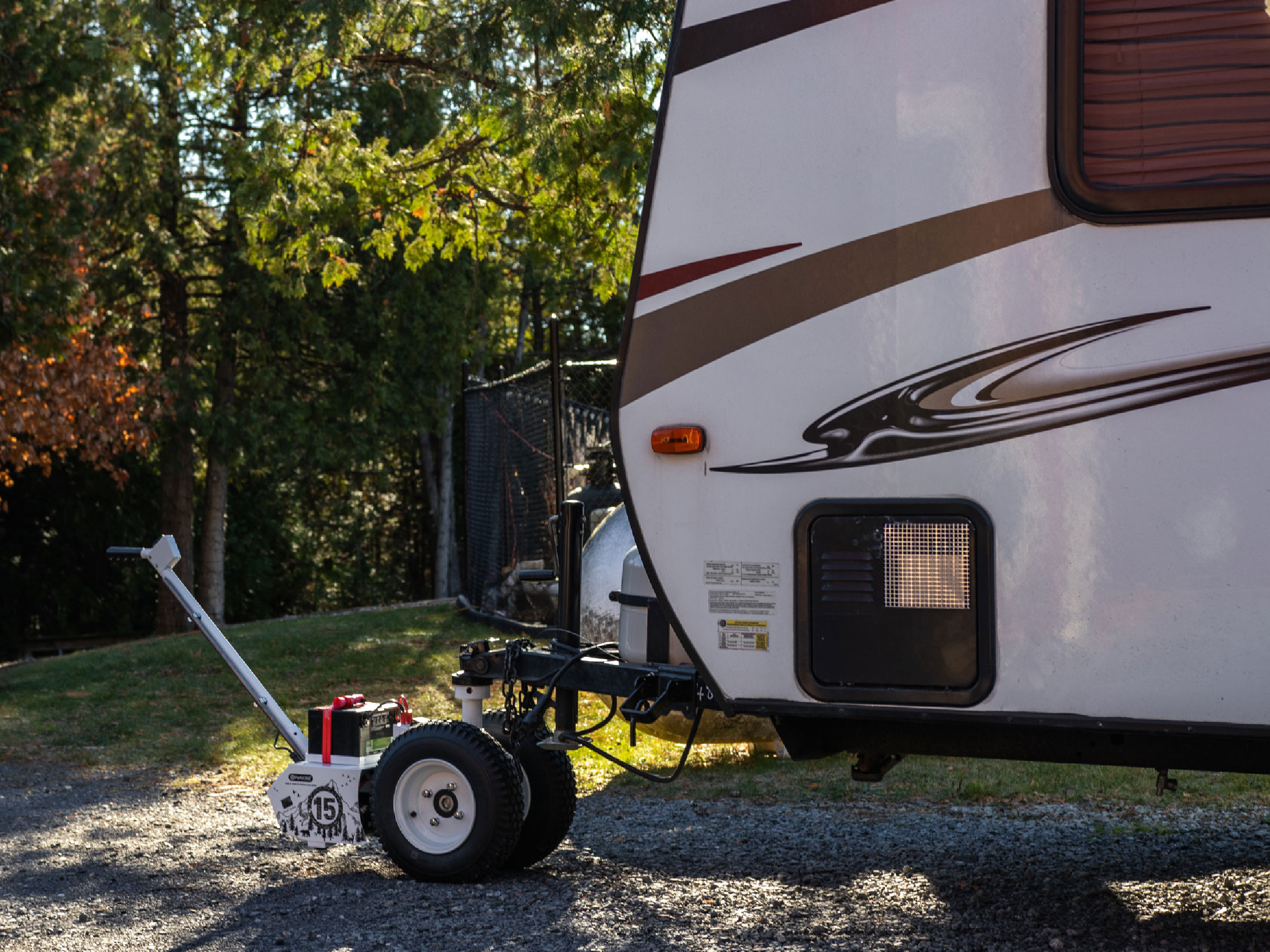

    WORKS ON FIRM GRASS, PACKED GRAVEL AND ASPHALT

    Our 6.5”-wide tires provide plenty of traction on varied terrain and on a maximum grade of 6%.

    Learn how to measure the slope of your driveway by watching our video.

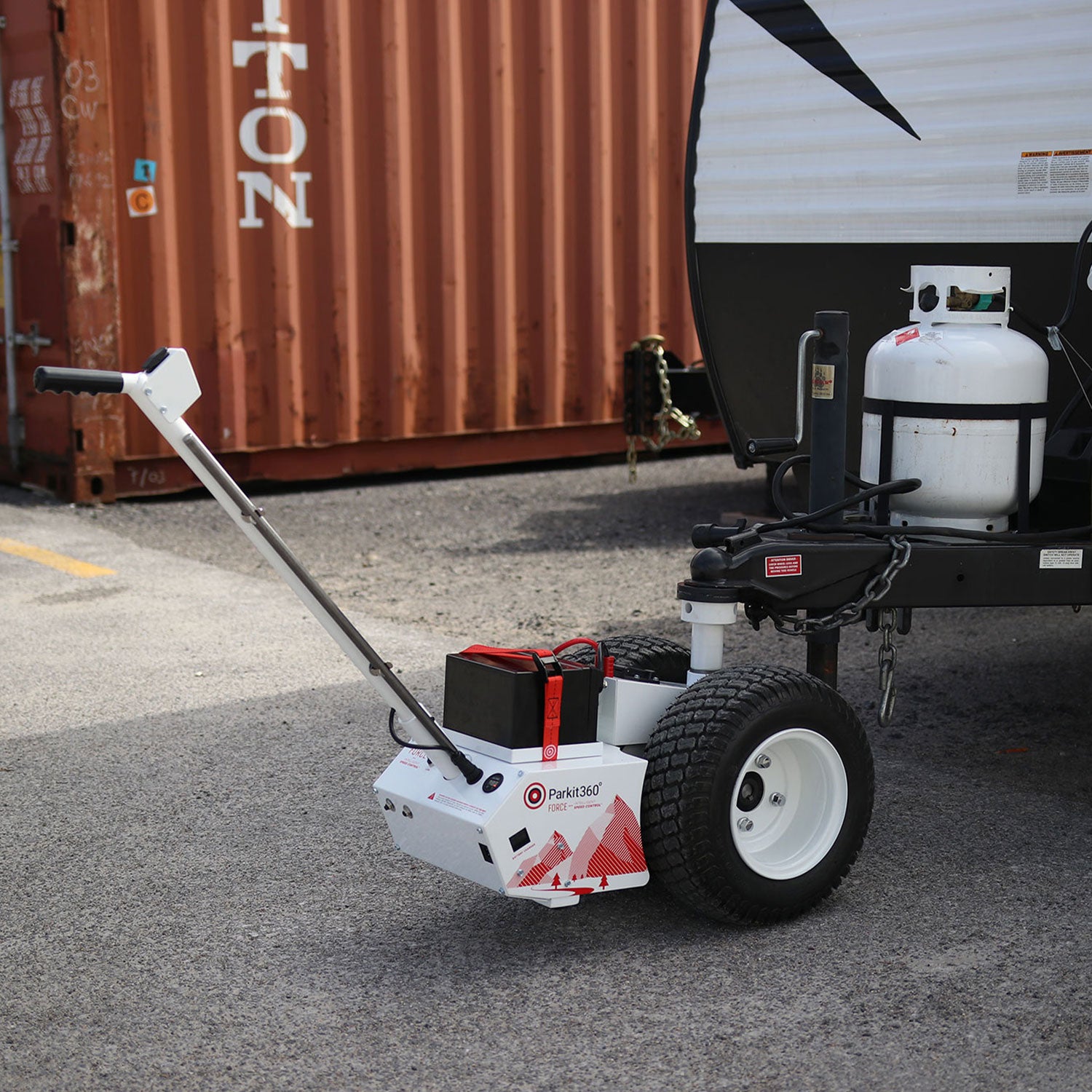

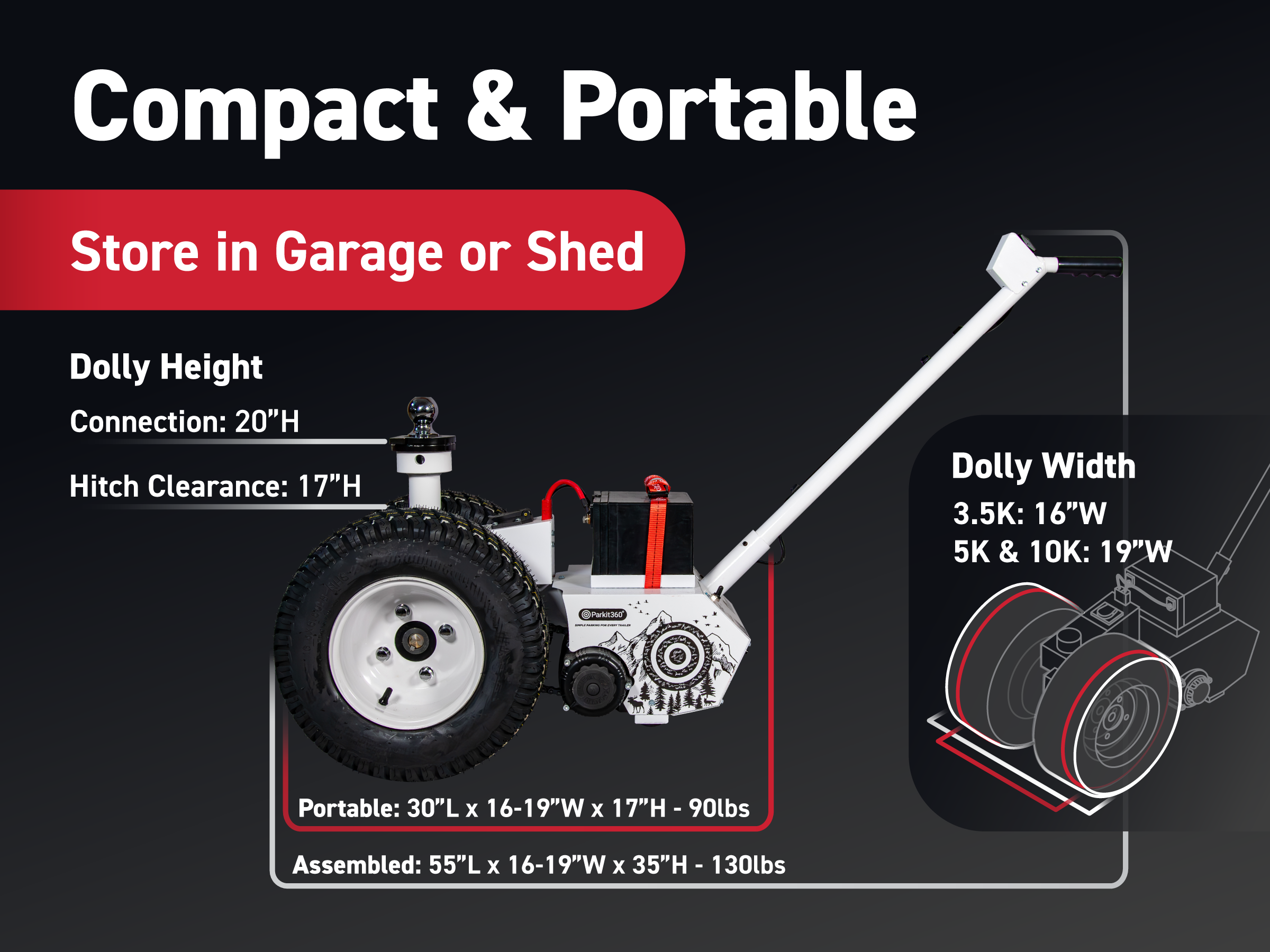

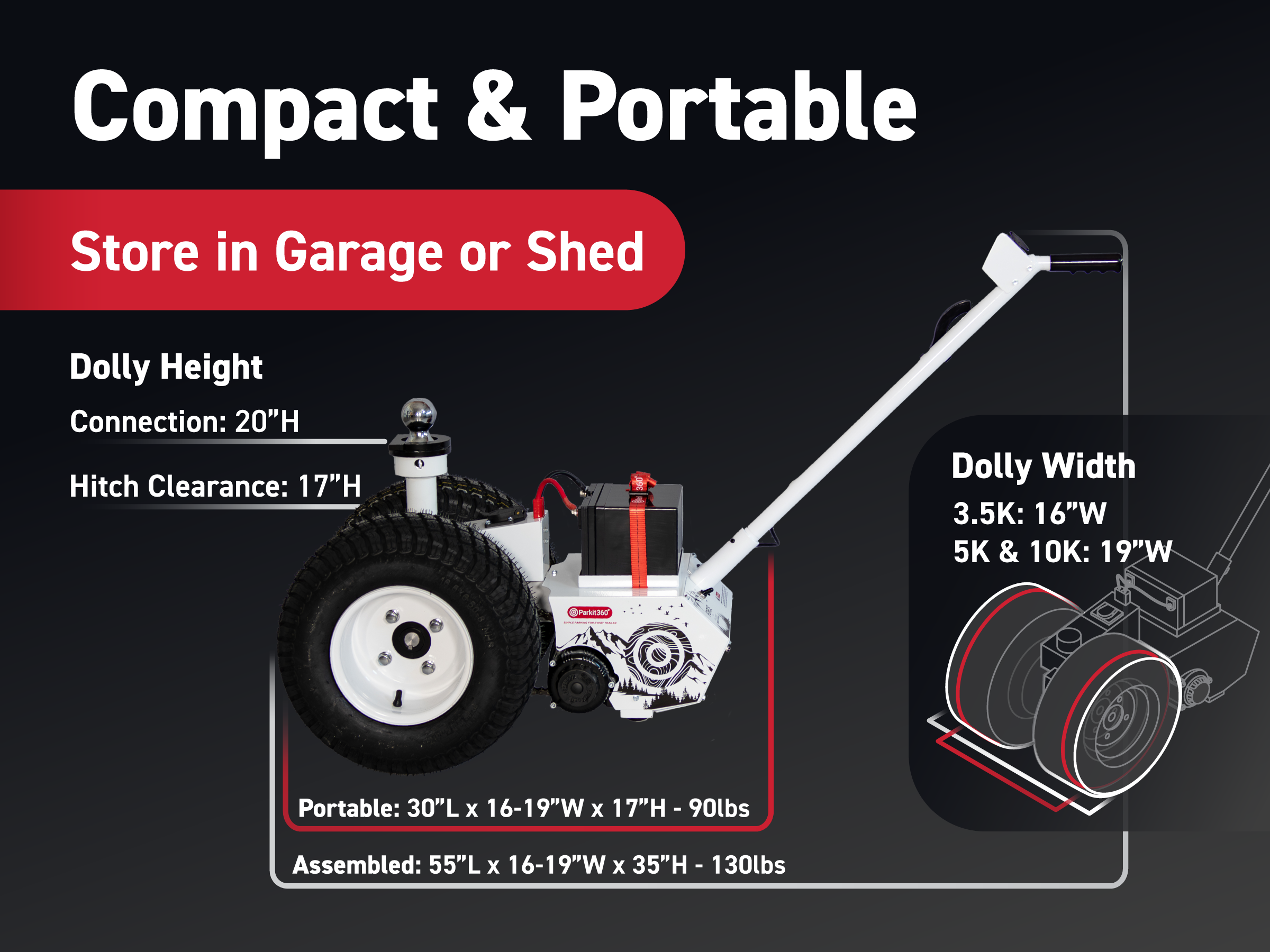

    COMPACT & PORTABLE

    The Force Dolly weighs approx. 80lbs without the Handle, Ball Mount, or Battery installed. It's easy to disassemble and fits into the trunk of a small sedan or trailer storage compartment.

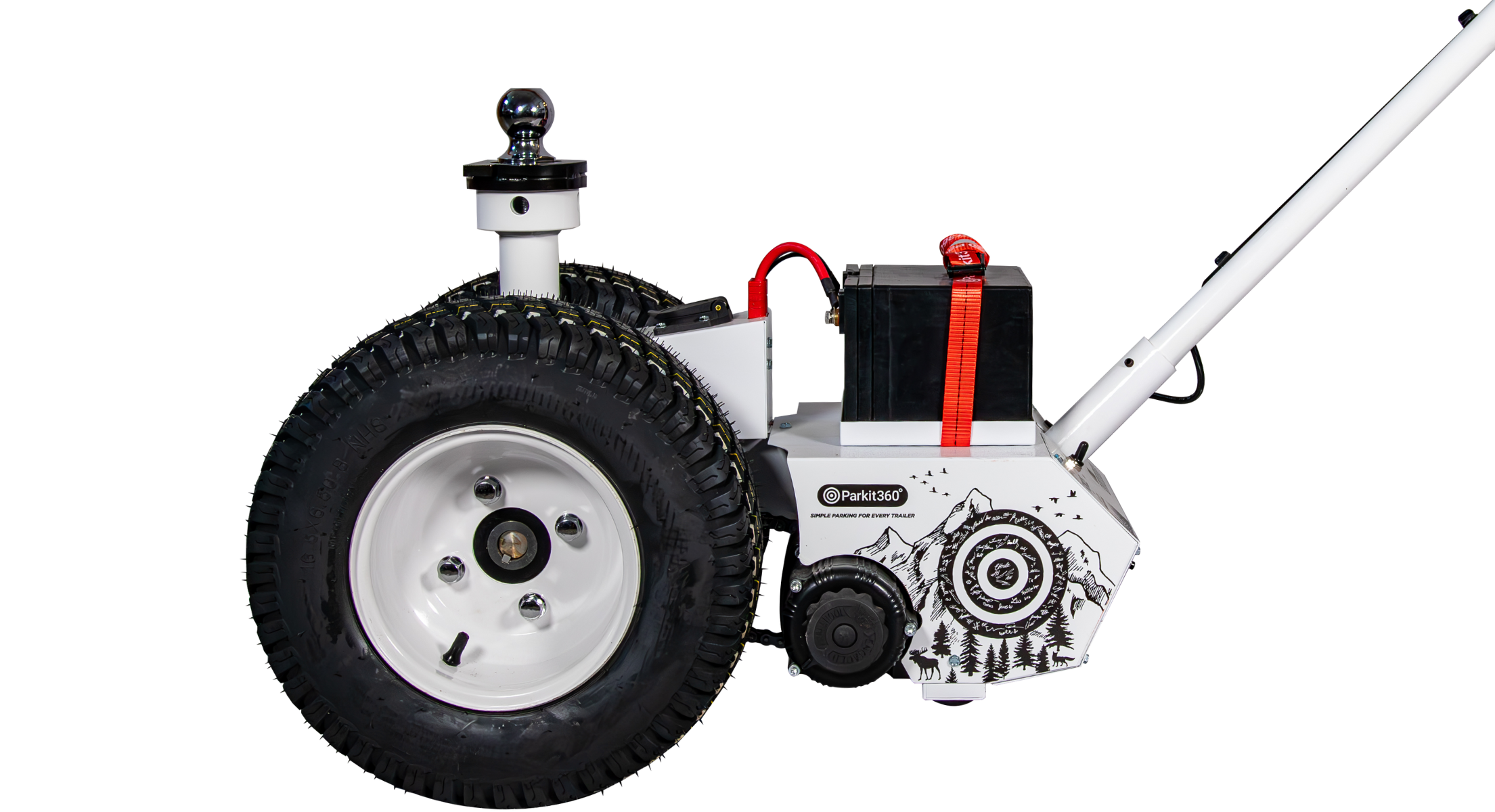

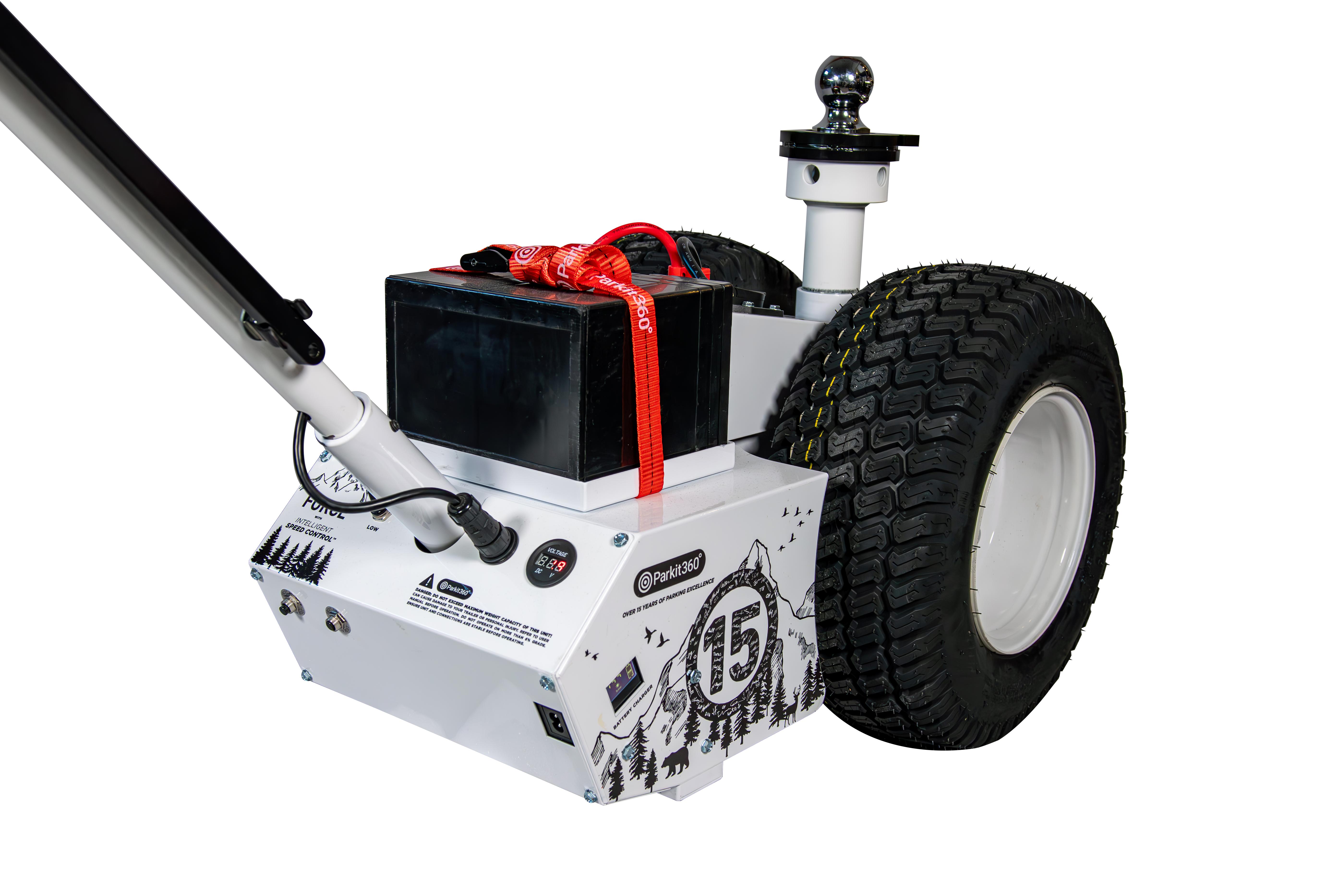

    DOLLY FEATURES

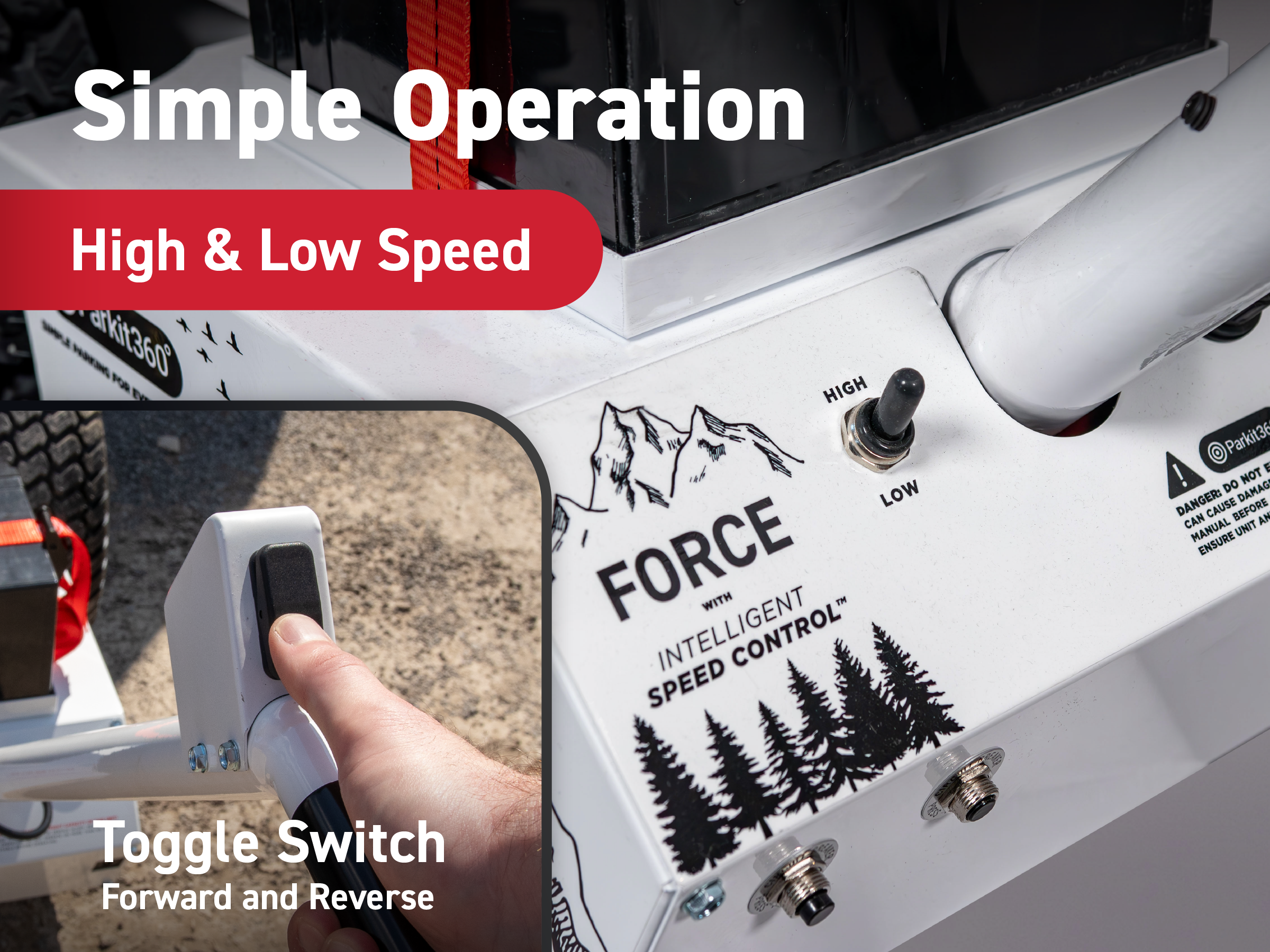

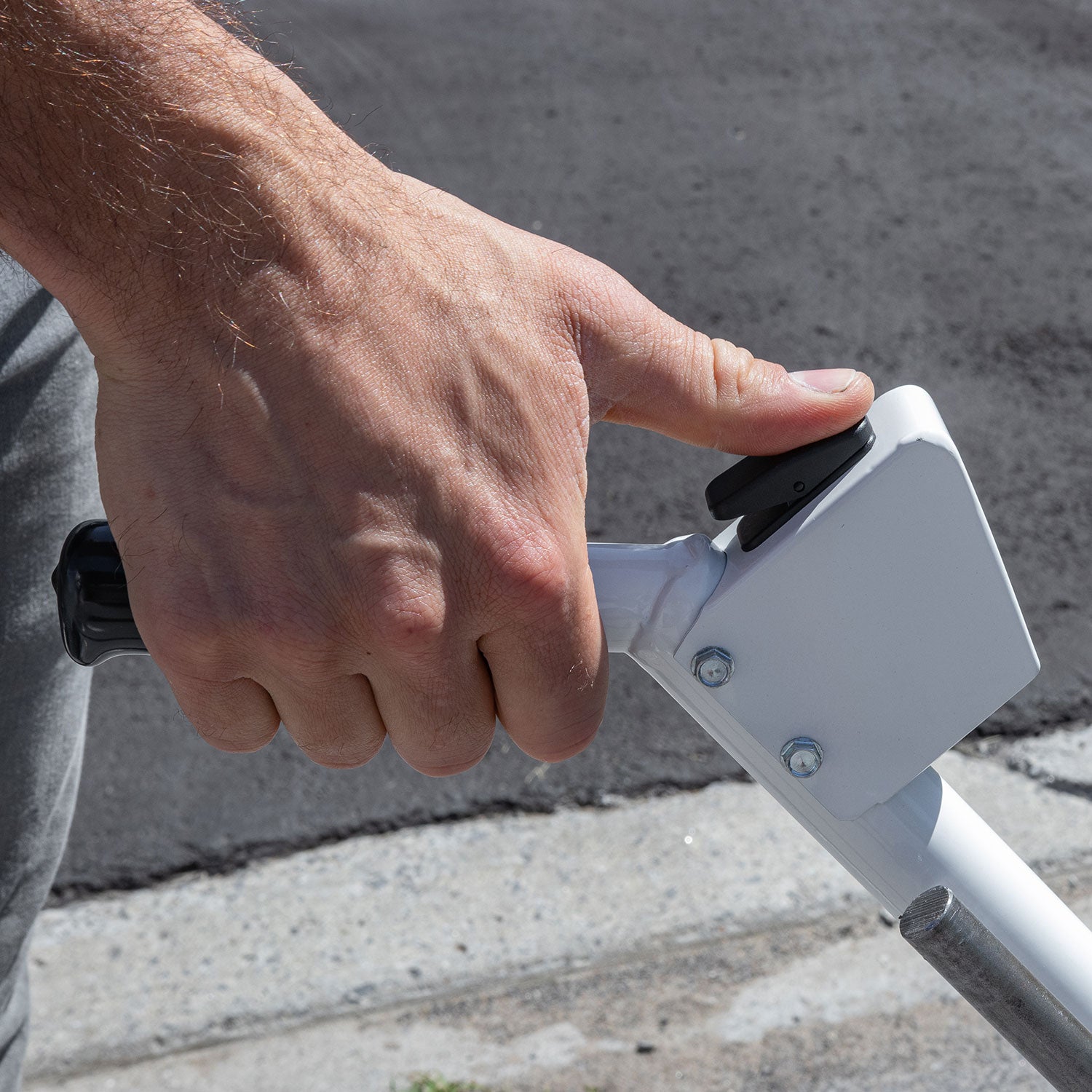

    Intelligent Speed Control™ (ISC)

    Switch between High and Low speed any time for fast or more precise parking. Motor starts and stops gradually to prevent damage to your trailer from sudden stopping, a common issue with competitor’s dollies.

    1.5 HP MOTOR: Custom 1.5 Hp Bosch Motor for the ultimate power and performance.

    FREEWHEEL KNOB: Engages or disengages Motor from Drive to Neutral to move the dolly without power.

    VOLTMETER: Digital Volt Meter that measures and displays power level of battery.

    CIRCUIT BREAKERS: Protect Motor and Smart Brake from power surges.

    BATTERY CHARGER: Battery tender. Activates when the dolly is plugged into a wall socket. Stops charging automatically when full. Disconnect the charger after an overnight charge (10 hrs max).

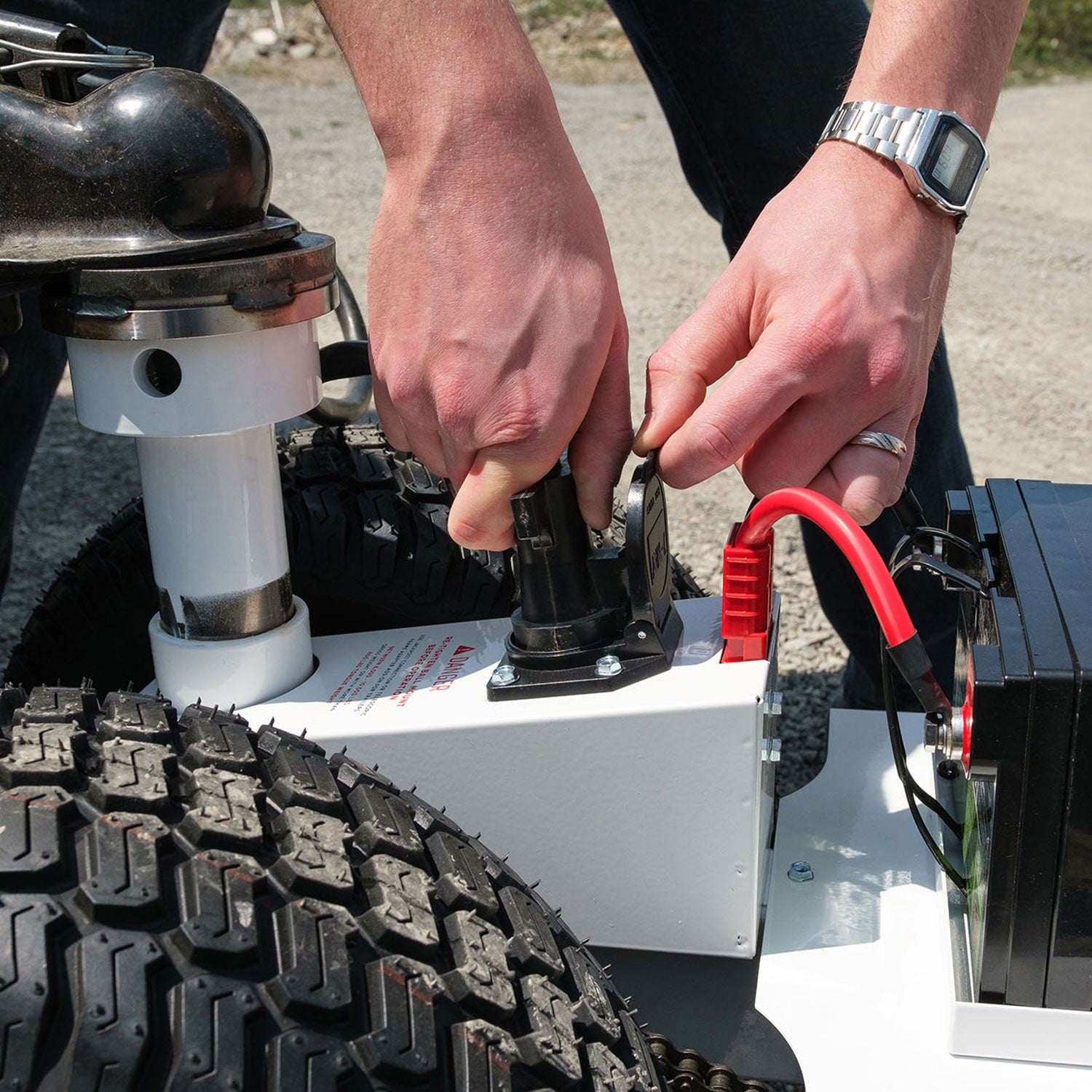

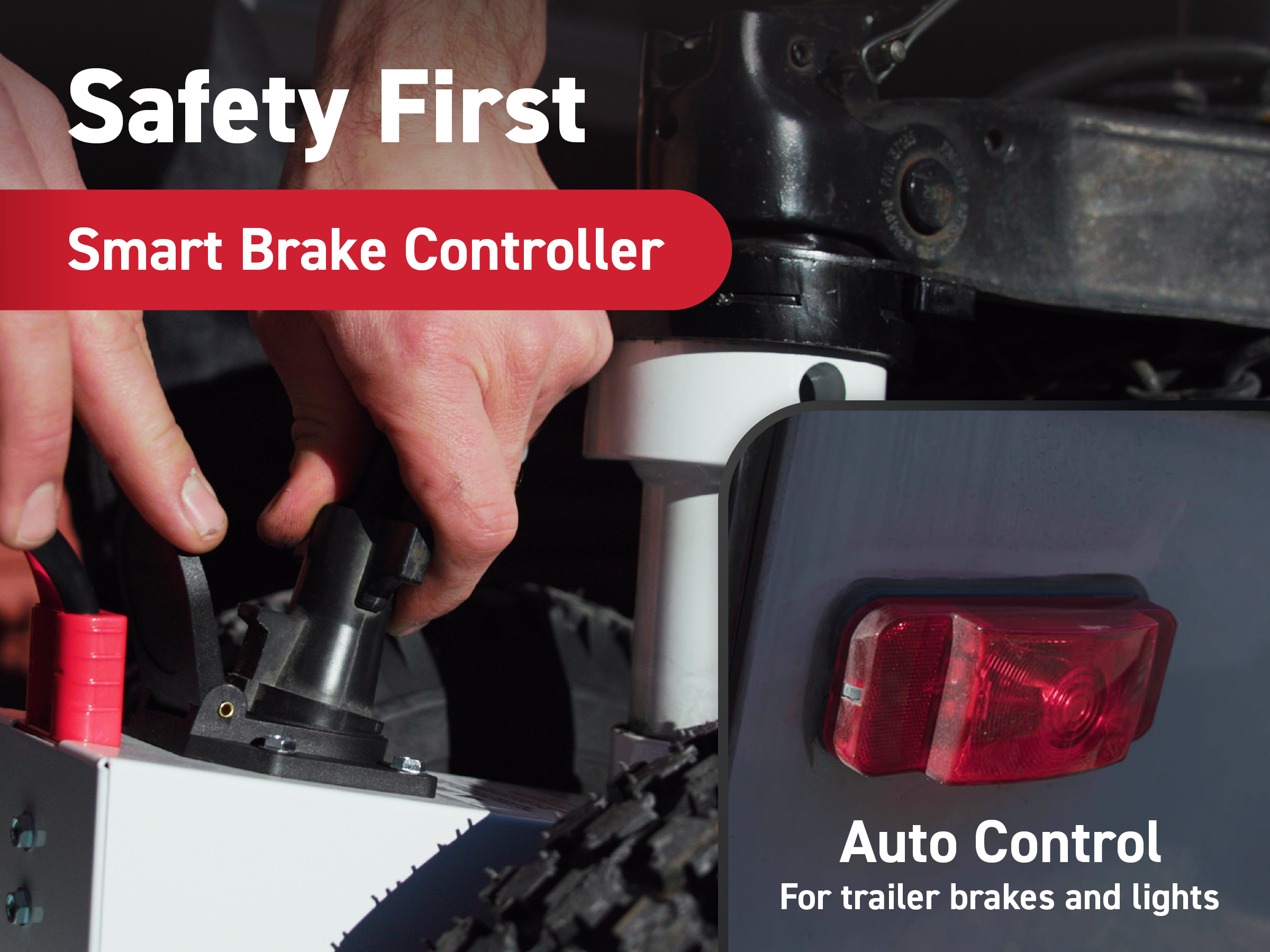

    SMART BRAKE: 7-Way power plug that controls the trailer’s electric or surge brakes.

    SPECIFICATIONS

    DOLLY DIMENSIONS
    5K & 10K: 30" L x 19" W - Approx. 120 lbs (with Battery)


    Receiver Tube Height: Approx. 18" from ground

    SHIPPING DIMENSIONS
    5K & 10K: 38" x 18" x 20" - Approx. 140 lbs (with Battery)

    TIRE PRESSURE: 40 PSI

    BALL MOUNT SIZES: Standard 20", 18" or 24"

    HITCH BALL SIZES: 1 7/8", 2", 2 5/16", 50mm

    (Prices subject to change)



  • Force 5K

    Weight Capacity: 5,000 lbs GVWR

    Tongue Weight: 900 lbs

    6.5" Tires
    20" Ball Mount with Tightening Bar
    Two Hitch Balls: 2" & 2 5/16"
    Thrust Washer (Puzzle)
    U1 Battery Kit
    Includes Battery, Mounting Tray, Strap and 6" Power Cable
    Built-In Battery Charger
    Smart Brake Controller
    Controls Electric & Surge Brakes via 7-Pin plug.

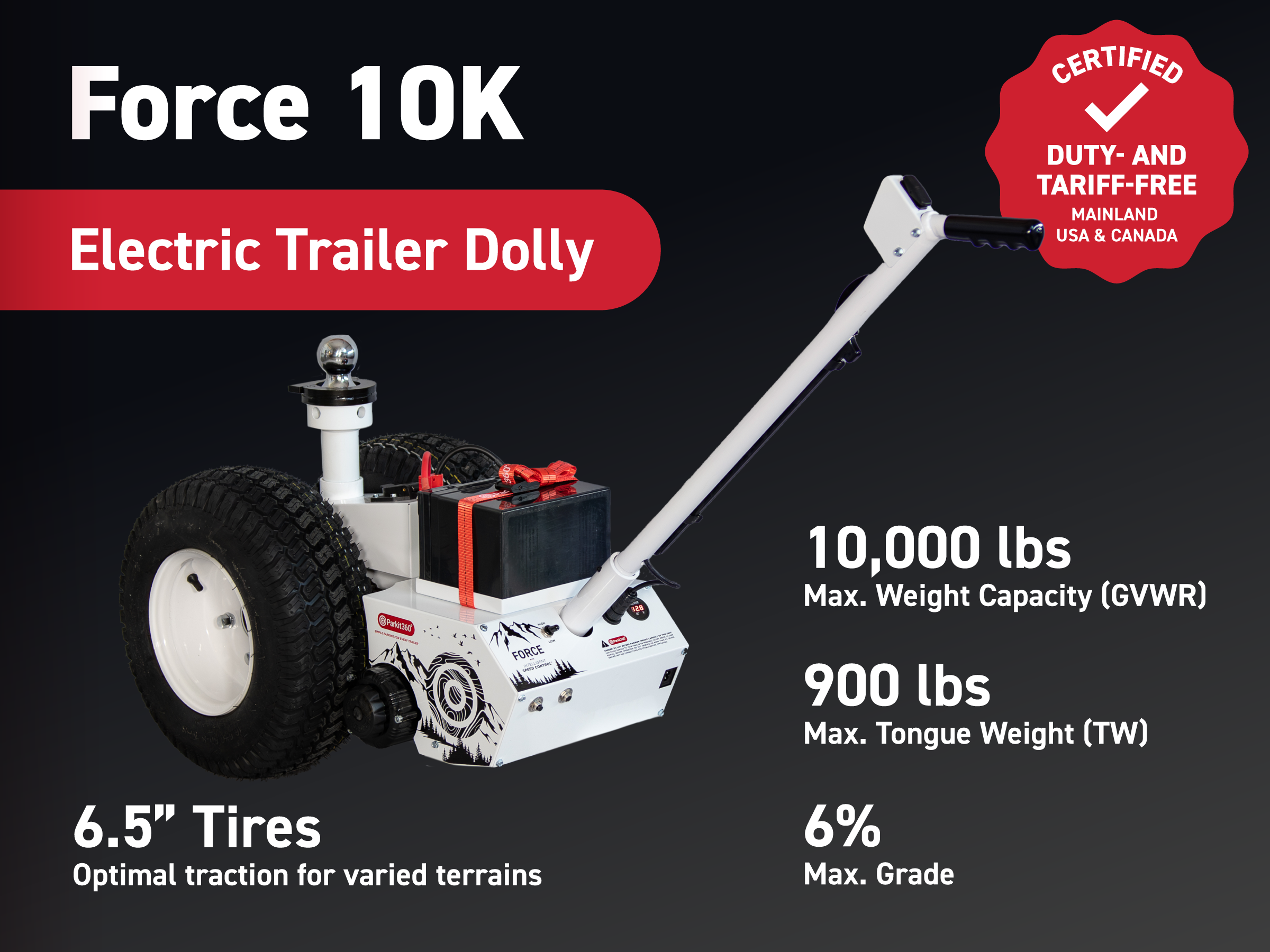

    Force 10K

    Weight Capacity: 10,000 lbs GVWR

    Tongue Weight: 900 lbs

    6.5" Tires
    20" Ball Mount with Tightening Bar
    Two Hitch Balls: 2" & 2 5/16"
    Thrust Washer (Puzzle)
    U1 Battery Kit
    Includes Battery, Mounting Tray and Strap, and 6" Power Cable
    Built-In Battery Charger
    Smart Brake Controller
    Controls Electric & Surge Brakes via 7-Pin plug

  • Ball Mount

    Max Capacity: 10,000 lbs GVWR
    Tongue Weight: 1,000 lbs

    20" Ball Mount Adapter

    Includes Stabilizer System. See Instruction Manual for details:

    • STABILIZING RATCHET STRAPS
    • SPACER PLATE

    15K Fifth Wheel

    Max Capacity: 15,000 lbs GVWR
    Tongue Weight: 3,000 lbs

    Kingpin Measurements should be 48”-52” from ground to bottom of Kingpin Box.

    If measurements exceed 48”-52”, Contact Us before ordering.

    Kingpin Adapter
    (50" from ground to Kingpin Box)
    Universal Stabilizer Bars
    (Kingpin or Landing Leg connection)
    Wireless Remote Controller
    Two U1 Sealed Batteries

    Built-In Battery Charger
    Smart Brake Controller
    (Controls electric & surge brakes via 7-Pin Plug.)
    6.5" Wide Tires

    15K Gooseneck

    Max Capacity: 12,000 lbs GVWR
    Tongue Weight: 1,500 lbs

    This is a custom Item. Please provide us with the height from the ground to the bottom of your hitch before ordering. You can Contact Us with these details, or leave us a note at checkout.

    Gooseneck Adapter
    (Customized to fit your trailer dimensions.)
    Wireless Remote Controller
    Two U1 Sealed Batteries

    Built-In Battery Charger
    Smart Brake Controller
    Controls Electric & Surge Brakes via 7-Pin plug.
    6.5" Wide Tires

  • Delivery Timelines

    Provided that stock is available, our products are usually delivered according to the following timelines:

    Mainland USA
    Force 5K & 10K – 1-3 business days (Backordered)
    Transformer 15K – 3-7 business days
    Carrier 13K – See Pre-order page for details.
    Scout 3K – See Parkit360 distributors for details.

    Canada (depending on location)
    Force 5K & 10K – 1-6 business days (Backordered)
    Transformer 15K – 3-10 business days
    Carrier 13K – See Pre-order page for details.
    Scout 3K – See Parkit360 distributors for details.


    For open box dollies and parts, please allow 5-10 business days for delivery, regardless of your location.

    Delivery timelines are subject to change depending on severe weather or stock shortages.

    Force models ship the same day, as long as they are ordered before 5 p.m. EST.

    All Trailer Dollies will require a signature upon delivery. If you would like to waive this requirement, leave us a note at checkout.

    Note: We cannot ship Trailer Dollies to PO Box addresses.



    Shipping Internationally?

    We'd love to hear from you! Please Contact Us with your order and delivery details and we'll send you a shipping quote.

    Free shipping applies to all orders over $600 that are shipped within the mainland USA and Canada.

    Extra shipping costs will apply to the following locations:

    • Hawaii
    • Alaska
    • Vancouver Island, BC
    • Newfoundland and Labrador
    • P.E.I.
    • Yukon and Northwest Territories

    Questions?

    See our FAQ for more information.

  • Your Trailer Dolly is covered by our 2 Year Parts & Repair Warranty! If your Trailer Dolly fails to perform within this time frame, we will work with you to fix the issue and provide replacement parts. Each 12V U1 Battery is covered separately by a 1 Year Interstate® Battery Warranty. Find a Interstate® Service Location near you.

    (Warranties start from your initial date of purchase.)

  • If you are not completely satisfied with your Trailer Dolly, customers in the Mainland US and Canada can return their unit up to 30 days after receiving their dolly for a refund, minus a flat return shipping cost and restocking fee.

    Parts Only and International Trailer Dolly orders are not eligible for return.

    Read our Full Return Policy
