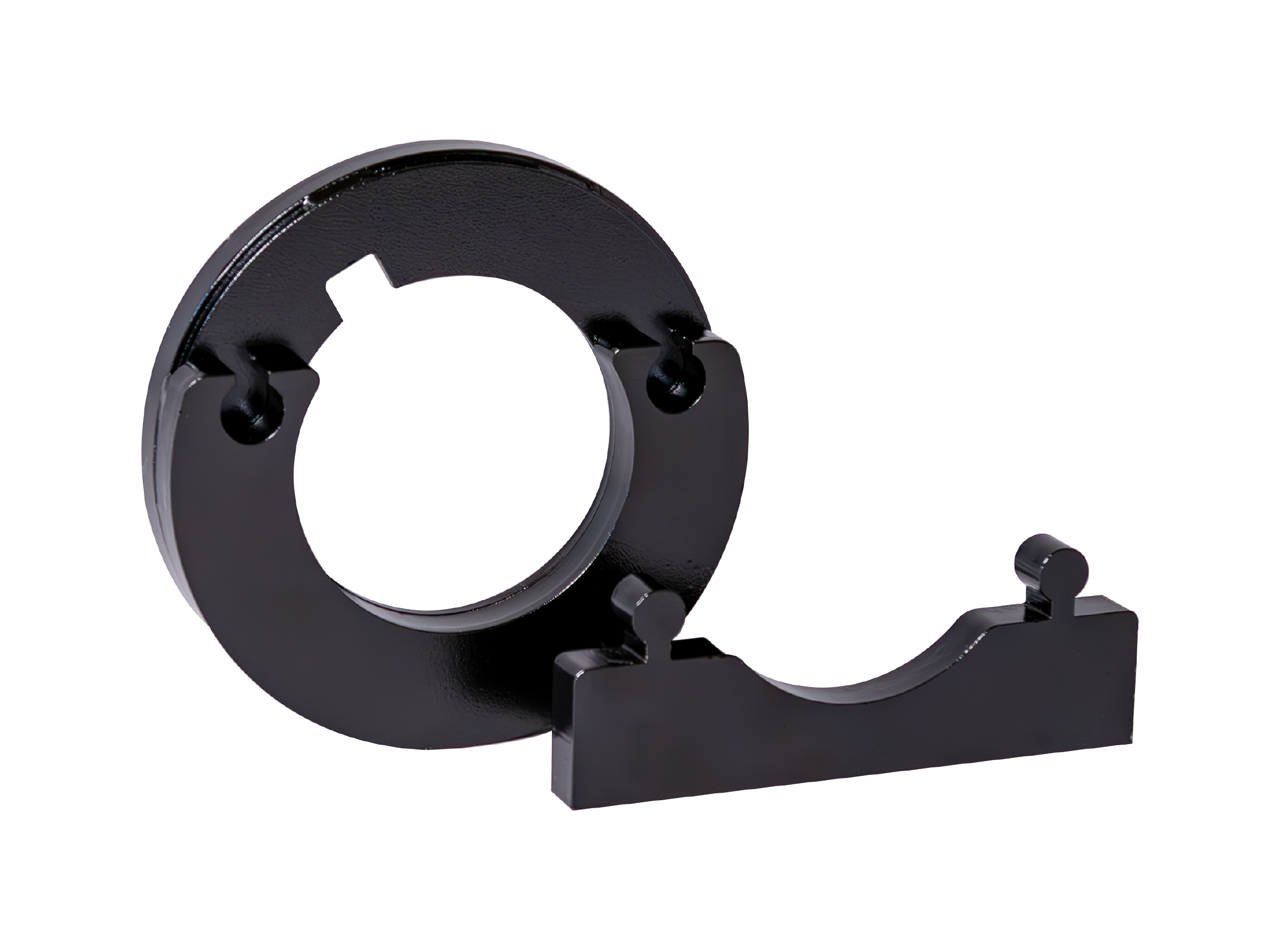

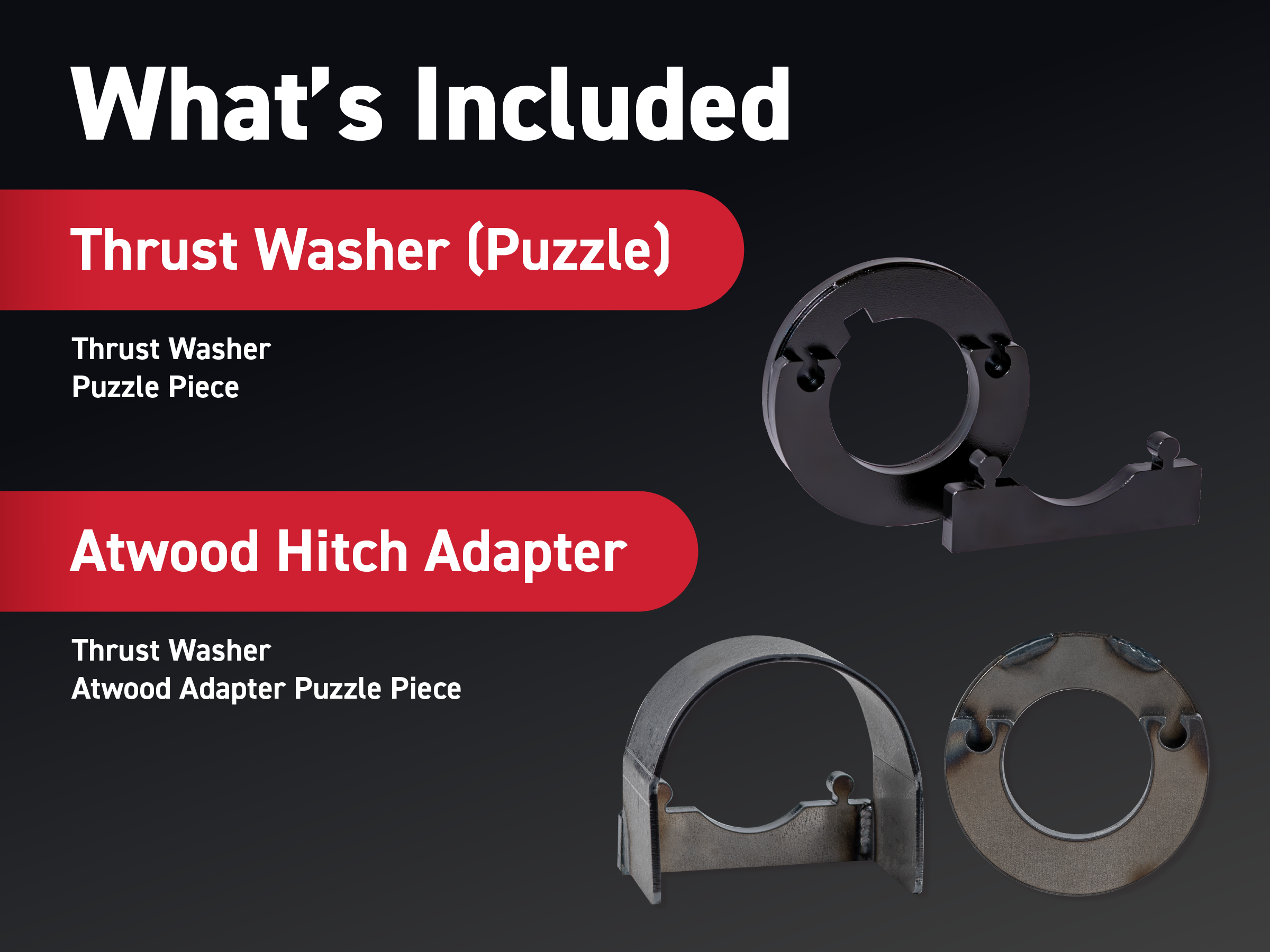

Included with all Ball Mounted Dollies, the Thrust Washer is an optional Adapter designed for Trailers with step down hitches/lips. See Instruction Manual for details. The standard interlocking Puzzle Piece increases the height of the Ball Mount or provides more surface area while tightening.

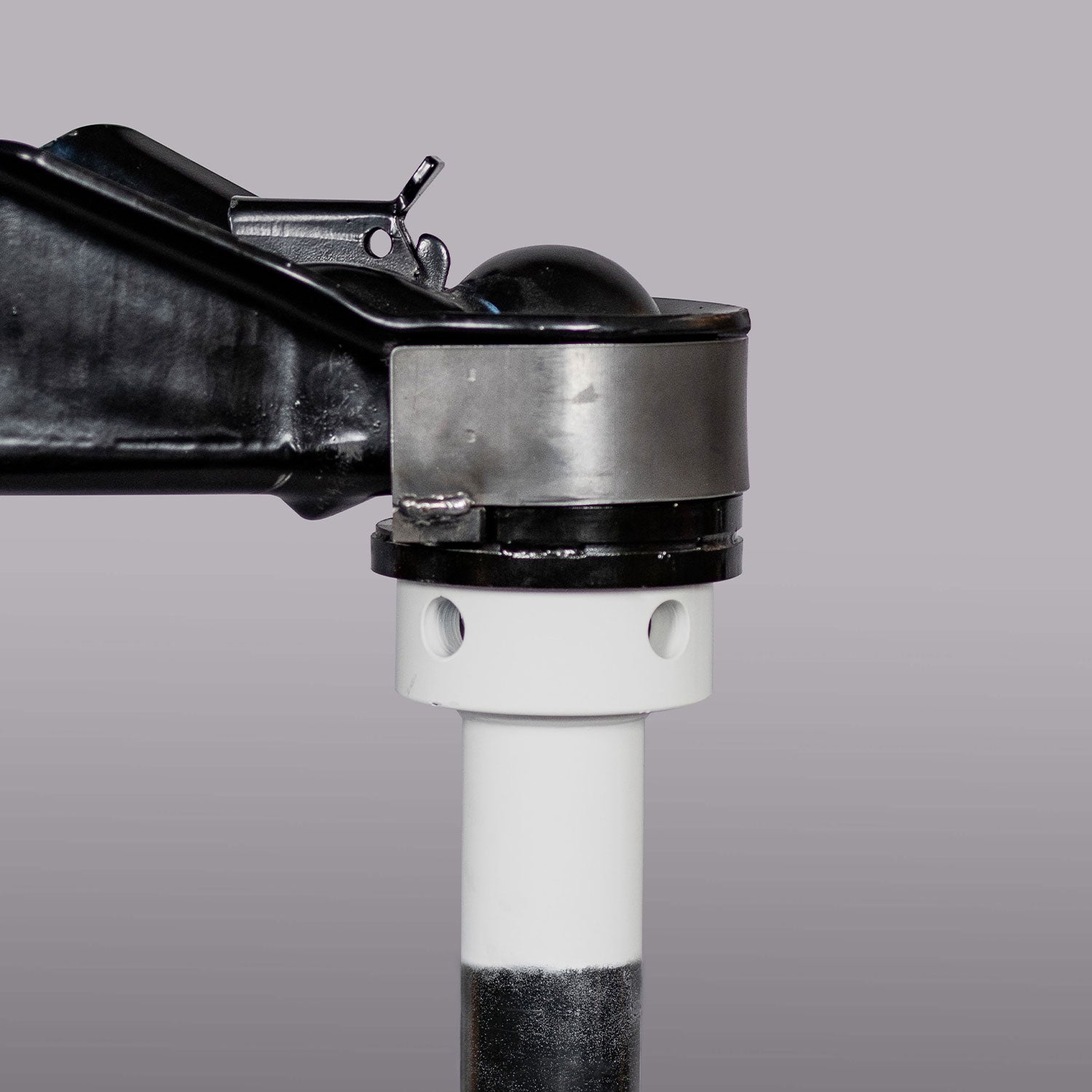

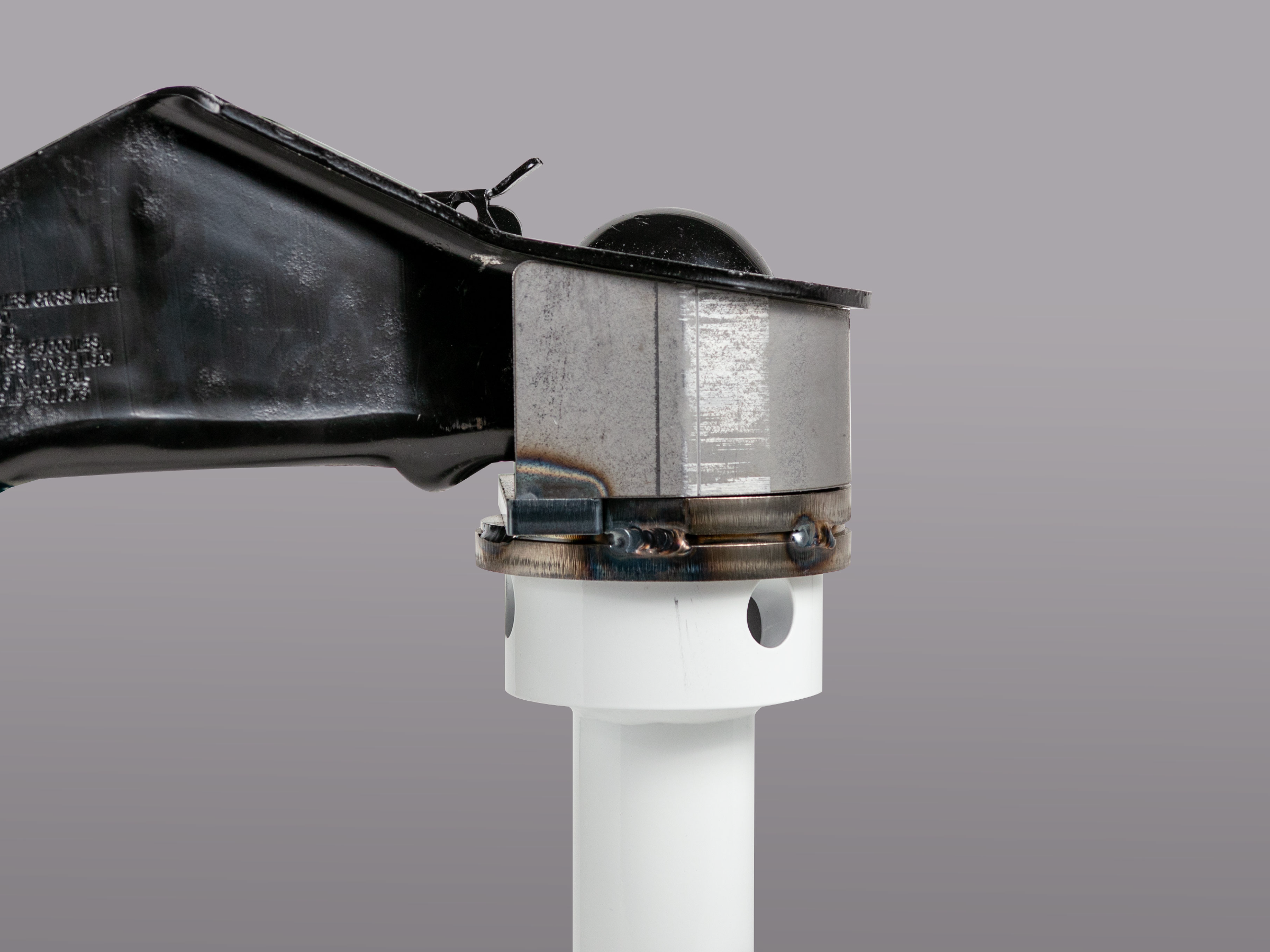

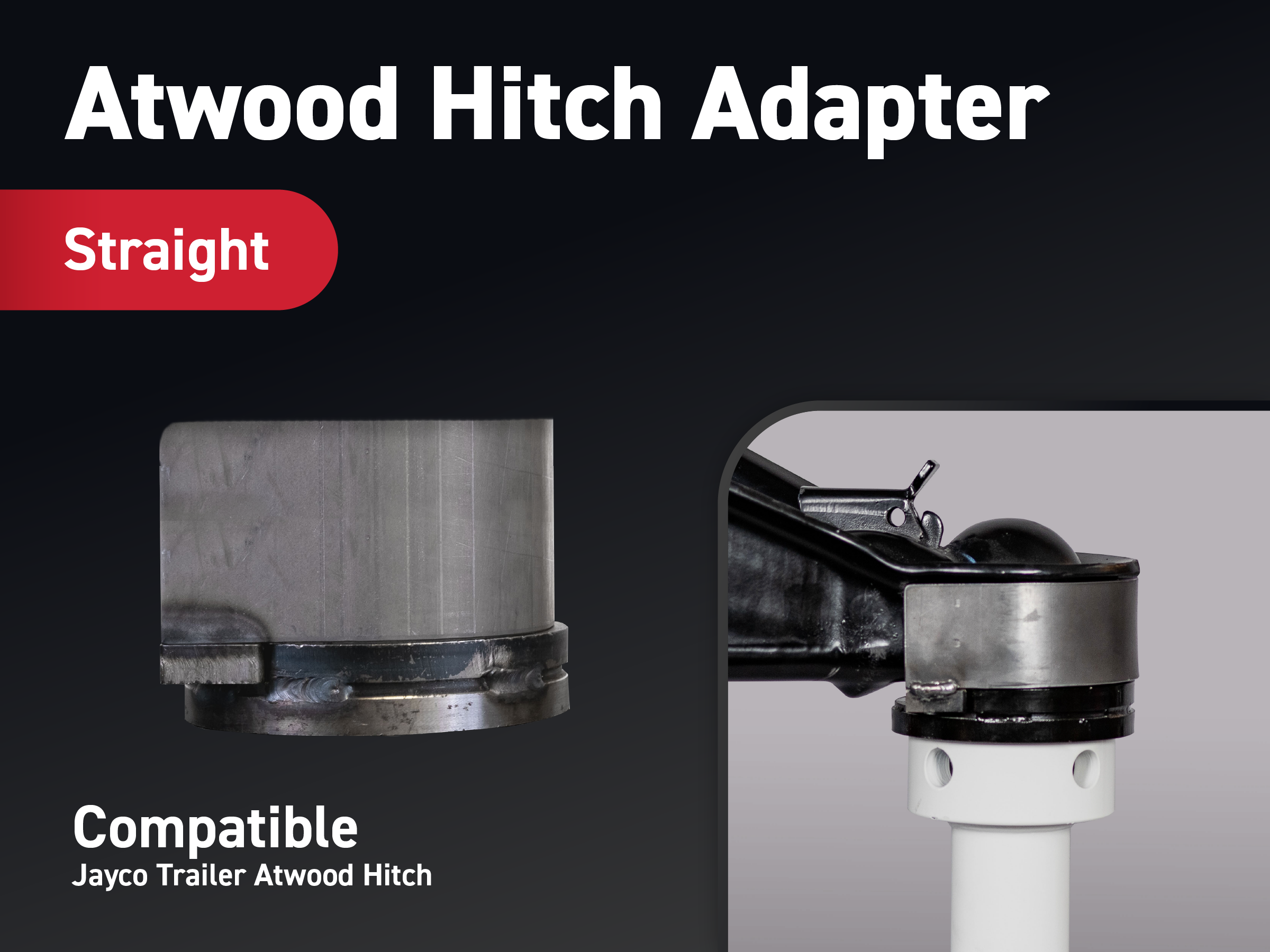

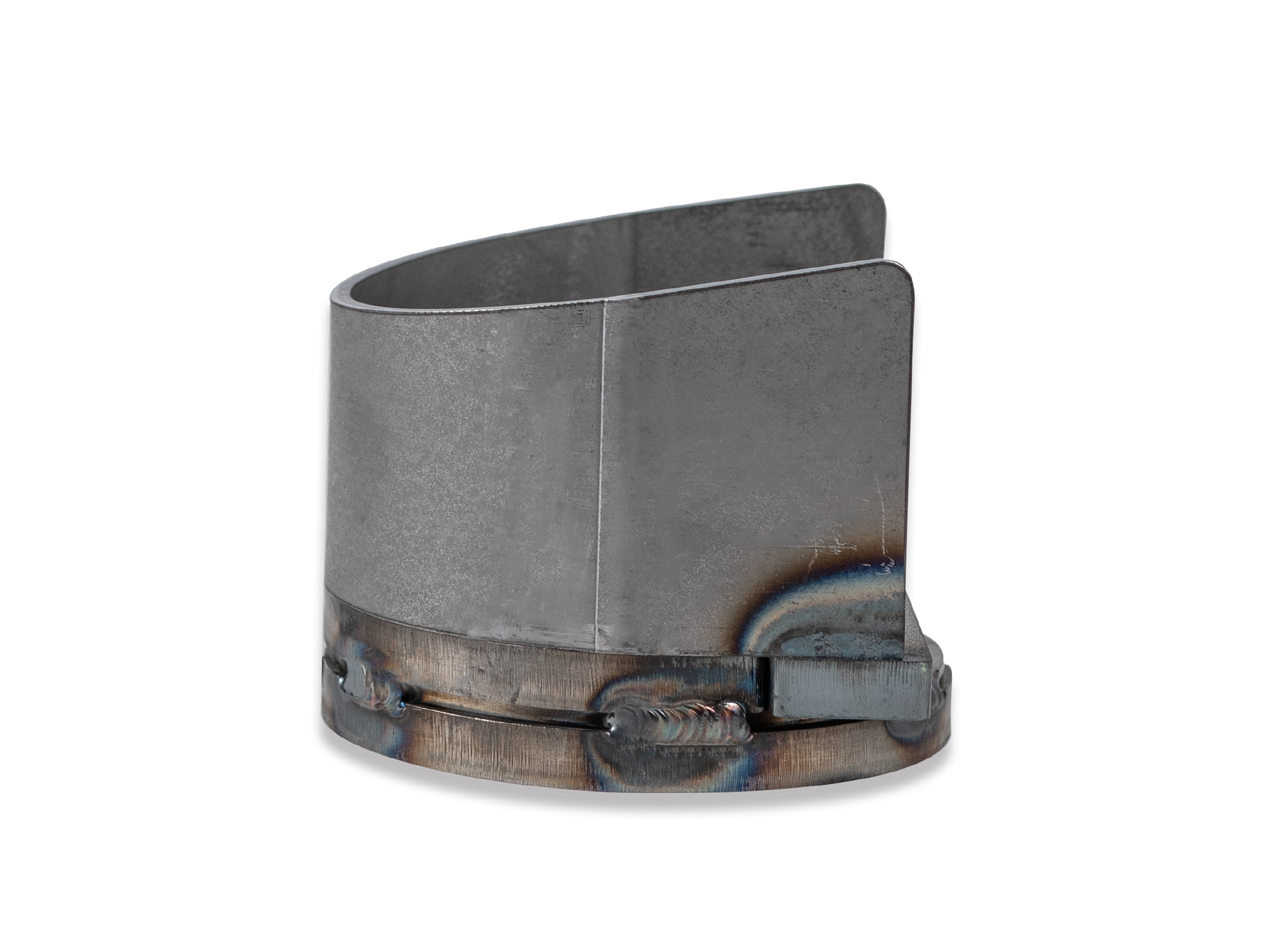

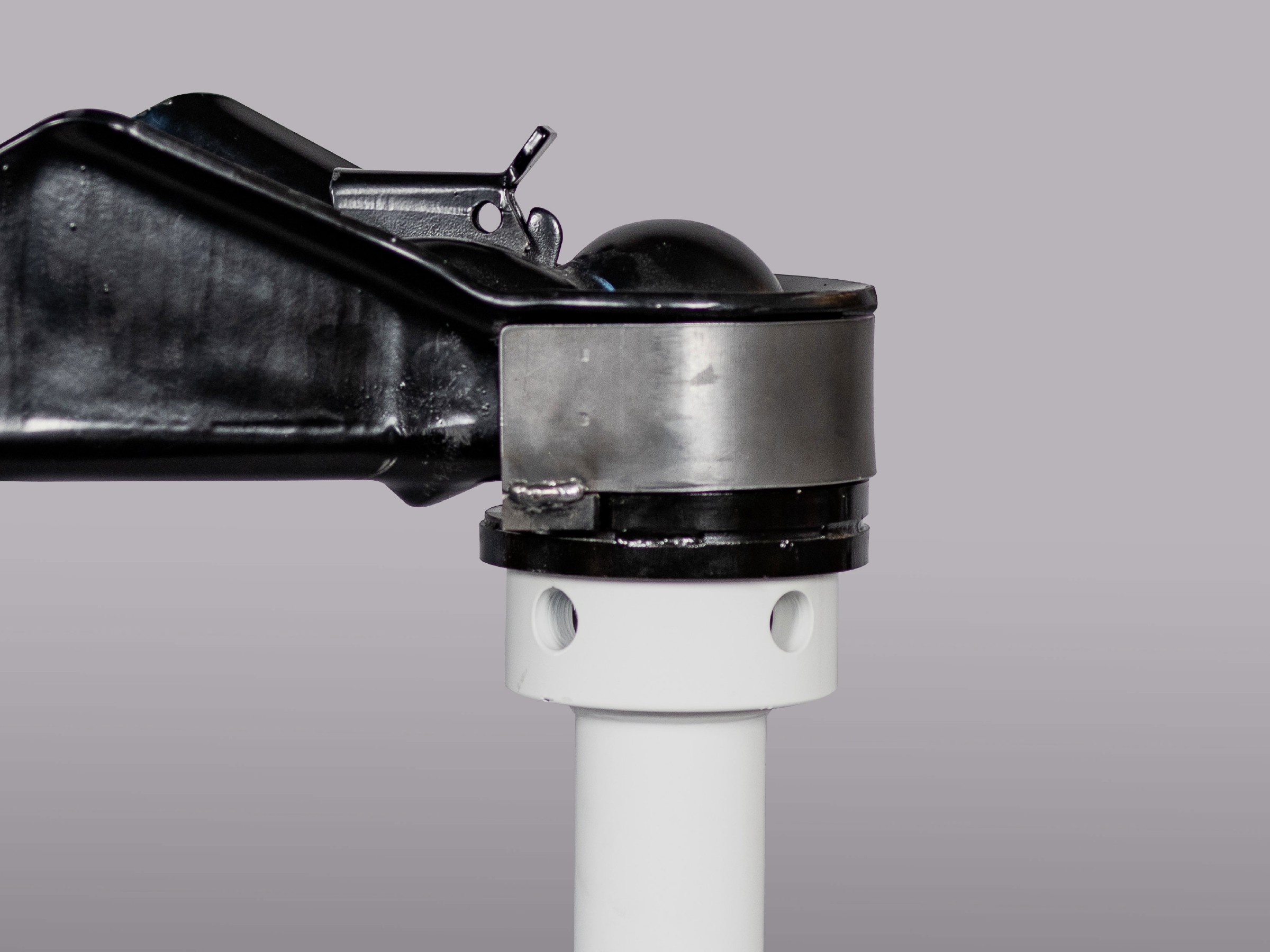

Have a Jayco Trailer with an Atwood Hitch? Switch out the Puzzle Piece for the Atwood Adapter for our most secure connection to date!
What does a proper connection look like?

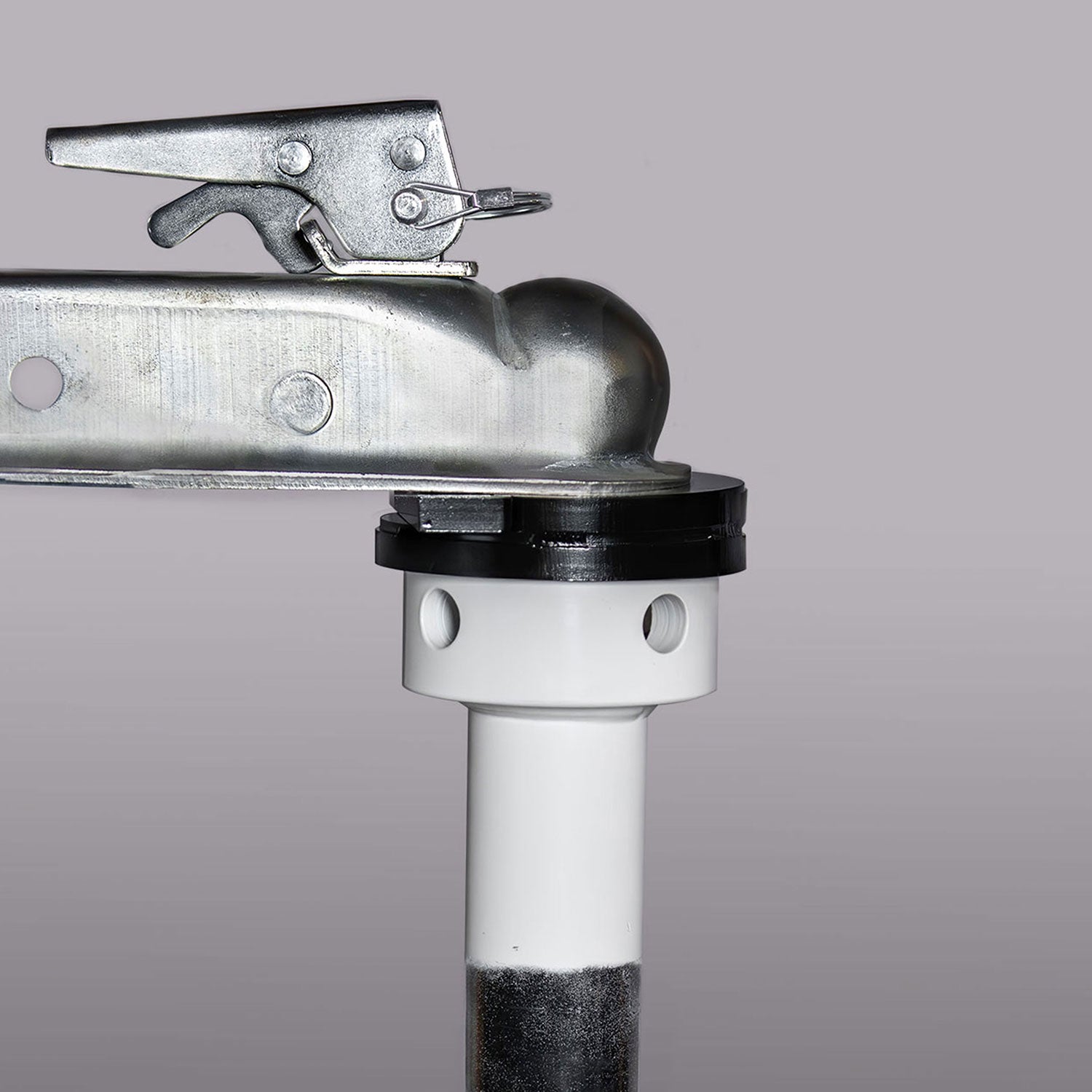

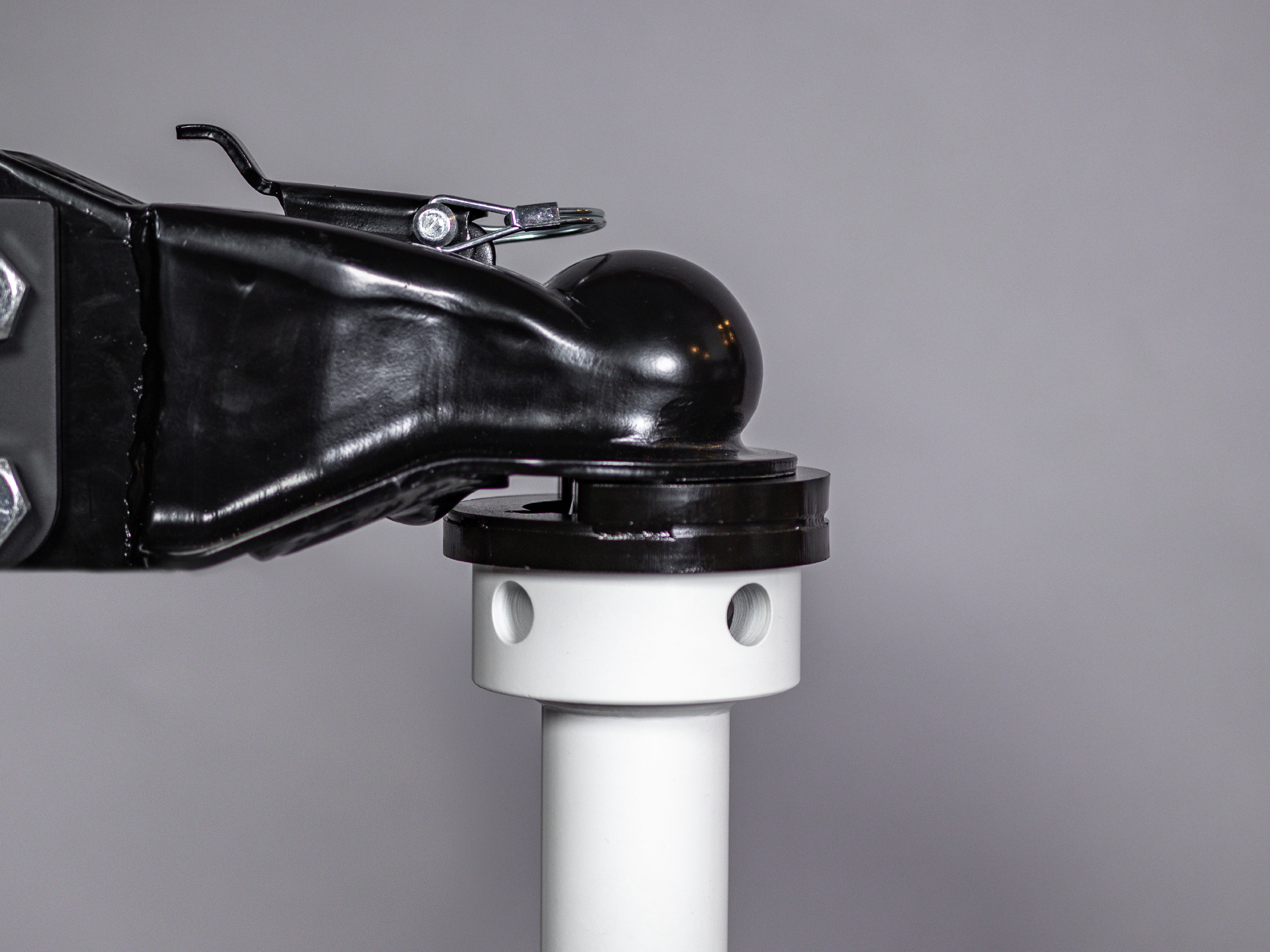

STANDARD CONNECTION The image below shows the connection when the Thrust Washer is not needed:

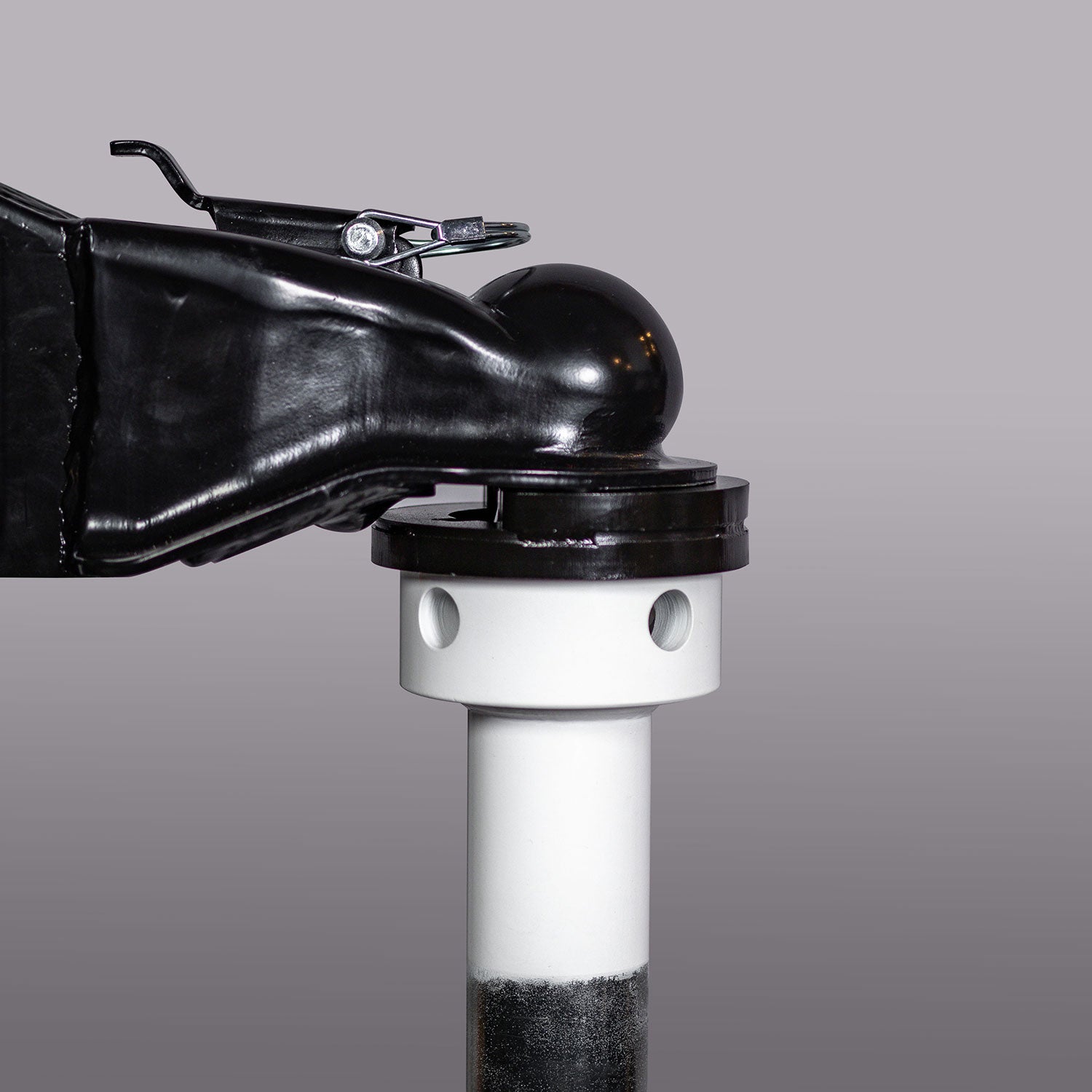

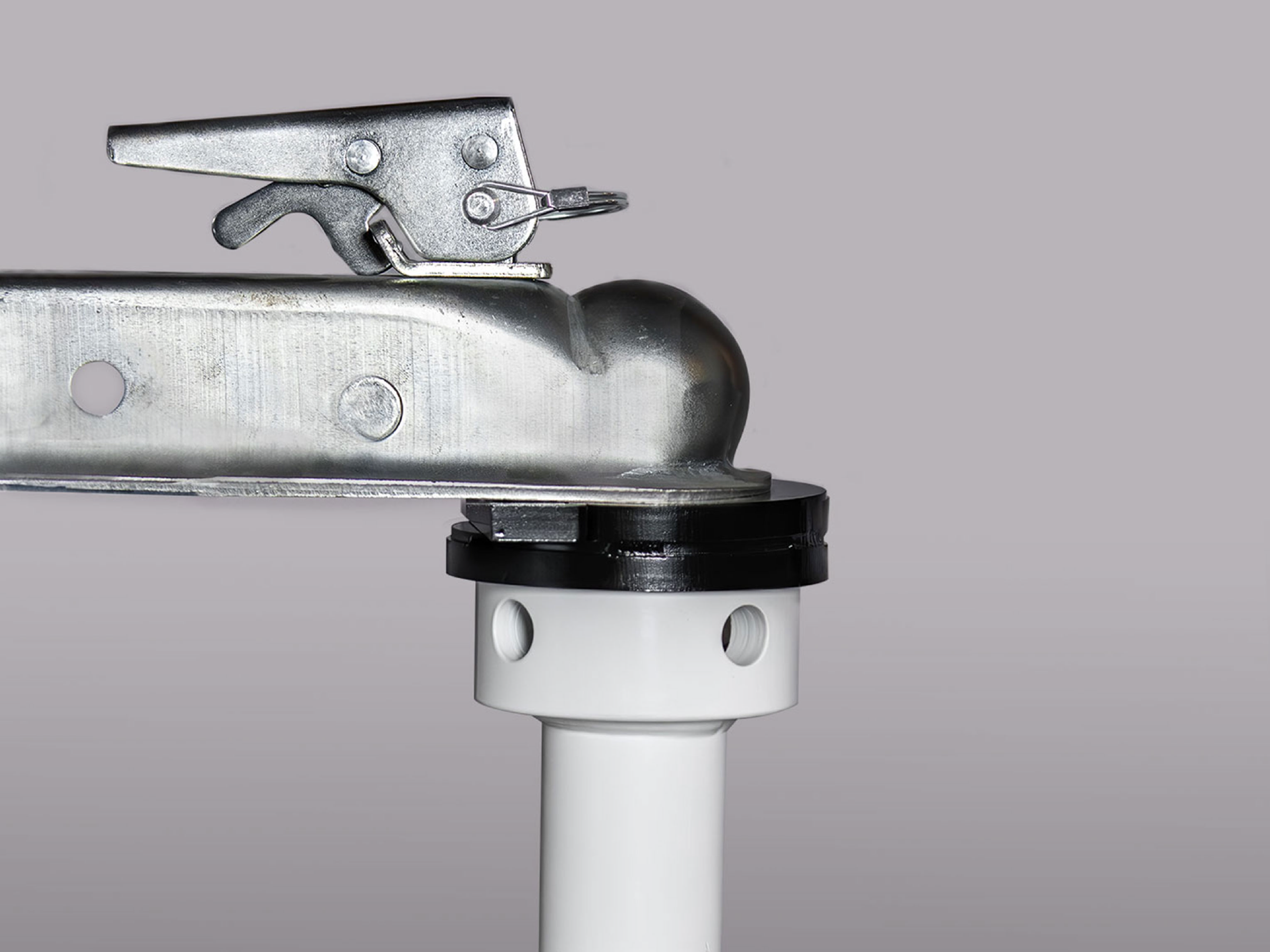

CONNECTION WITH THRUST WASHER The image below shows the connection when the Thrust Washer is needed:
4" Tires 20" Ball Mount with Tightening Bar Two Hitch Balls: 2" & 2 5/16" Thrust Washer (Puzzle) 20" Battery Cable Connect to a Dolly Mounted Battery* 80" Battery Cable Connect to your Trailer's Existing Battery Set-Up*
*This Package does NOT include Battery or Battery Box.
Max Capacity: 15,000 lbs GVWR Tongue Weight: 3,000 lbs
Kingpin Measurements should be 48”-52” from Ground to bottom of Kingpin Box.
If measurements exceed 48”-52”, Contact Us before ordering.
Kingpin Adapter (50" from Ground to Kingpin Box) Kingpin Box Stabilizer Bars (Landing Leg Version Available Upon Request) 20" Ball Mount Adapter (Custom sizes available upon request.) 3 Hitch Balls: 1 7/8”, 2” & 2 5/16” Wireless Remote Controller Two U1 Sealed Batteries Built-In Battery Charger Smart Brake Controller (Controls Electric & Surge Brakes via 7-Pin plug.) 6.5" Wide Tires
Max Capacity: 12,000 lbs GVWR Tongue Weight: 1,500 lbs
This is a Custom Item. Contact Us with your trailer measurements before ordering.
Gooseneck Adapter (Customized to fit your Trailer Dimensions.) 3 Hitch Balls: 1 7/8”, 2” & 2 5/16” Wireless Remote Controller Two U1 Sealed Batteries Built-In Battery Charger Smart Brake Controller Controls Electric & Surge Brakes via 7-Pin plug. 6.5" Wide Tires
