TDD 3500 Trailer Dolly
Park small campers and utility trailers with Trailer Dolly Depot’s TDD3500 electric trailer mover. Suitable for ball-mounted trailers up to 3,500 lbs Gross Weight and 350 lbs Tongue Weight. With a variable speed thumb throttle, move up to 1.5 mph in either forward or reverse to park with confidence and efficiency.

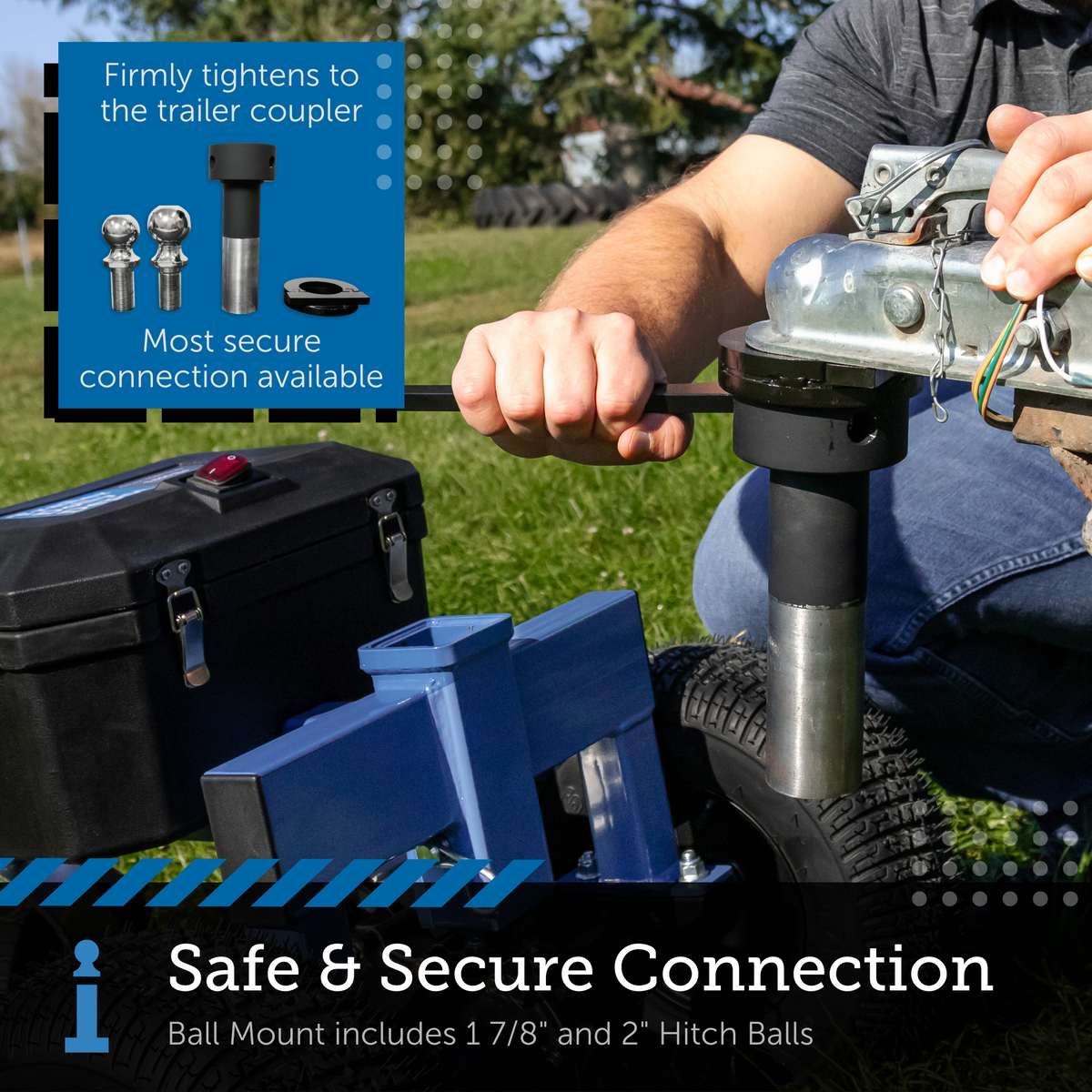

A special ball mount adapter provides a secure connection to prevent tipping while connected to your trailer. Interchangeable hitch balls come in 1 ⅞” and 2” diameters, compatible with most small trailers. The dolly includes two pre-installed rechargeable 12V lead acid batteries, boasting 9Ah of use.

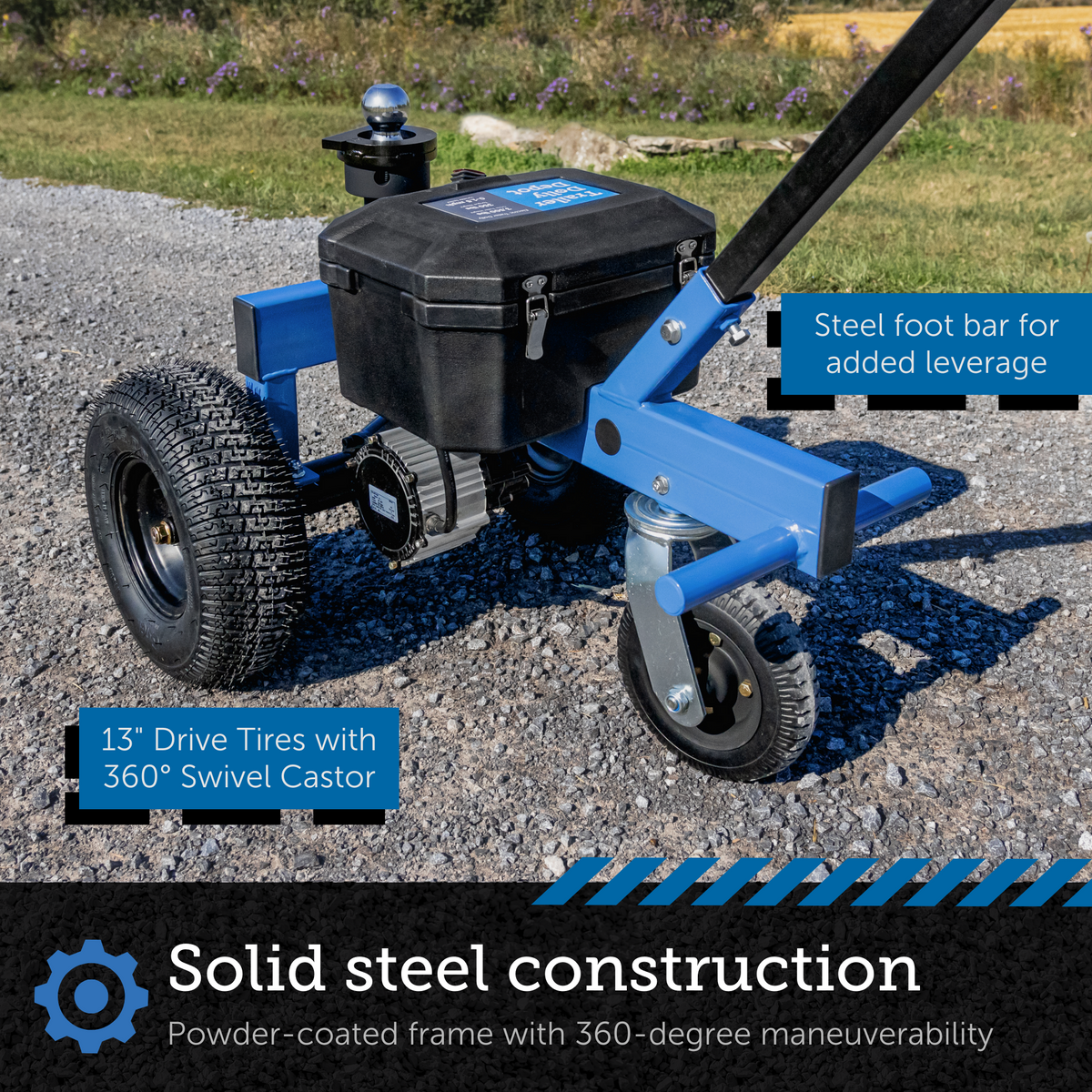

Maneuvering the dolly is easy with the 13-inch drive tires, offering grip on multiple surfaces, including concrete, asphalt, and packed dirt. The rear caster wheel provides 360-degree swivel and additional stability, while the foot bar offers more leverage.
The frame is a single, solid piece made from heavy-duty, heat-treated steel. The sturdy square tubing is then powder coated for a sleek and durable finish that will hold up to use and weather exposure.
Features
Solid steel construction
Single piece of powder-coated steel.

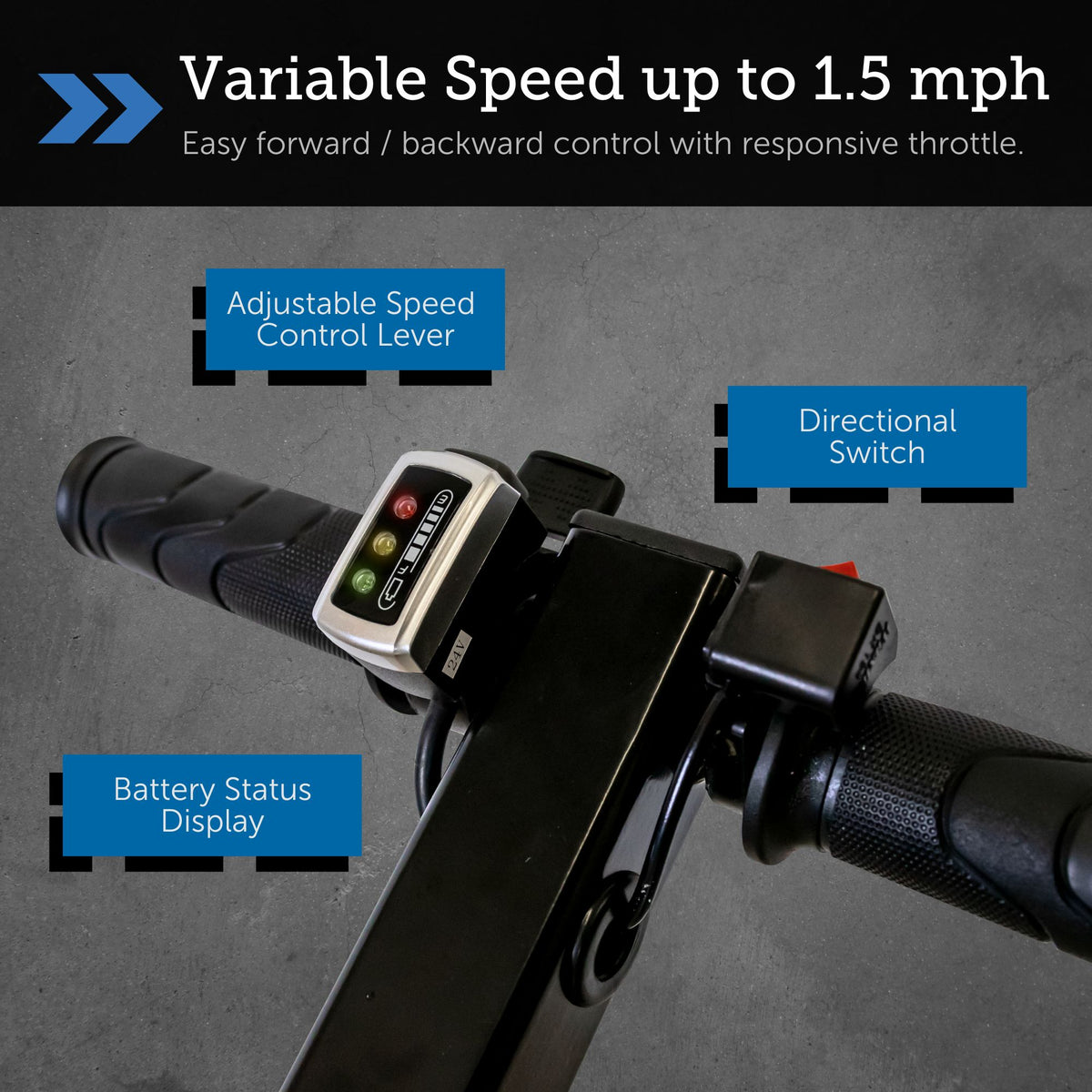

Variable-speed motor
800 watt brushless motor with adjustable speed up to 1.5 mph via control lever.
Battery status display
Shows battery level while in operation. Button controls power to handle accessories.
Directional switch
Switch that controls operational direction.
Overload protection
Automatically shuts down when overloaded.
12V sealed lead acid batteries
Pre-installed rechargeable batteries with 9Ah.
13-inch drive tires
Provide grip on multiple surfaces including concrete, asphalt, and packed dirt.
8-inch third wheel
Rear caster wheel with 360 degree swivel.
Foot bar
Get extra leverage for moving and steering.
Secure ball mount connection
Tightens to the coupler for a stable and secure hold.
Technical specifications
Capacity: 3,500 lbs GVWR, 350 lbs tongue weight

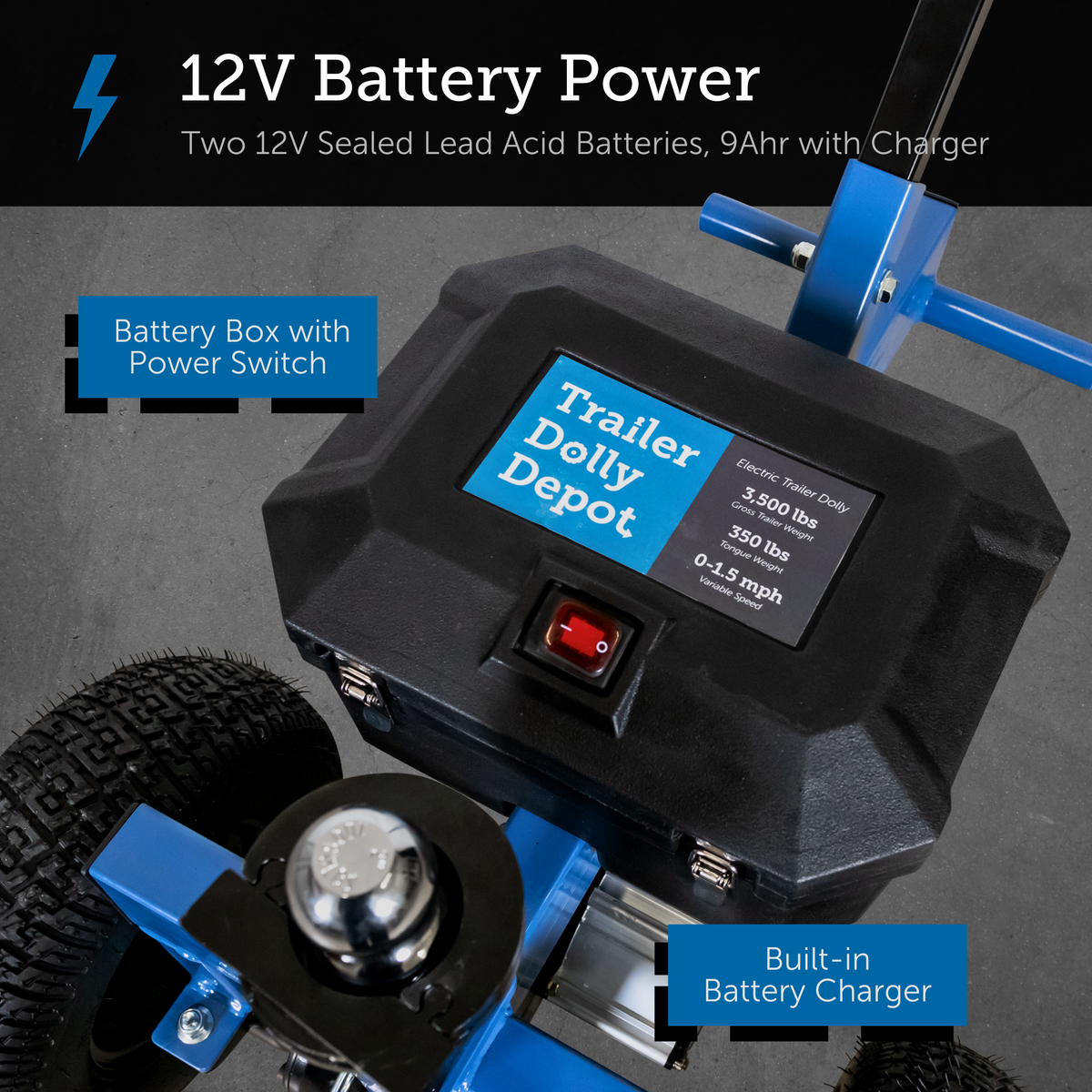

Power supply: Two 12V Sealed Lead Acid Batteries, 9Ahr
Hitch ball: 2”, 1 7/8”
Assembled weight: 96 lbs

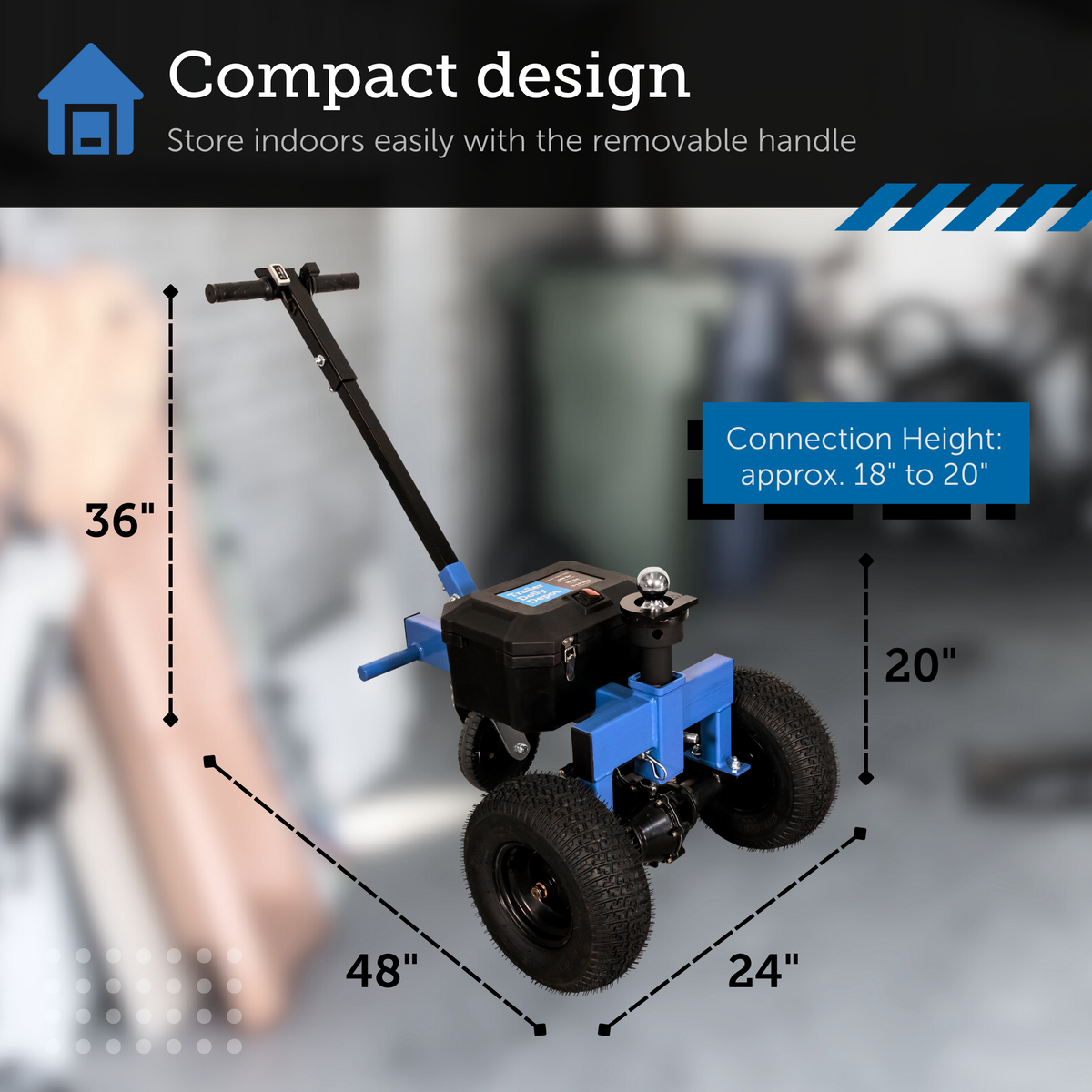

Assembled dimensions: 48” L x 24” W x 36” H
Product number: 628068124010
Storage & Maintenance
Keep the tire pressure at 30 PSI.
Lights on the speed controller indicate battery level. These will only illuminate during operation.
Keep the dolly in a cool, dry place, where it is protected from the elements (such as a garage).
Will it work for me?
The TDD3500 Electric Trailer Dolly confidently and safely moves trailers up to 3,500lbs GVWR and/or trailers with up to 350lbs of tongue weight. If your trailer is within that range, you are good!
Move trailers on firm, compact gravel, dirt, asphalt or pavement. Loose surfaces will cause the dolly to lose traction.
Connect the TDD3500 to any standard 2-inch or 1-7/8 inch ball coupler. Larger ball sizes, and other hitch types (pintle, atwood, spring-loaded, etc.) are not supported
FAQ
Read informative articles about our trailer dollies and accessories.
Do you offer free shipping?
For purchases over $600 USD that are shipping within mainland USA and Canada, shipping is free.
Something is broken, or isn’t working right. How can I get it fixed?
If you have any issues with any of our products, please contact our service team.
You can reach us by phone between 8:30 a.m. and 5:00 p.m. EST, Monday to Friday at 1-888-926-5517 or, by email at support@parkit360.com.
To aid in the troubleshooting process, please attach some photos and/or videos that show the issue at hand.
How should I store my trailer dolly?
Keep your trailer dolly indoors, such as in a garage or shed, especially during long-term storage.
While the frame and body are made of durable, powder-coated steel, the internal electronics or battery could become damaged after long-term exposure to rain or snow.
