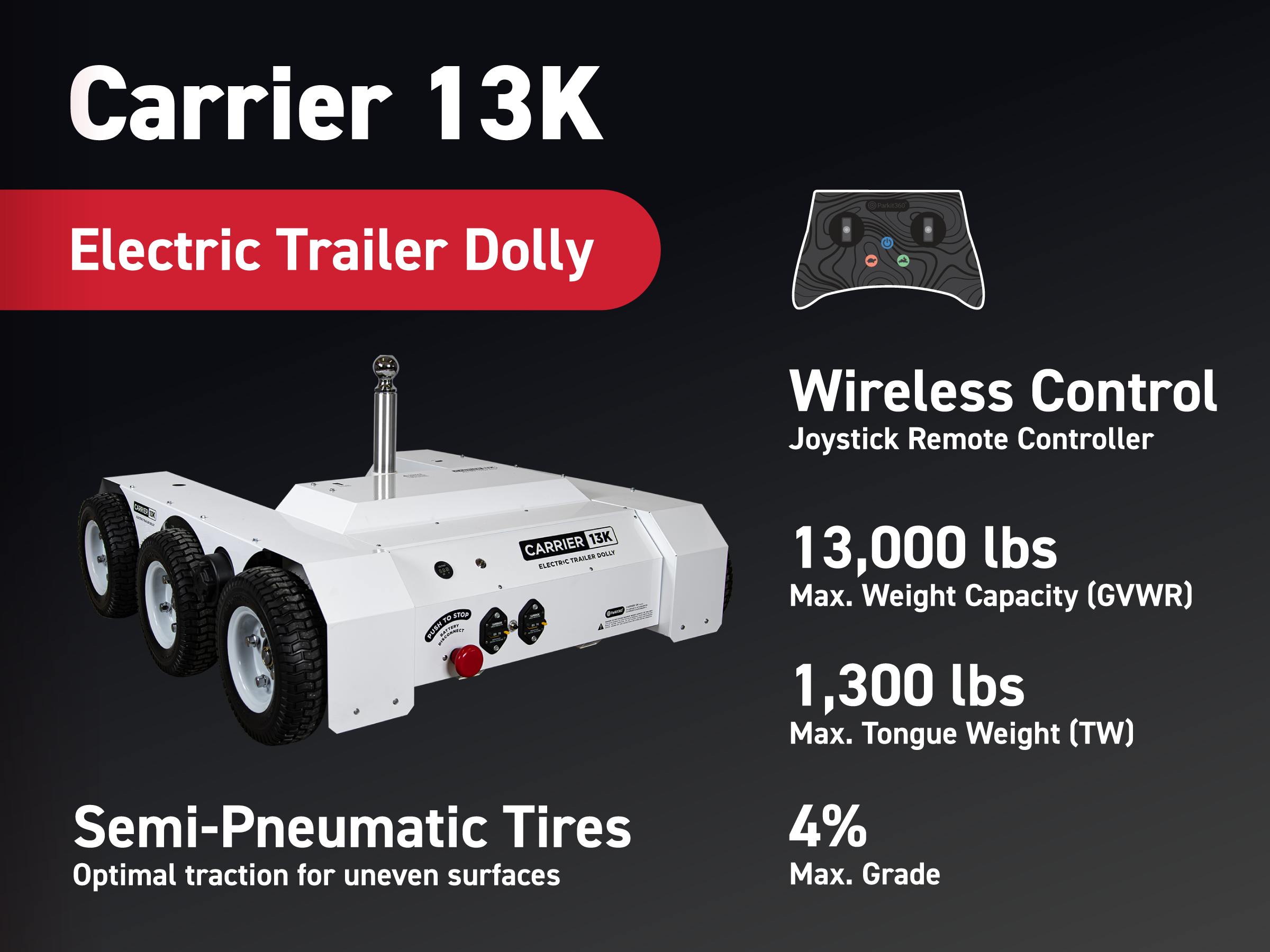

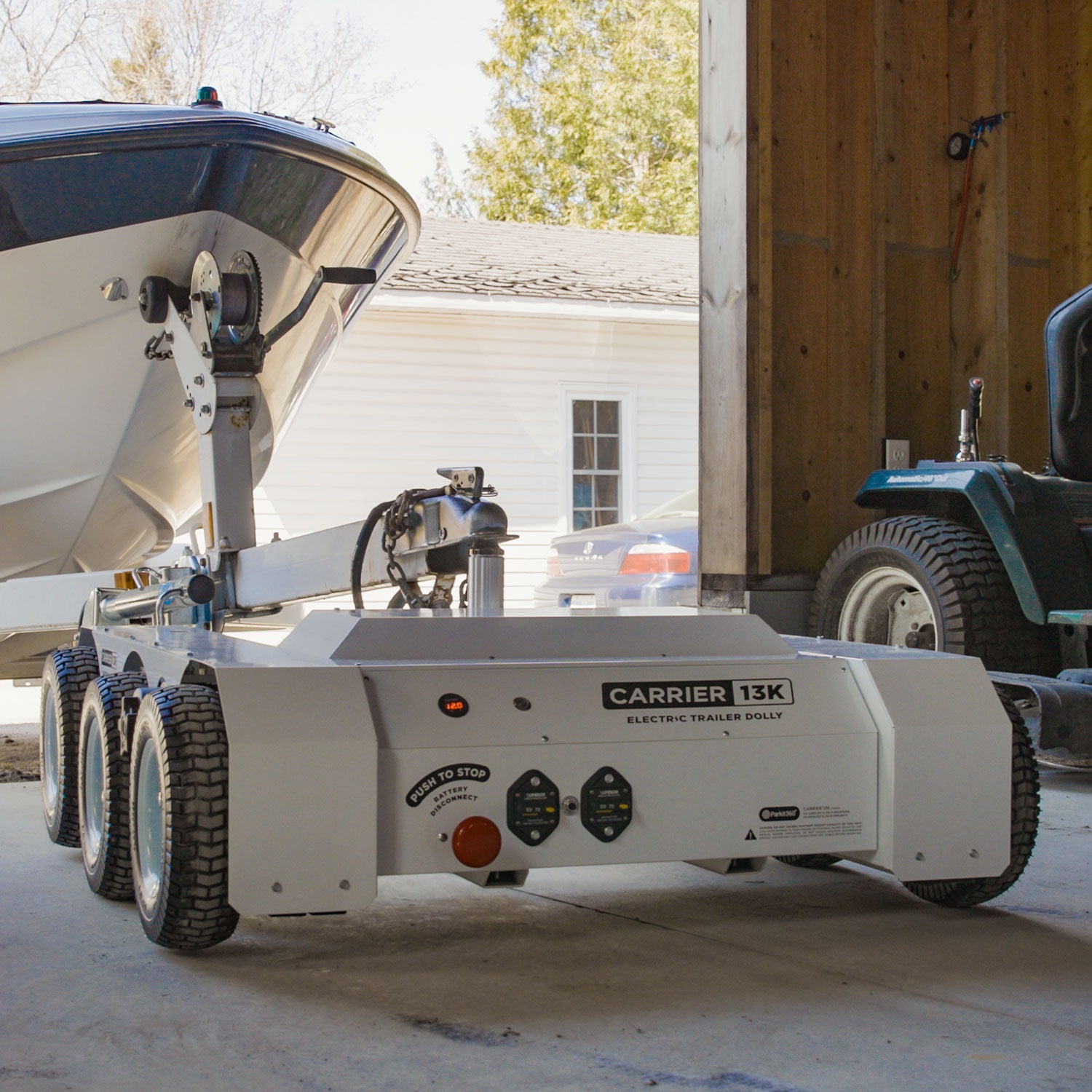

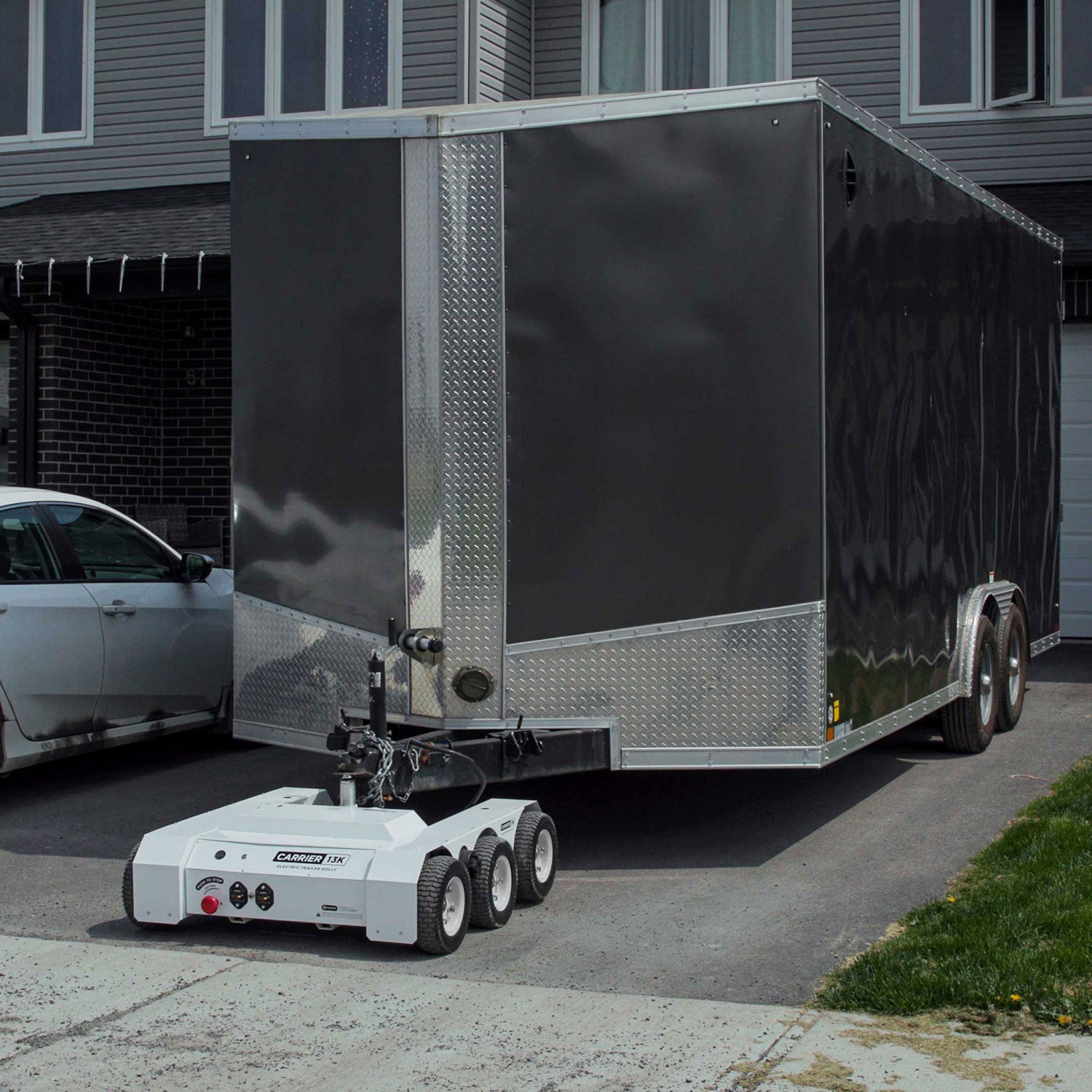

The All-New Carrier Trailer Dolly - Just Drop & Go!

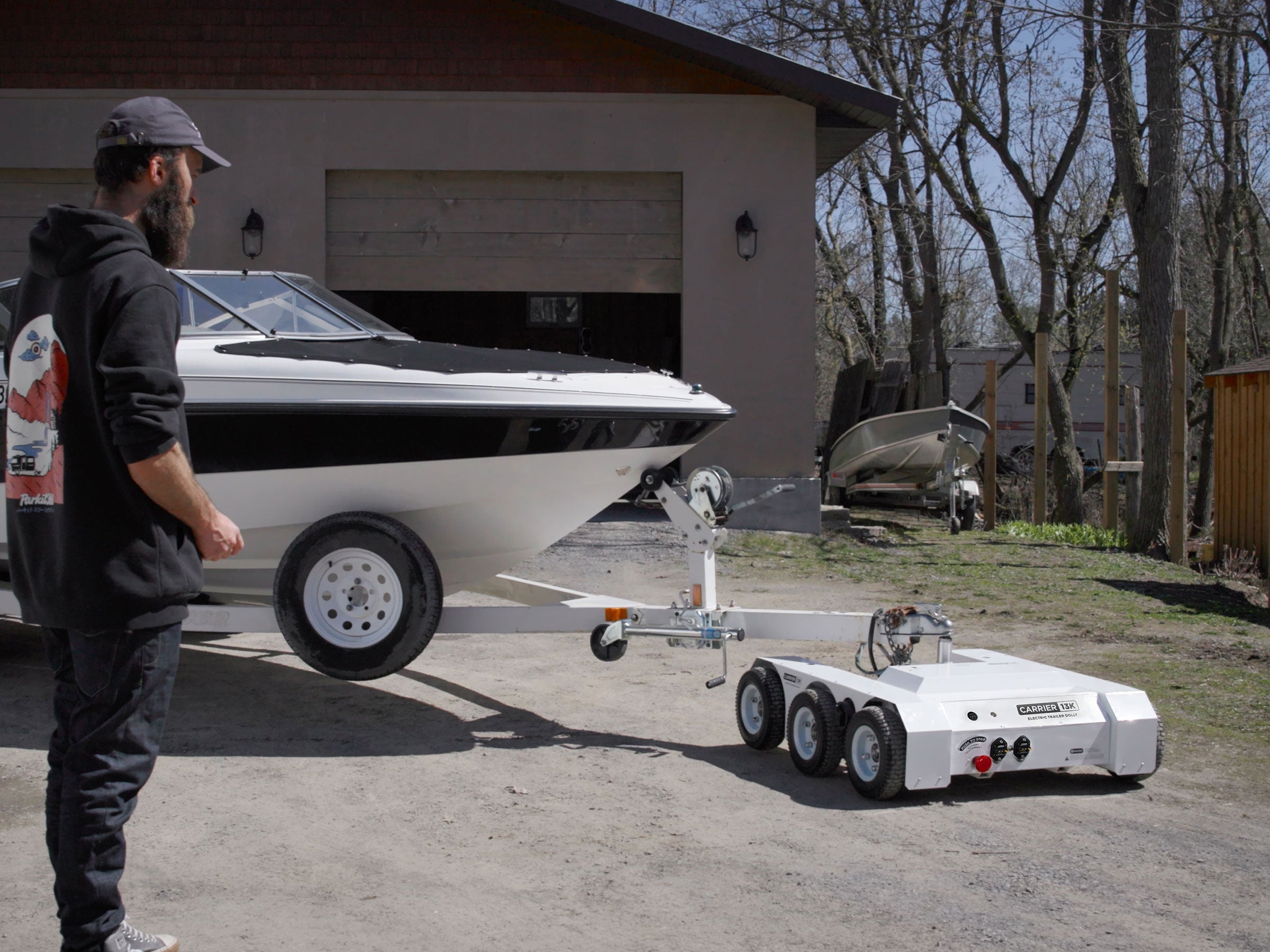

With our new Drop & Go hitch adapter, connecting to your trailer has never been easier! Just lower the trailer onto the dolly, lock the hitch and go - no tightening required! Get Intelligent Speed Control and Two 12V U1 Interstate® Batteries standard. Move up to 13,000 lbs with our Wireless Controller for Safe, Precise Parking!
Drop & Go Hitch Adapter (18" - 20")
Max Capacity: 13,000 lbs GVWR
Tongue Weight: 1,300 lbs
Simply lower your trailer onto the adapter, and go! For heavier Ball Mounted Trailers. This package includes:
- 2 Hitch Balls: 2" , 2 5/16"
- Locking Pin with Clip
Ball Mount Hitch Adapter (20")
Max Capacity: 10,000 lbs GVWR
Tongue Weight: 1,000 lbs
- 2 Custom Hitch Balls: 2" , 2 5/16" (With Welds)
- Thrust Washer & Tightening Bar
DOLLY FEATURES

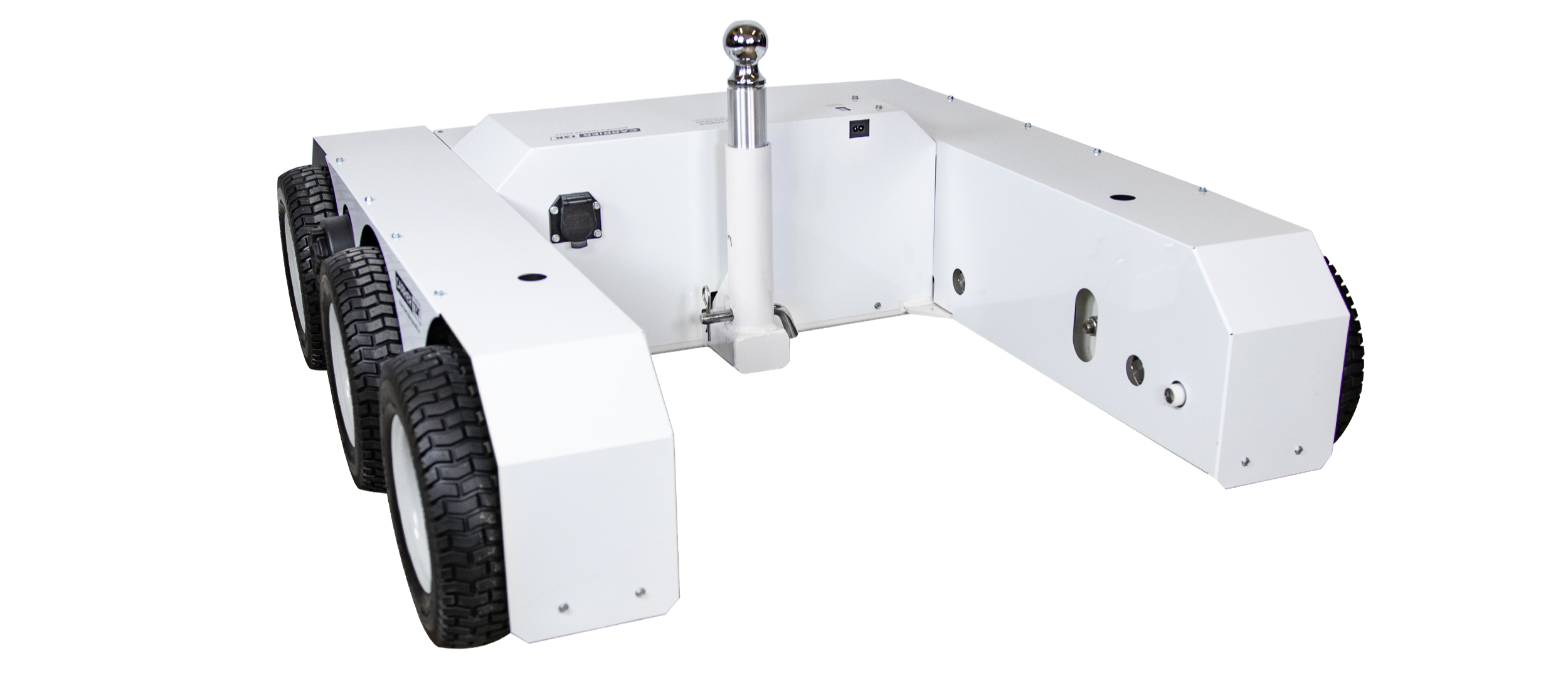

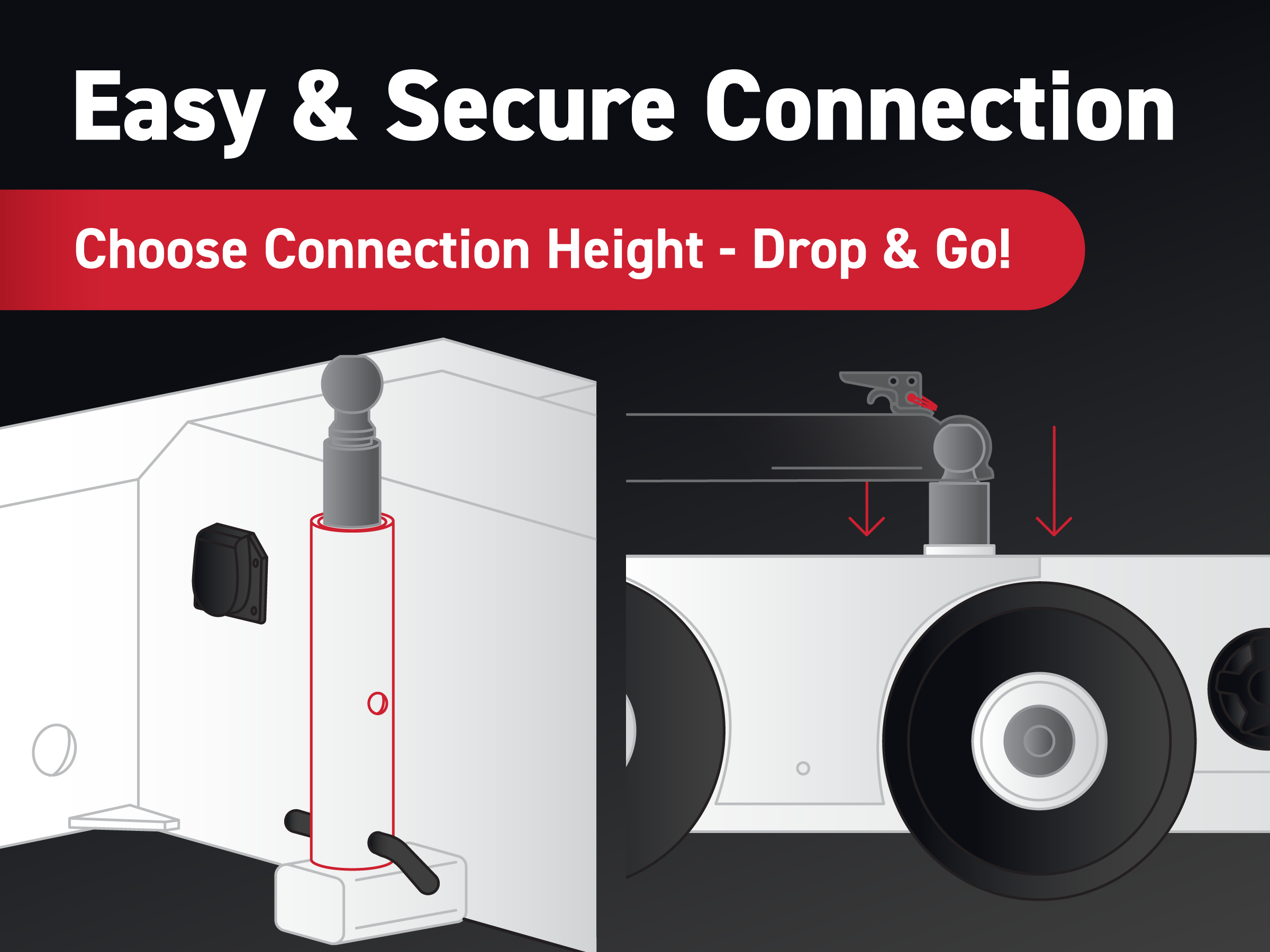

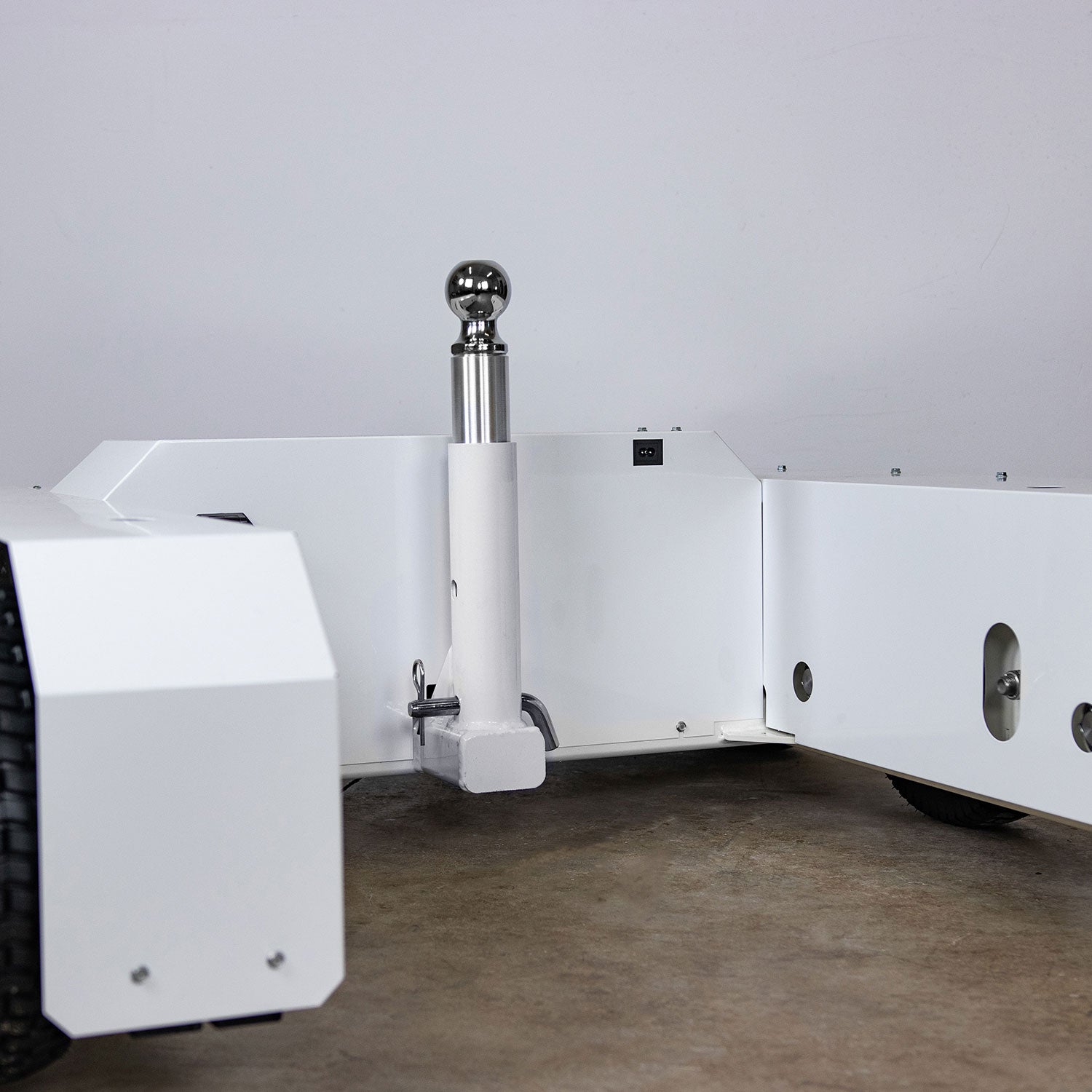

Intuitive Drop & Go Connection
No tightening or external stabilization required! Lower the trailer hitch onto the adjustable height adapter, and go! Move more trailer's faster with a higher ball mount capacity than our Force and Transformer Models.

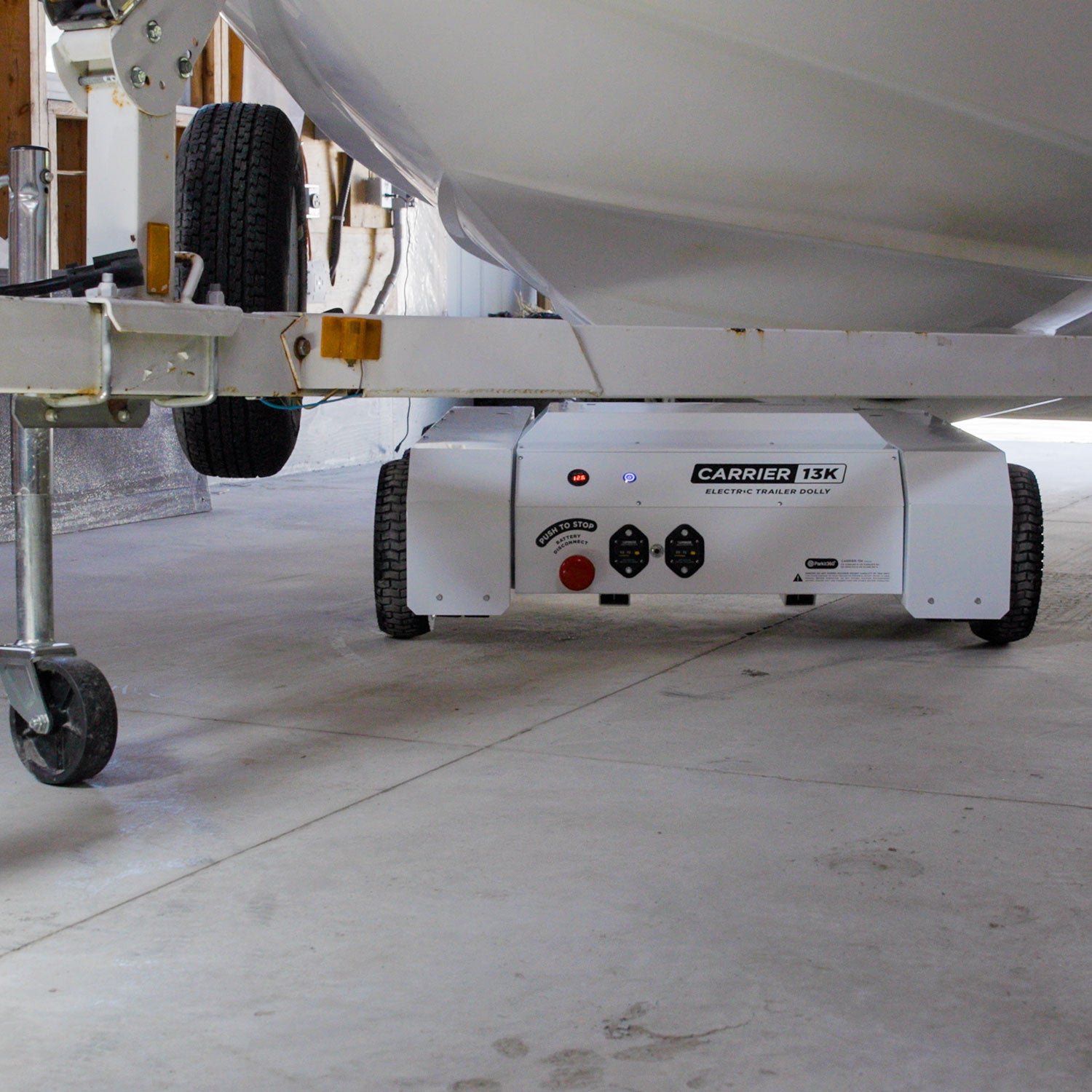

Lowest Profile to date, with room to spare!

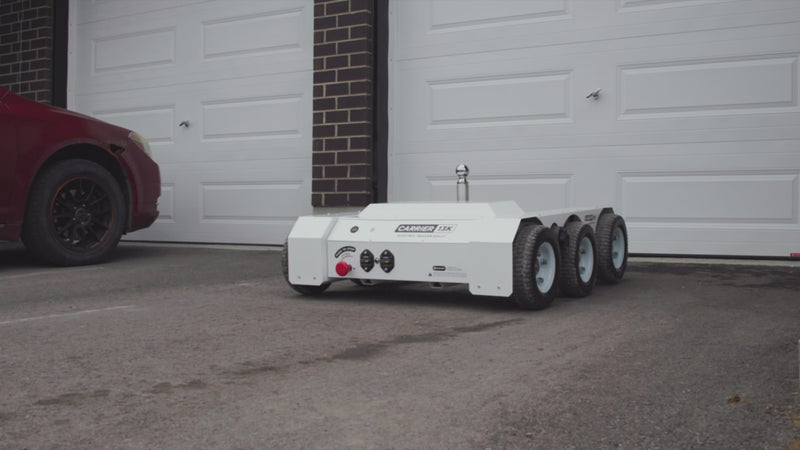

Measuring only 12" at its highest point, the Carrier's frame can easily fit underneath many trailer hitches. Turn on a dime with ample clearance for a smooth, stress free parking experience.
Intelligent Speed Control™ (ISC)
Switch between High and Low-Speed anytime for Fast or more Precise Parking. Motor Starts and Stops gradually to prevent damage to your trailer from sudden stopping. Switch modes with the New Wireless Controller!

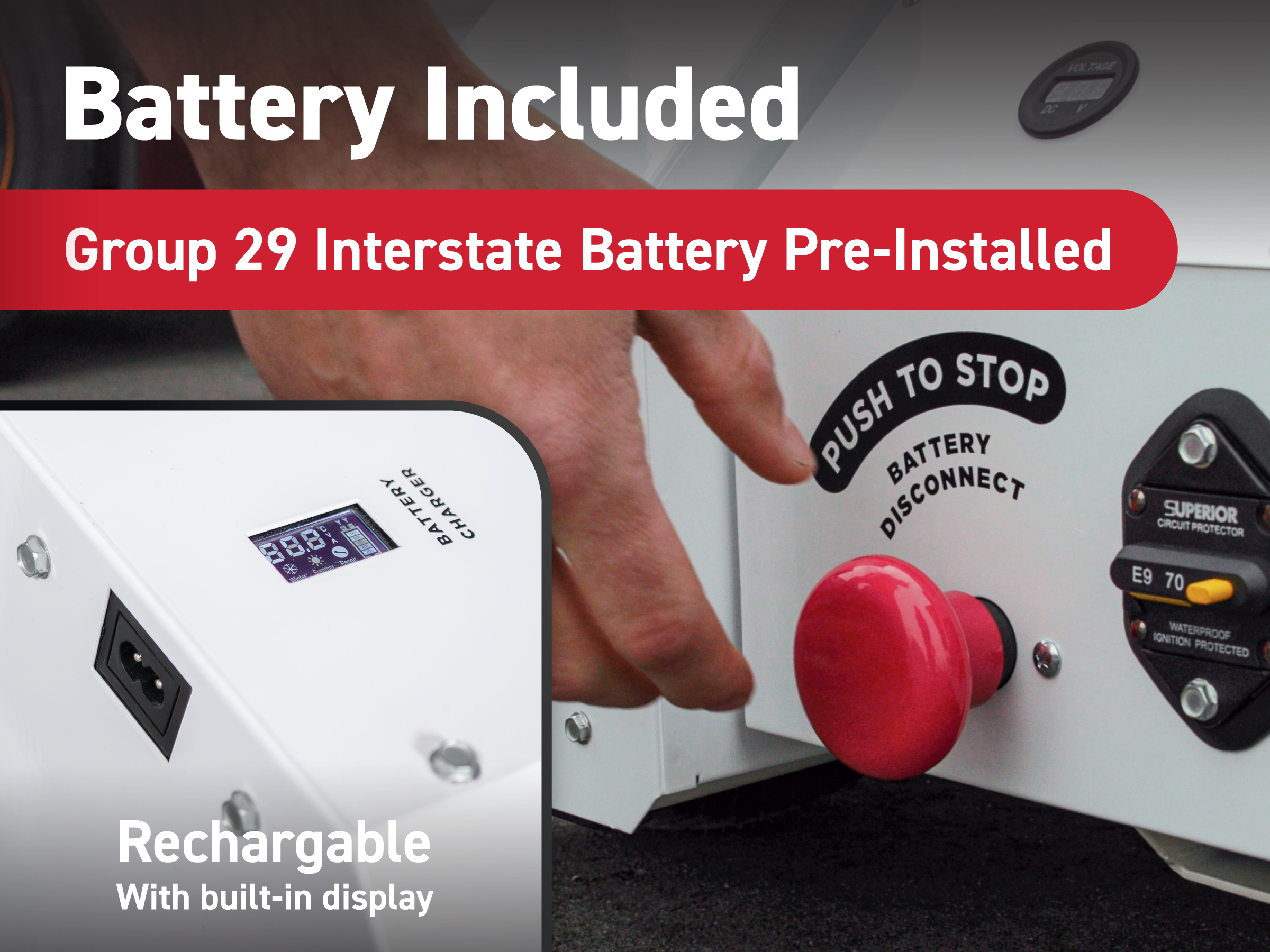

BATTERIES INCLUDED: Two pre-installed Interstate®12V U1 Sealed Batteries. Arrive fully charged and ready to move with up to 2 hours of runtime!

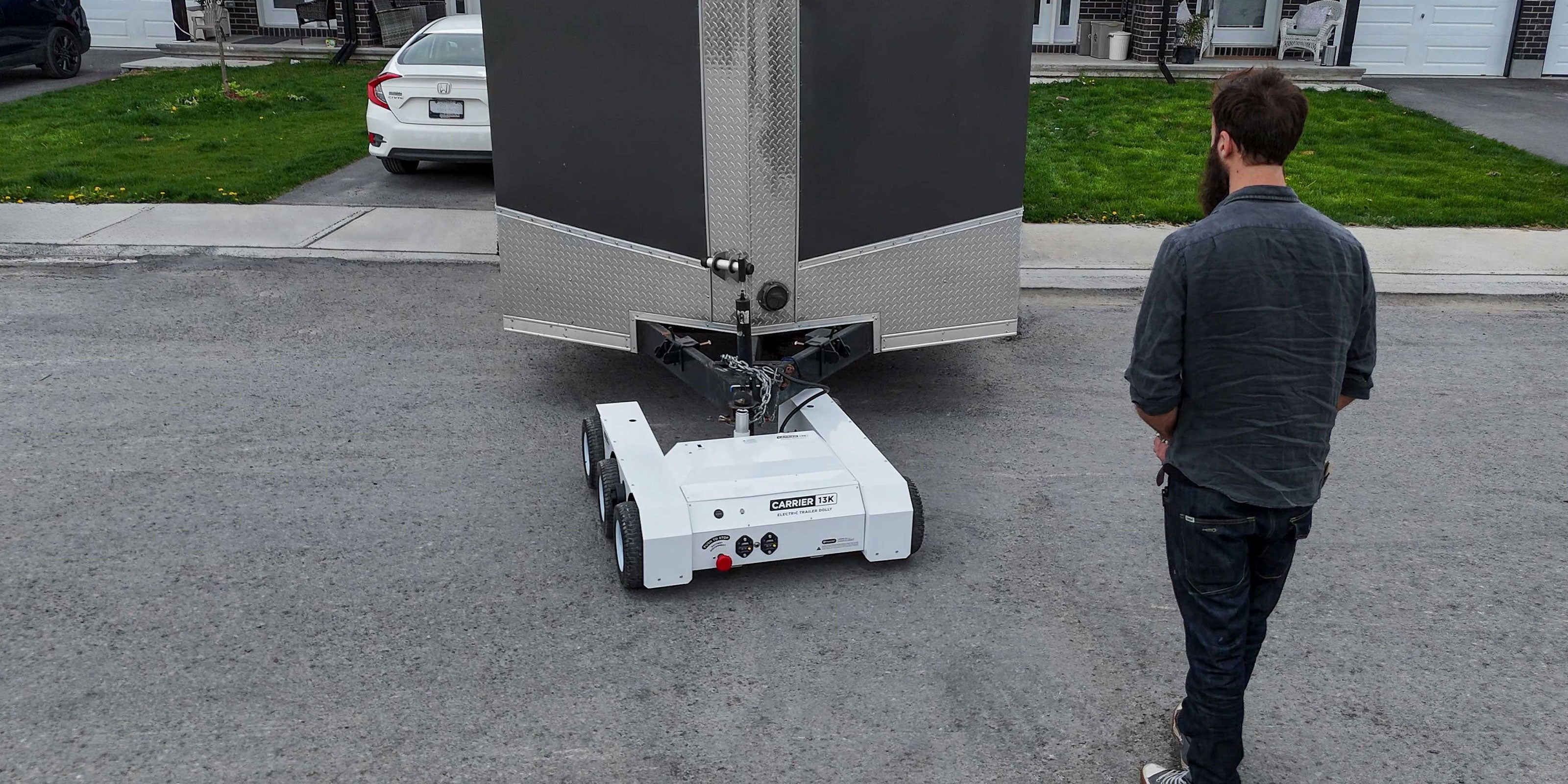

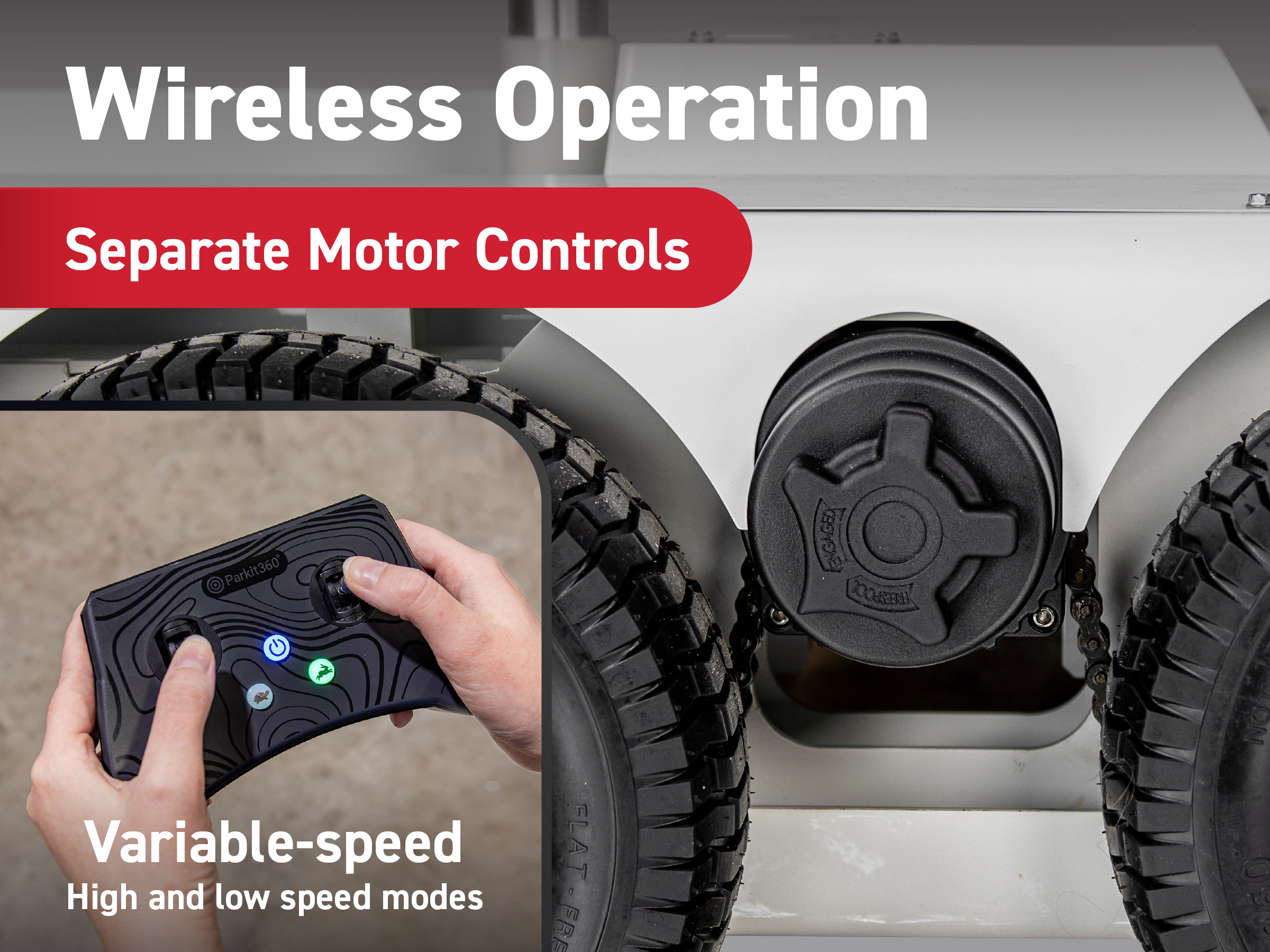

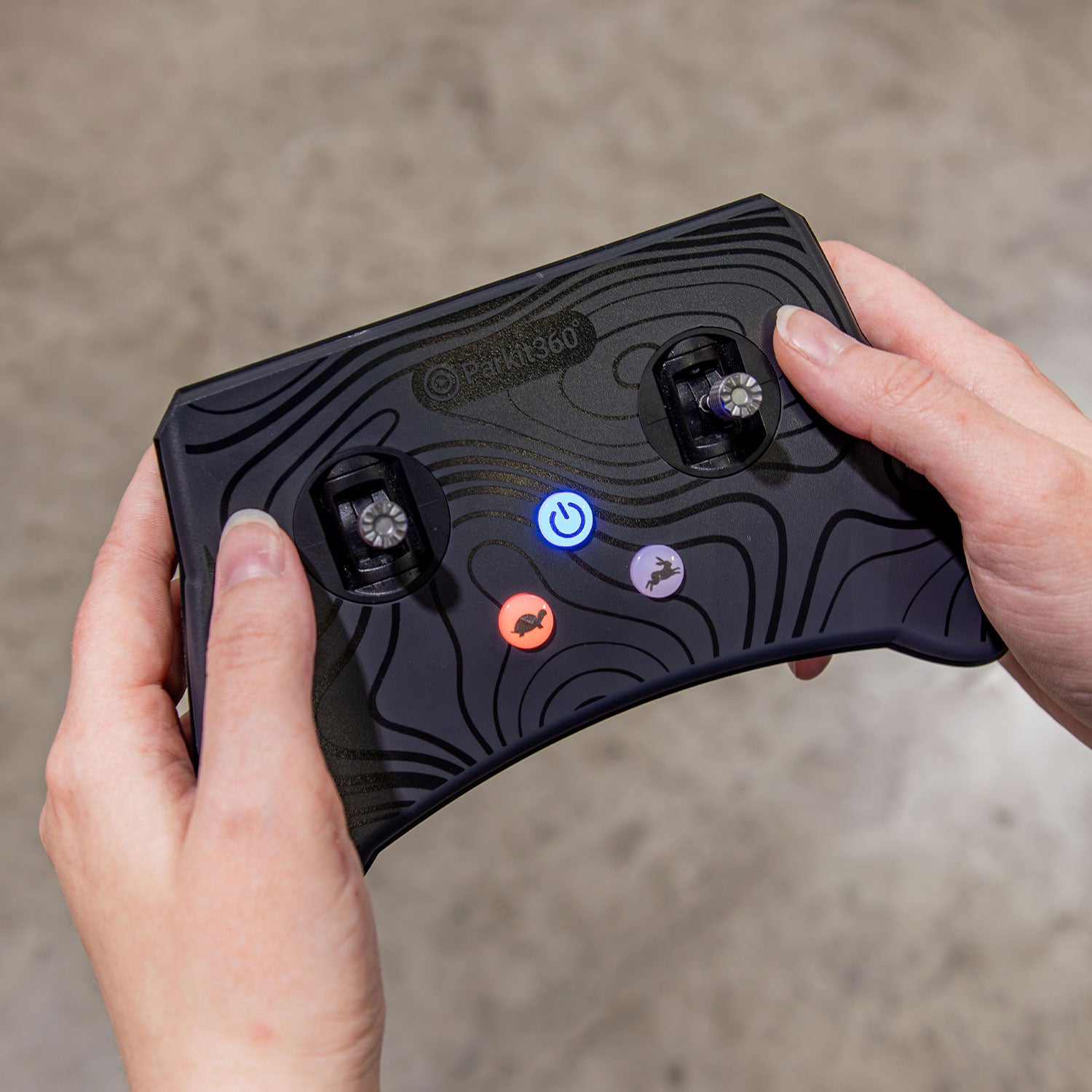

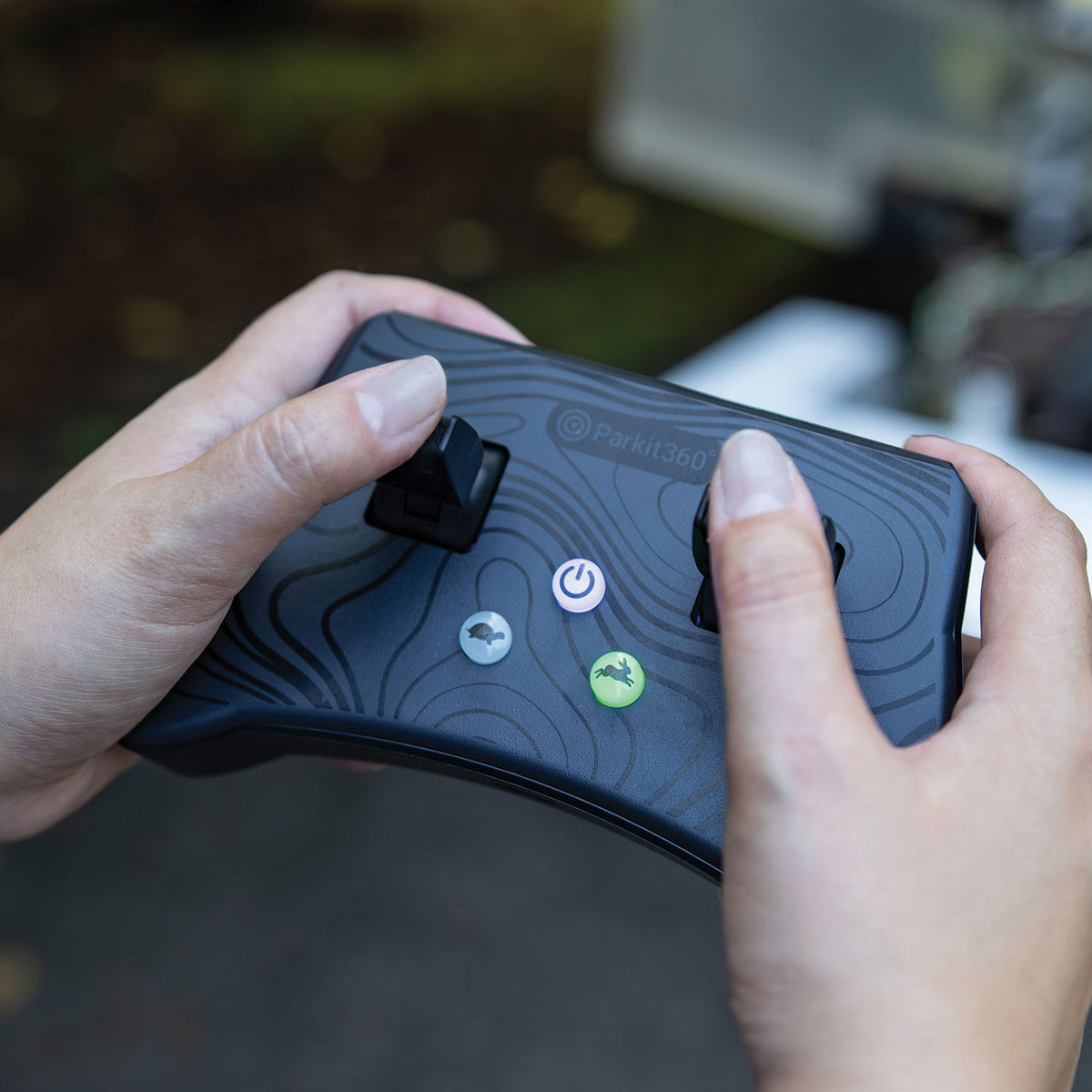

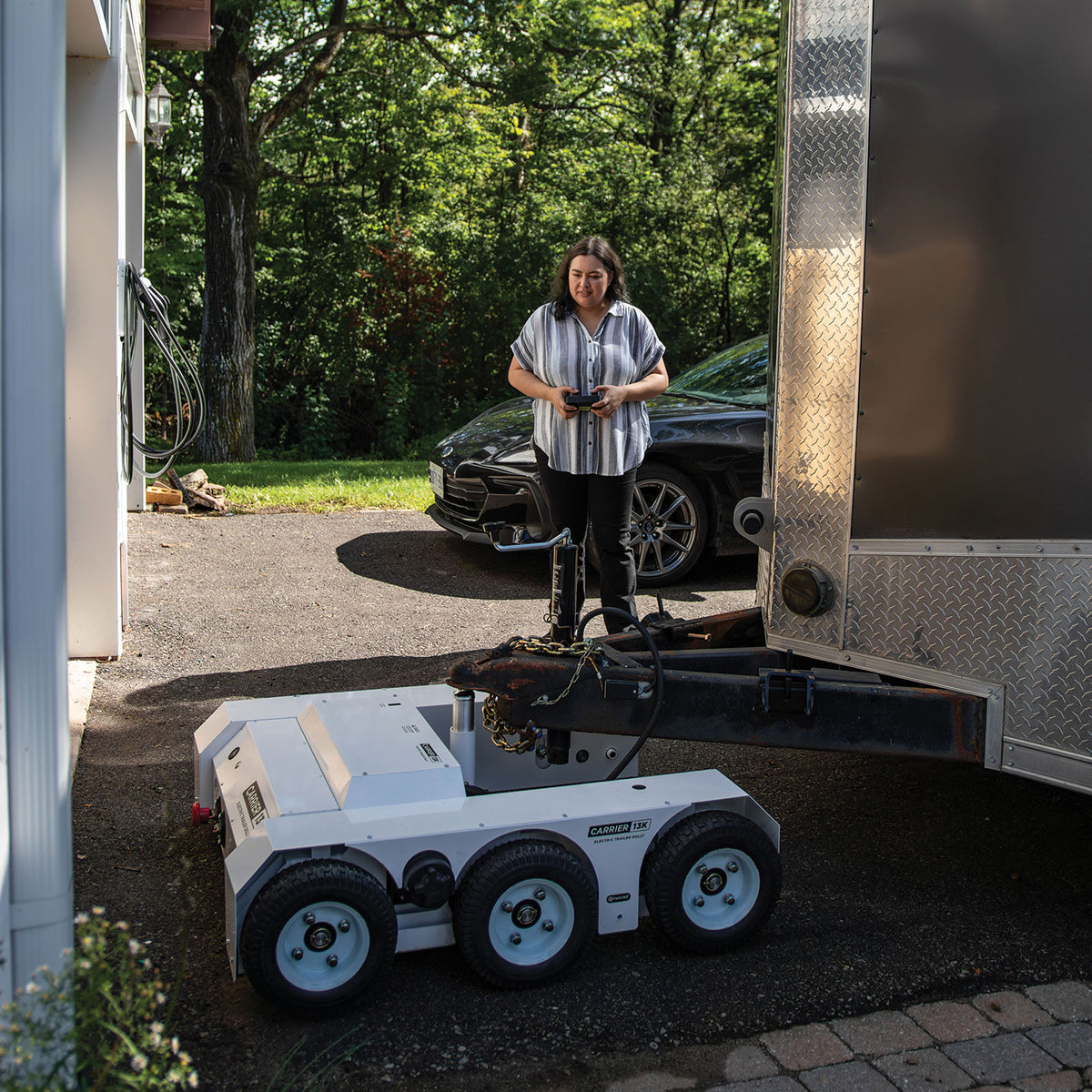

WIRELESS CONTROLLER: Get precise parking from a distance! See exactly where the Trailer is at all times and steer within inches of any obstacle. Allows for 360 degree rotation.
Two 1.5 HP MOTORS: Custom 1.5 Hp Bosch Motor for the Ultimate Power and Performance.
Two FREEWHEEL KNOBS: Engages or Disengages Motor from Drive to Neutral to move the Dolly Without Power.
VOLTMETER: Digital Volt Meter that measures and displays Power Level of Battery.
CIRCUIT BREAKERS: Protects Motor and Smart Brake from power surges.

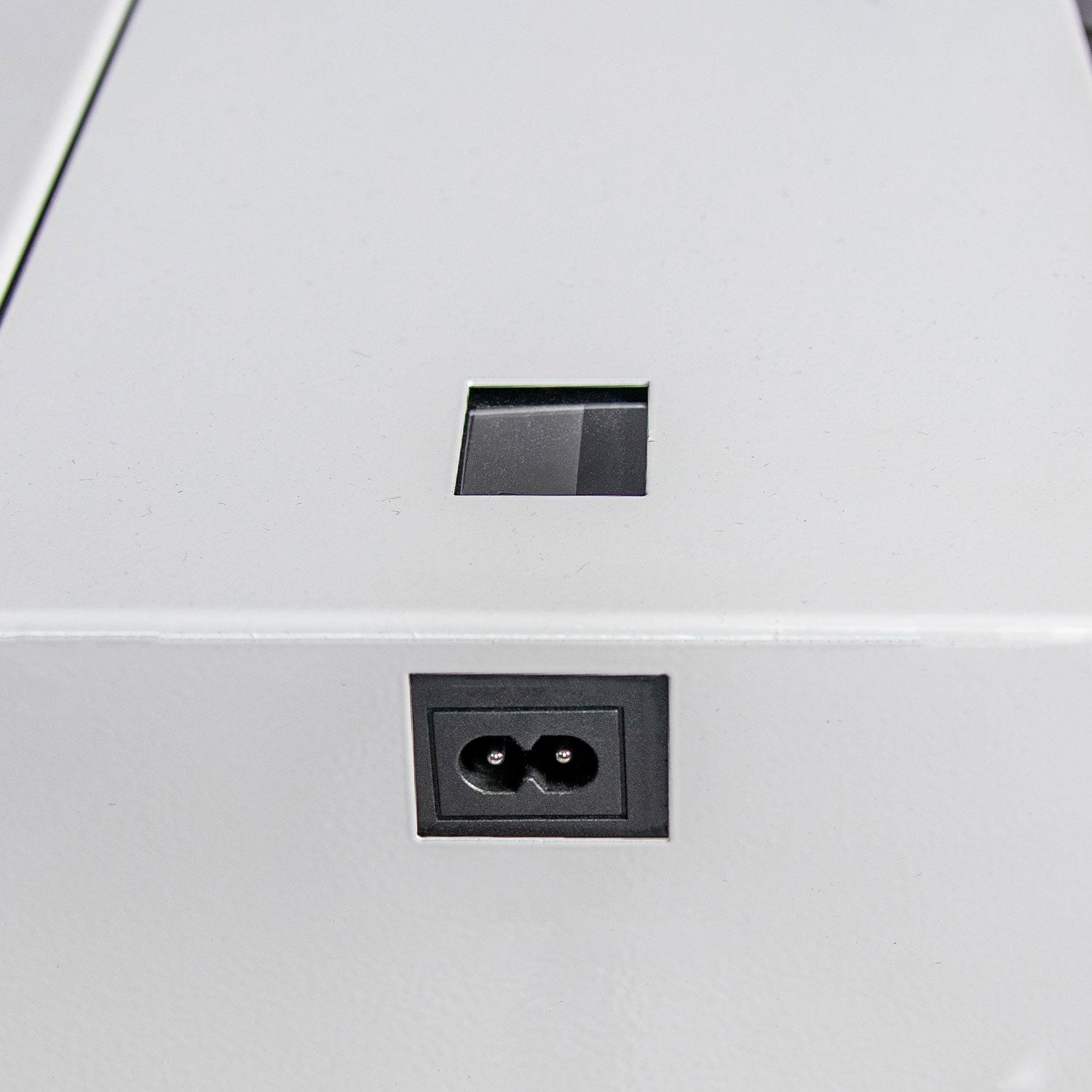

BATTERY CHARGER: Battery Tender. Activates when the Dolly is plugged into a Wall Socket. Stops charging automatically when full.

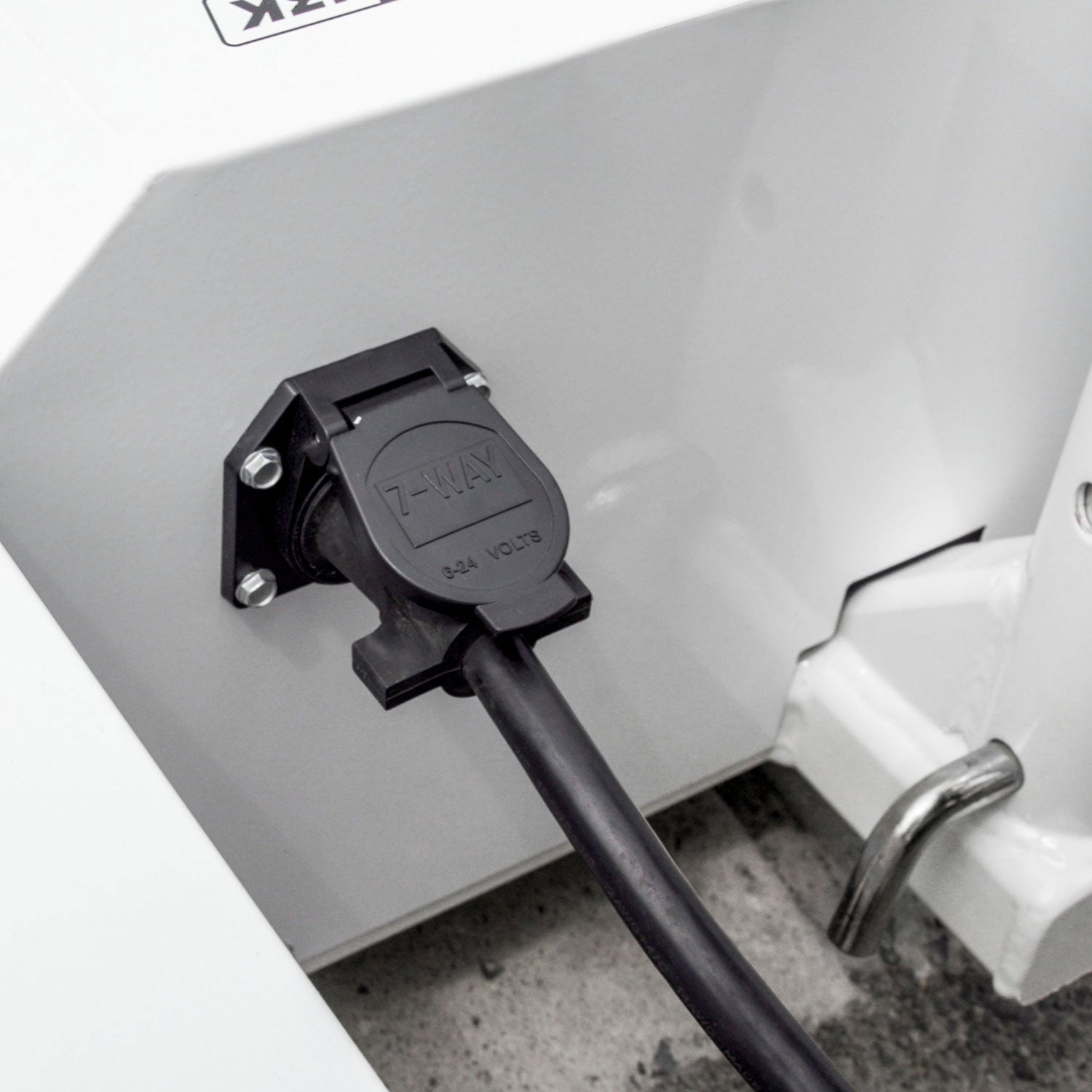

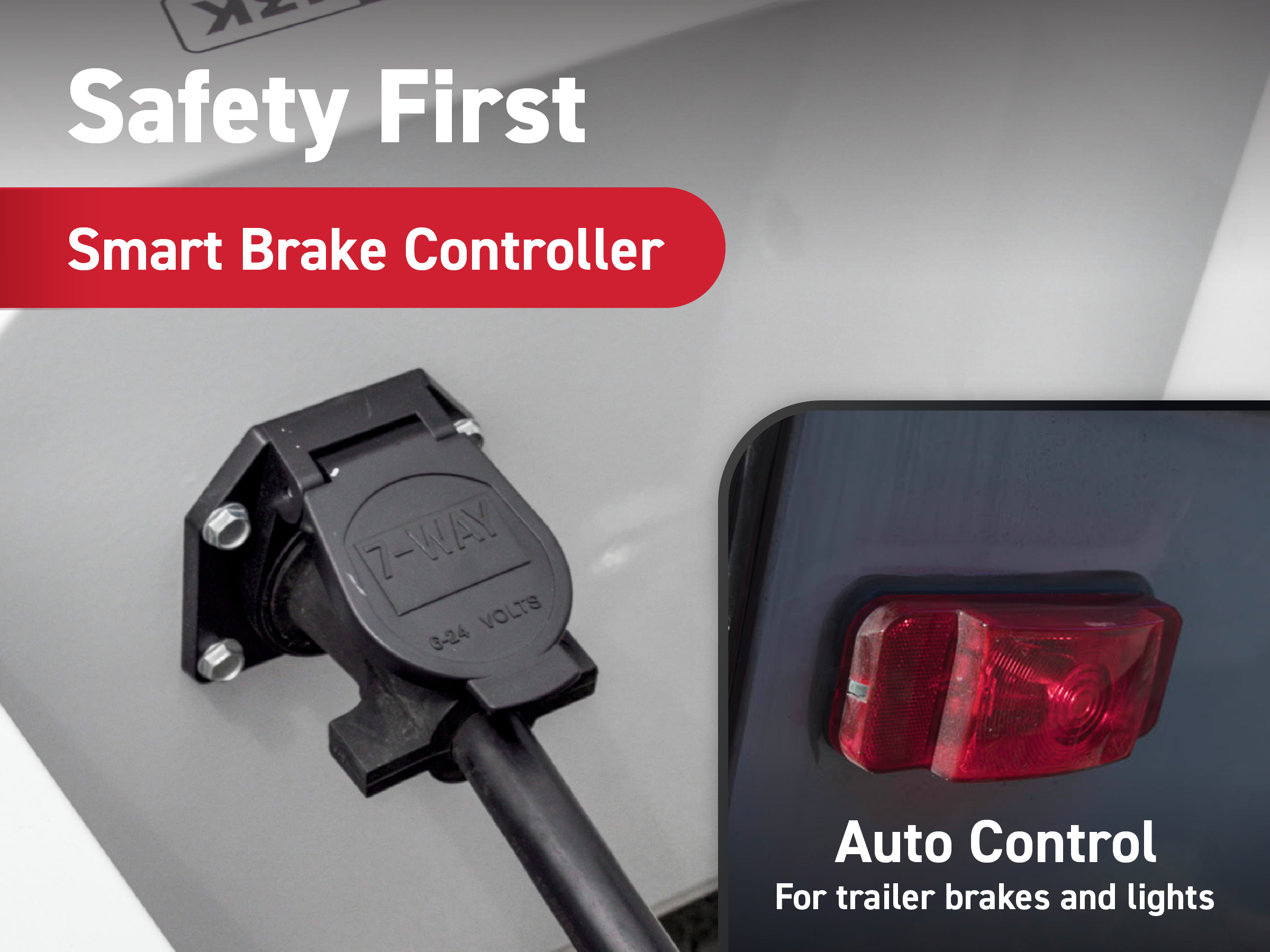

SMART BRAKE: 7-Way Power Plug that Controls the Trailer’s Electric or Surge Brakes.
10" TIRES: Six heavy-duty tires provide plenty of traction on firm grass, packed gravel, asphalt, and on a maximum grade of 4%. The center tires sit slightly lower than the rest, giving this dolly the ability to scale small obstacles and garage thresholds with ease!
Learn how to measure the slope of your driveway by watching our video.
SPECIFICATIONS
DIMENSIONS:
45" L x 42" W x 12” H - Approx. 350 lbs (With Batteries Installed)
RUN-TIME: 1.5 - 2 hrs (Depending on Amp Draw)
TIRE PRESSURE: 50 PSI
BALL MOUNT HEIGHTS: Standard 20" from Ground to Top of Ball Mount
DROP & GO ADAPTER HEIGHTS: Adjustable 18" - 21" from Ground to Top of Ball Mount
HITCH BALL SIZES: Each Carrier Adapter includes a custom 2" and 2 5/16" ball.
SHIPPING DIMENSIONS:
Reinforced Cardboard Box, Packaged on Skid:
55” L x 42” W x 22” H - Approx. 400 lbs
