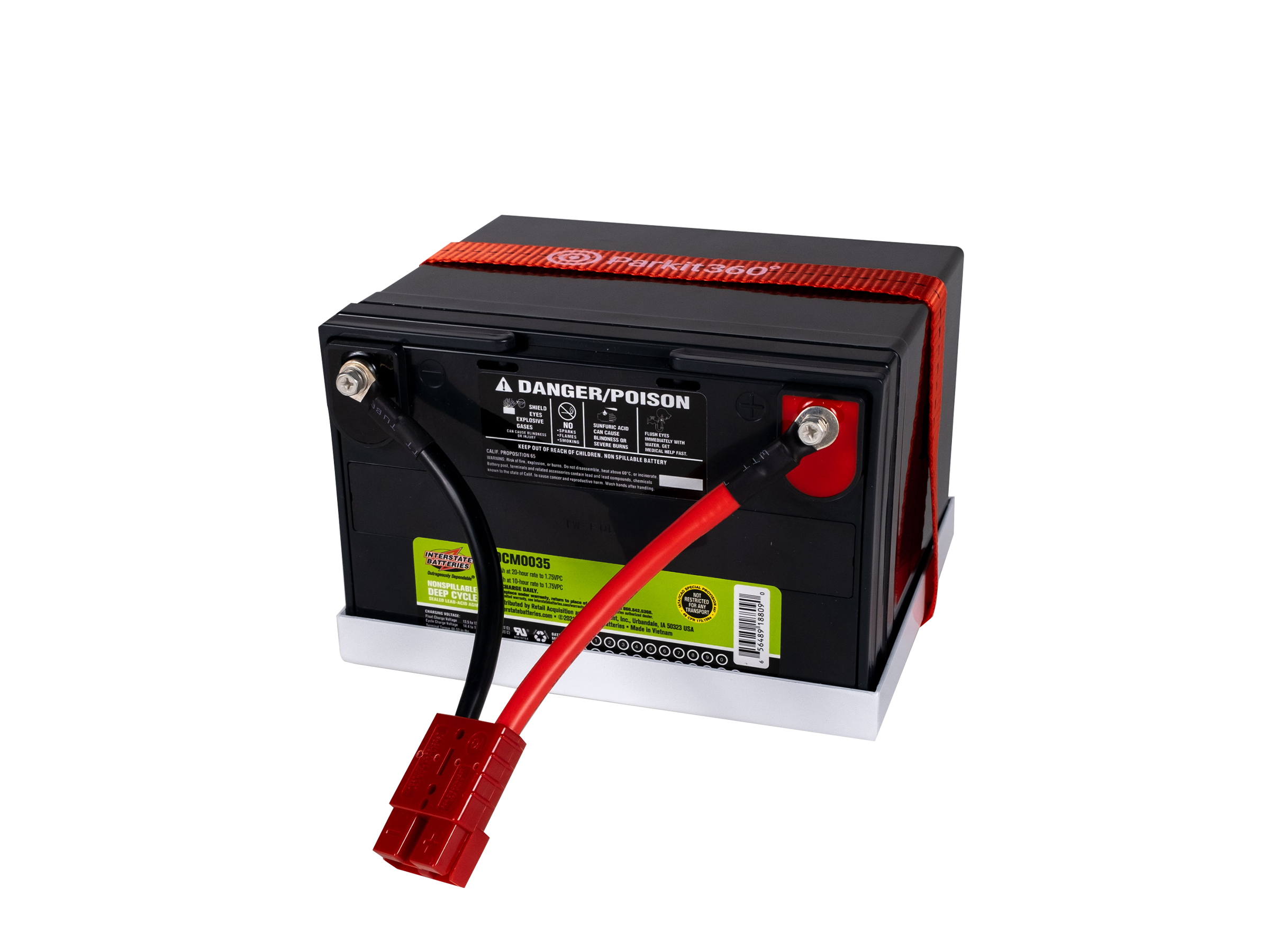

U1 Battery Kit- FORCE ISC
-
A complete U1 12V Sealed Battery Kit. Includes custom steel Battery Tray and Battery Cables. Mounts directly to the Force 5K & 10K Dollies with an adjustable Red Battery Strap. Comes pre-installed on our B2 and B3 Force packages, and is compatible with most of our previous Force Models.
This weatherproof sealed Battery is designed to lay on its side, giving the dolly a lower profile than the standard plastic Battery Box and providing better clearance underneath the hitch.
This Kit Includes:
- U1 12V Sealed Battery with Tray
- 6" Power Cable
(Longer Cable Required for Older Force Dollies) - Battery Strap
Tray Dimensions:
- 7 3/4" x 6 3/8" x 3/4"
- 19.8cm x 16.2cm x 2cm
Fits Most U1 Sealed Batteries. (Not compatible with 12V Group 24 Deep Cycle or Marine Batteries.)
Battery Specs:
- U1 Sealed 12V Battery
- Capacity: 33Ah
- Terminals: NB (Nut and Bolt)
- Chemistry: Deep Cycle
- Weight: 23lbs each (10.5 kg)
(This Product Only Ships within Mainland USA and Canada. If purchased separately, this item is non-returnable and non-refundable. Parkit360 Trailer Dolly sold separately.)
-
5k & 10k B
4" Tires
Ball Mount with Tightening Bar
Two Hitch Balls: 2" & 2 5/16"
Thrust Washer (Puzzle)
20" Battery Cable
Connect to Dolly Mounted Battery*
80" Battery Cable
Connect to Trailer's Existing Battery Set-Up**This Package does NOT include Battery or Battery Box.
5k & 10k B2
4" Tires
Ball Mount with Tightening Bar
Two Hitch Balls: 2" & 2 5/16"
Thrust Washer (Puzzle)
U1 Battery Kit
Includes Battery, Mounting Tray, Strap and 6" Power Cable
Built-In Battery Charger
Smart Brake Controller
Controls Electric & Surge Brakes via 7-Pin plug.5k & 10k B3
6.5" Tires
Ball Mount with Tightening Bar
Two Hitch Balls: 2" & 2 5/16"
Thrust Washer (Puzzle)
U1 Battery Kit
Includes Battery, Mounting Tray and Strap, and 6" Power Cable
80" Battery Cable
Connect to Trailer's Existing Battery Set-Up
Built-In Battery Charger
Smart Brake Controller
Controls Electric & Surge Brakes via 7-Pin plug. -
15k Ball Mount Only
Max Capacity: 10,000 lbs GVWR
Tongue Weight: 1,000 lbs20" Ball Mount Adapter
(Custom sizes available upon request.)
3 Hitch Balls: 1 7/8”, 2” & 2 5/16”
Wireless Remote Controller
Battery Box*
Built-In Battery Charger
Smart Brake Controller
(Controls Electric & Surge Brakes via 7-Pin plug.)
6.5" Wide Tires15k Fifth Wheel & Ball Mount
Max Capacity: 15,000 lbs GVWR
Tongue Weight: 2,200 lbsKingpin Measurements should be 48”-52” from Ground to bottom of Kingpin Box.
If measurements exceed 48”-52”, Contact Us before ordering.
Kingpin Adapter
(50" from Ground to Kingpin Box)
Kingpin Box Stabilizer Bars
(Landing Leg Version Available Upon Request)
20" Ball Mount Adapter
(Custom sizes available upon request.)
3 Hitch Balls: 1 7/8”, 2” & 2 5/16”
Wireless Remote Controller
Battery Box*
Built-In Battery Charger
Smart Brake Controller
(Controls Electric & Surge Brakes via 7-Pin plug.)
6.5" Wide Tires15k Gooseneck
Max Capacity: 12,000 lbs GVWR
Tongue Weight: 1,500 lbsThis is a Custom Item. Contact Us with your trailer measurements before ordering.
Gooseneck Adapter
* Battery NOT included. You will need to purchase a Group 24, 12V Deep Cycle Battery. Not Compatible with U1 Battery Kit.
(Customized to fit your Trailer Dimensions.)
3 Hitch Balls: 1 7/8”, 2” & 2 5/16”
Wireless Remote Controller
Battery Box*
Built-In Battery Charger
Smart Brake Controller
Controls Electric & Surge Brakes via 7-Pin plug.
6.5" Wide Tires -
