SIMPLE PARKING
FOR EVERY TRAILER
Engage Motor, Connect Battery, Secure Hitch Adapter and Go!
Compatible with almost every Trailer right out of the box. See Instruction Manual for details:

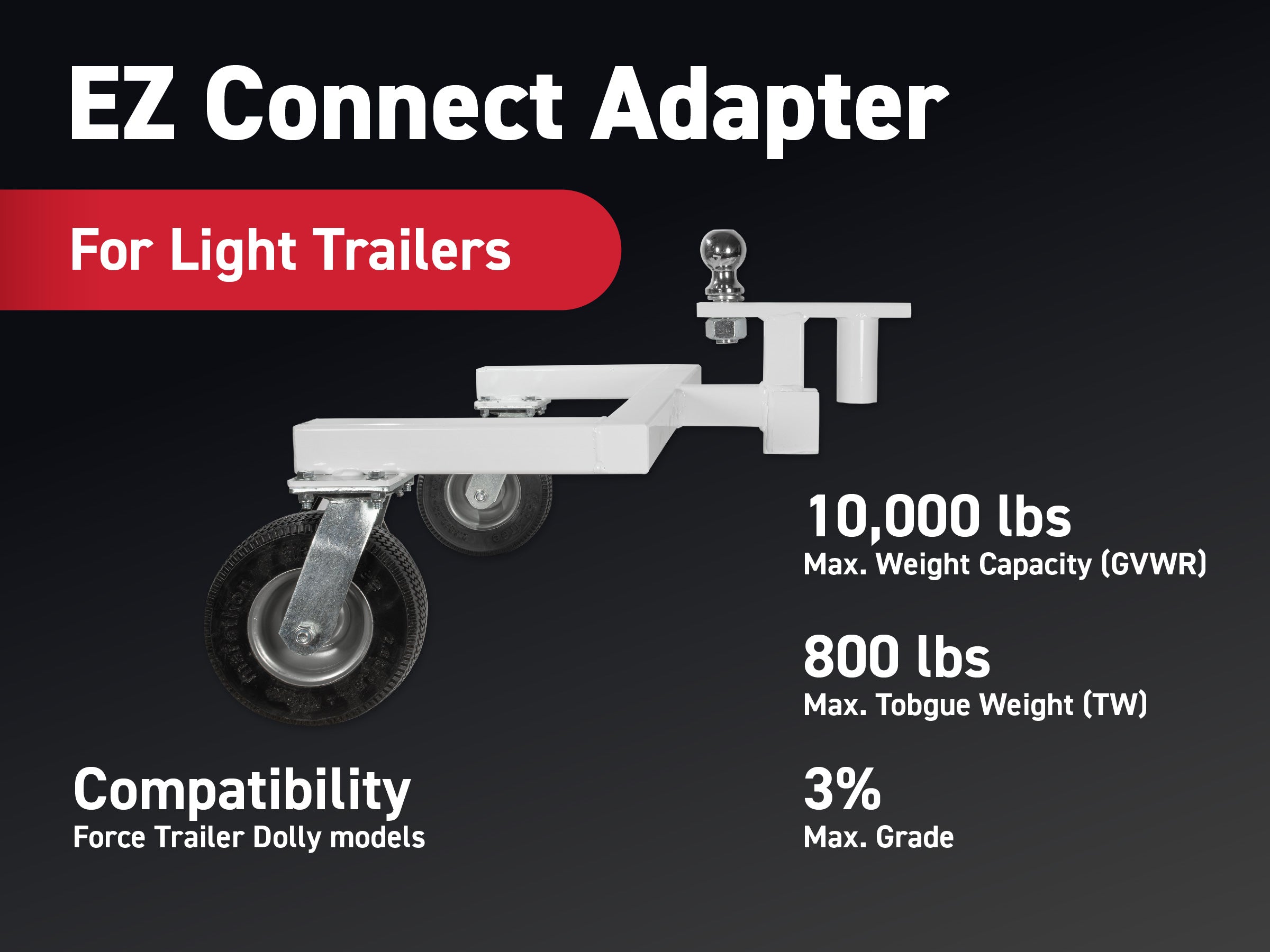

BALL MOUNTED STABLELOCK TECHNOLOGY
Each package comes with the Standard 20” Ball Mount Adapter and Two Hitch Balls: 2" and 2 5/16"
Custom Sizes Available Upon Request.
BATTERY POWERED
U1 Battery Kit: Includes a fully charged 12V Interstate® Battery.
Battery Box Kit: Already own a Battery? Mount any Group 24, 12V Deep Cycle or Marine Battery to the Dolly for self-contained power. (Battery NOT Included)
80” Battery Cable: Connect to your Trailer's Battery, or connect to a Dolly-Mounted Battery.
WORKS ON FIRM GRASS, PACKED GRAVEL AND ASPHALT
Our 6.5” Wide Tires provide plenty of traction on varied terrain and on a maximum grade of 6%.
Learn how to measure the slope of your driveway by watching our video.
COMPACT & PORTABLE
The Force Dolly weighs approx. 80lbs without the Handle, Ball Mount, or Battery installed. It's easy to disassemble and fits into the trunk of a small sedan or trailer storage compartment.
DOLLY FEATURES
Intelligent Speed Control™ (ISC)
Switch between High and Low-Speed anytime for Fast or more Precise Parking. Motor Starts and Stops gradually to prevent damage to your trailer from sudden stopping, a common issue with competitor’s dollies.
1.5 HP MOTOR: Custom 1.5 Hp Bosch Motor for the Ultimate Power and Performance.
FREEWHEEL KNOB: Engages or Disengages Motor from Drive to Neutral to move the Dolly Without Power.
VOLTMETER: Digital Volt Meter that measures and displays Power Level of Battery.
CIRCUIT BREAKERS: Protects Motor and Smart Brake from power surges.
BATTERY CHARGER: Battery Tender. Activates when the Dolly is plugged into a Wall Socket. Stops charging automatically when full. Disconnect the charger after an over-night charge (10 hrs Max).
SMART BRAKE: 7-Way Power Plug that Controls the Trailer’s Electric or Surge Brakes.
SPECIFICATIONS
DOLLY DIMENSIONS
BASE: 30" L x 19" W - Approx. 110 lbs
5K & 10K: 30" L x 19" W - Approx. 120 lbs (With Battery)
Receiver Tube Height: Approx. 18" from Ground
SHIPPING DIMENSIONS
BASE: 38" x 18" x 20" - Approx. 130 lbs
5K & 10K: 38" x 18" x 20" - Approx. 140 lbs (With Battery)
RUN-TIME: 1.5 - 2 hrs (Depending on Amp Draw)
TIRE PRESSURE: 40 PSI
BALL MOUNT SIZES: Standard 20", 18" or 24"
HITCH BALL SIZES: 1 7/8", 2", 2 5/16", 50mm
(Prices Subject to Change)
