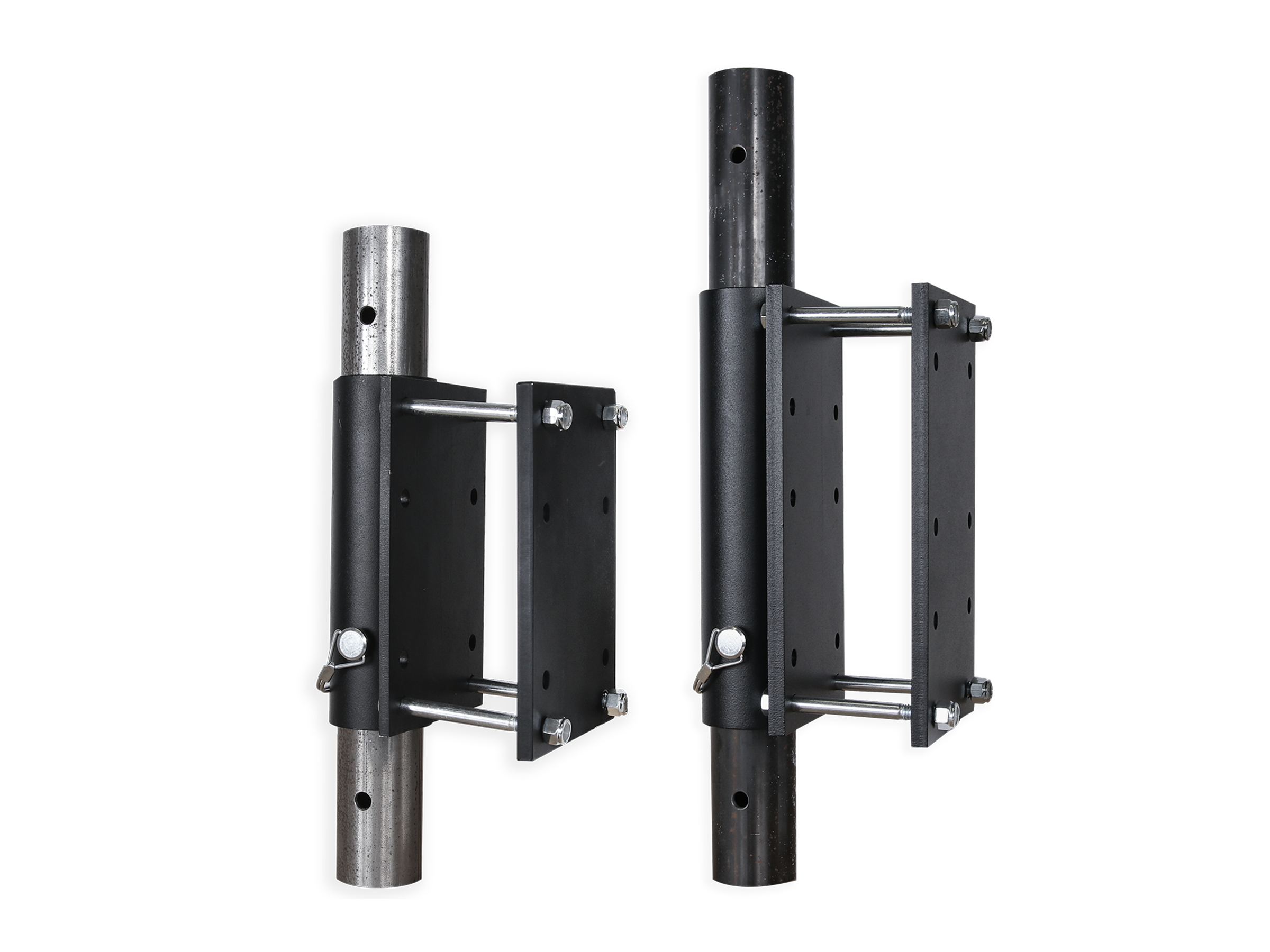

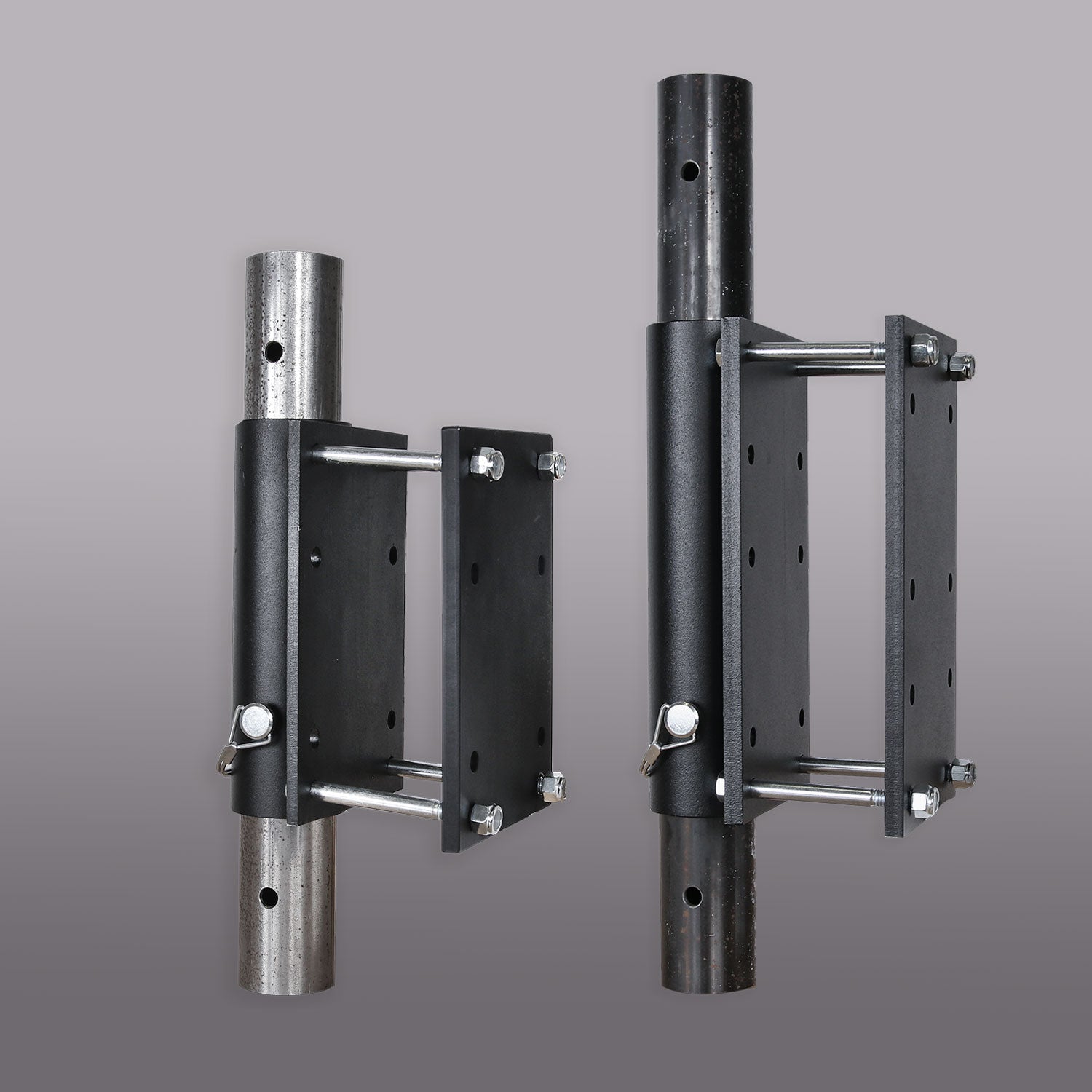

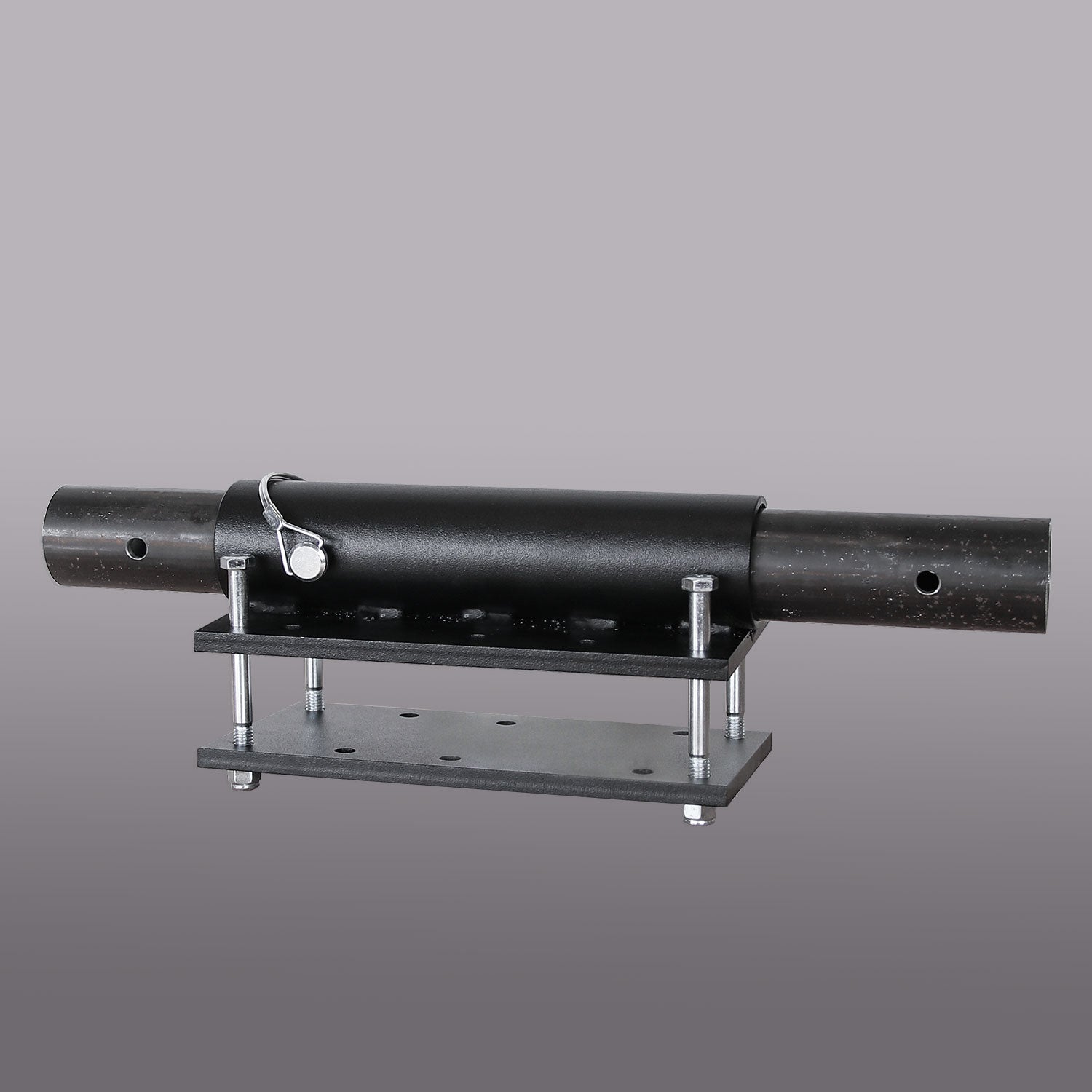

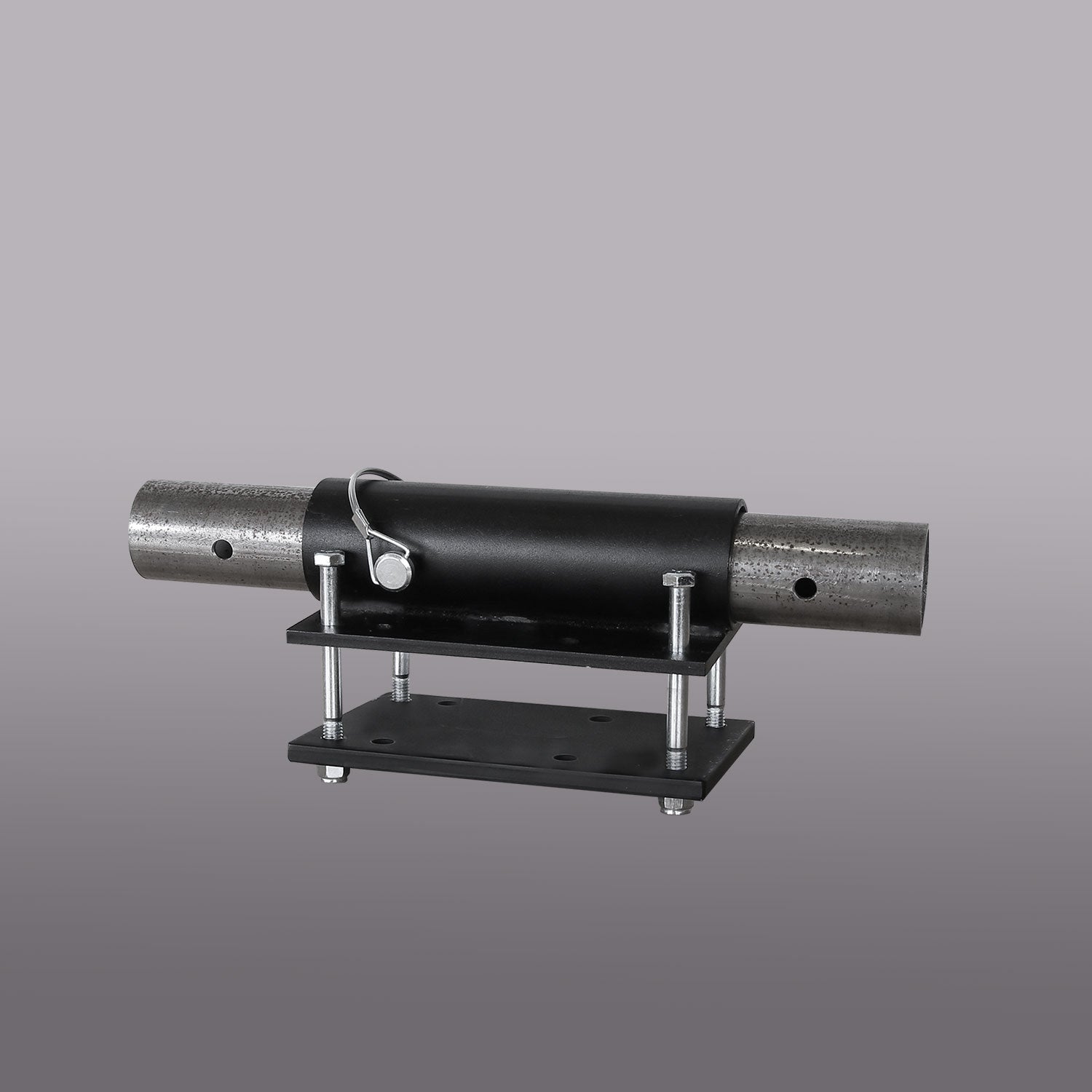

The Telescopic Frame Adapter bolts around the trailer frame to create an alternative connection point for our trailer dollies. No welding, drilling, or cutting required!

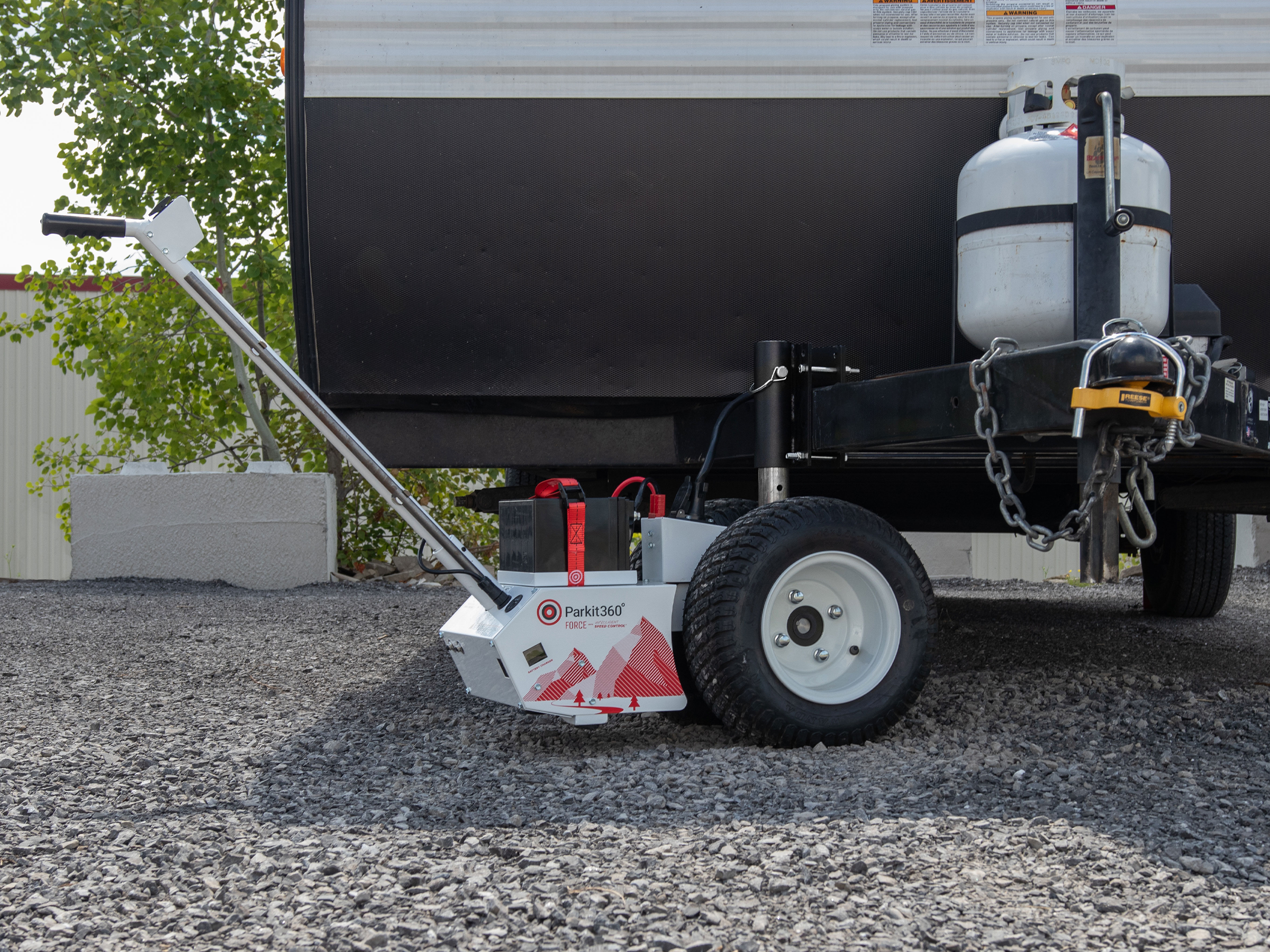

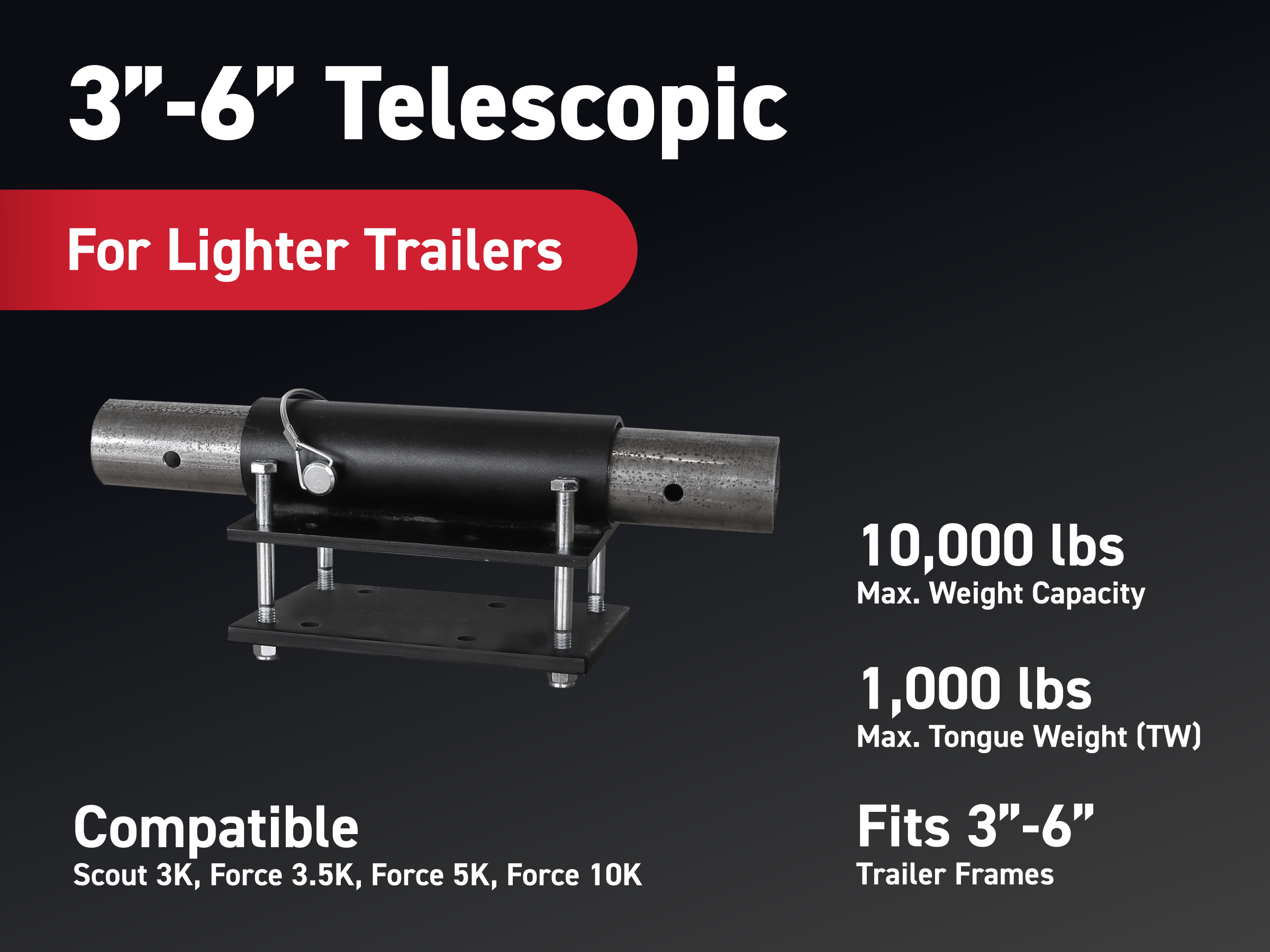

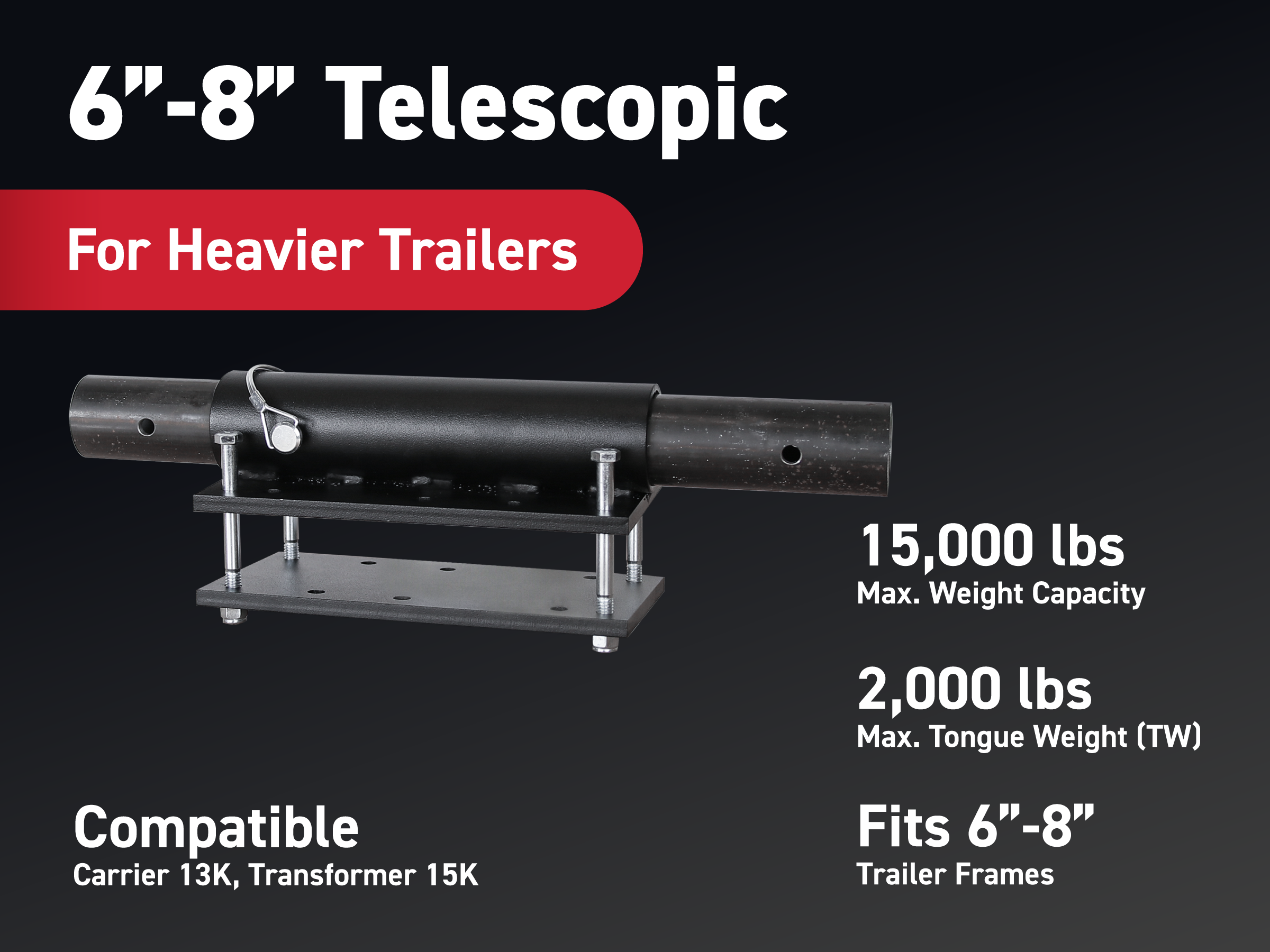

Install the adapter on the trailer’s A-frame or directly onto the trailer tongue if space allows. These universal frame adapters are designed to fit the most common trailer frame heights, with two models available for light and heavy duty towing.
Not sure which model is best for your trailer? We recommend:
Ensure the model you select is compatible with your trailer dolly. Measure the overall height and width of the installation point on your trailer frame to confirm the fit. Never exceed the maximum weight capacity of your trailer dolly.
Installation instructions:
Level out the trailer and secure it in place with wheel chocks.

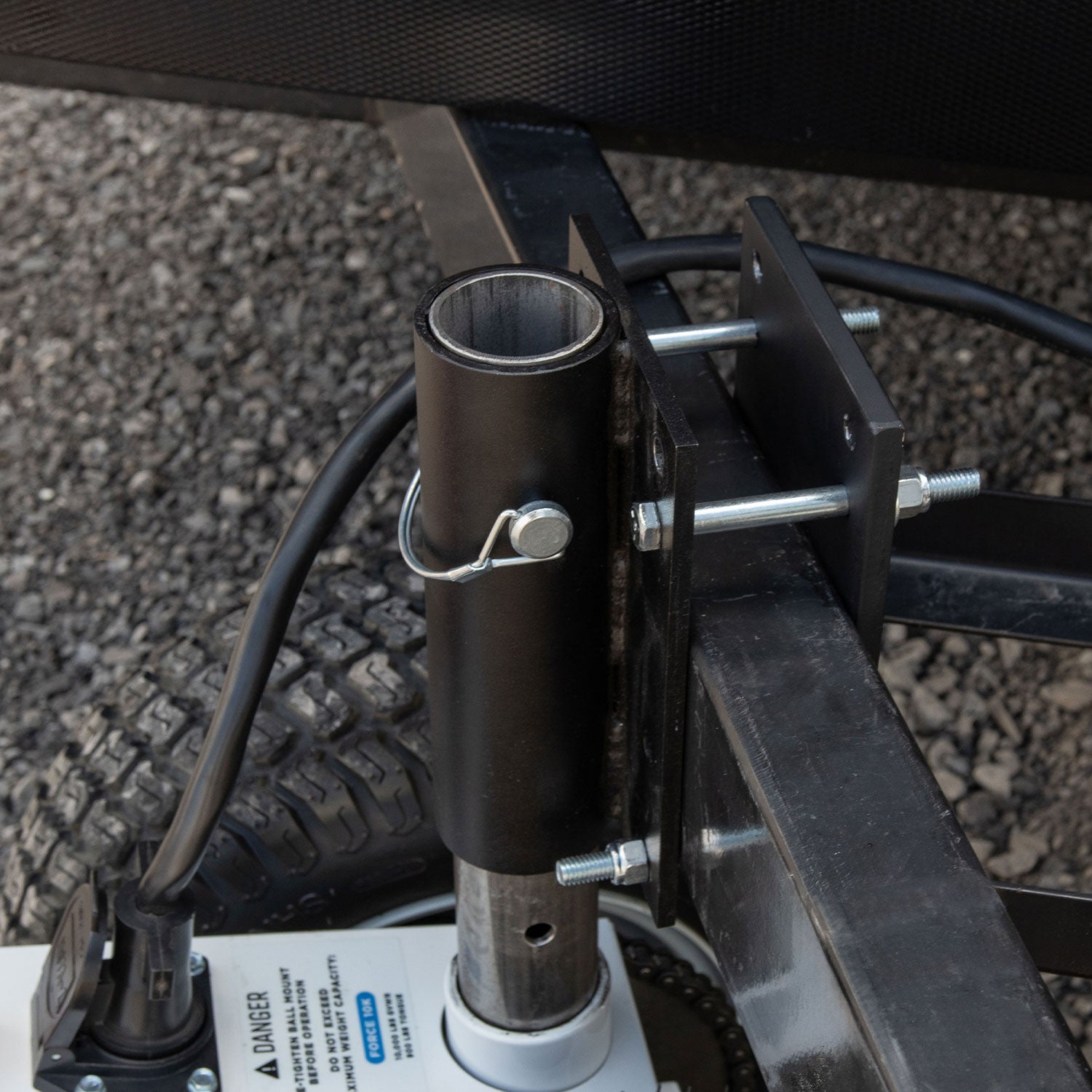

Remove the Telescopic Pipe, then bolt the adapter around the trailer frame with the included hardware. Ensure the lower Telescopic bolts are flush with the base of the trailer frame.

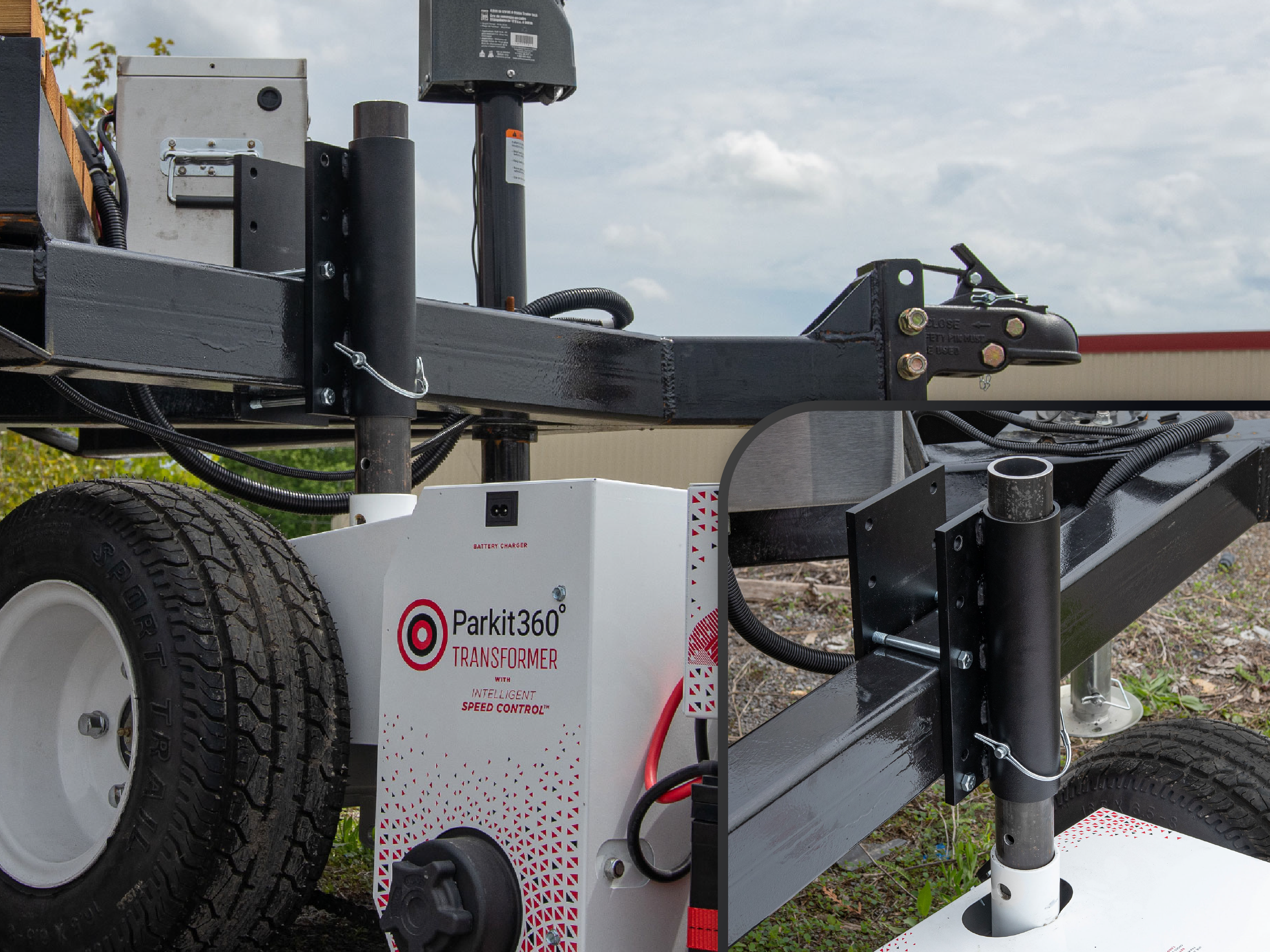

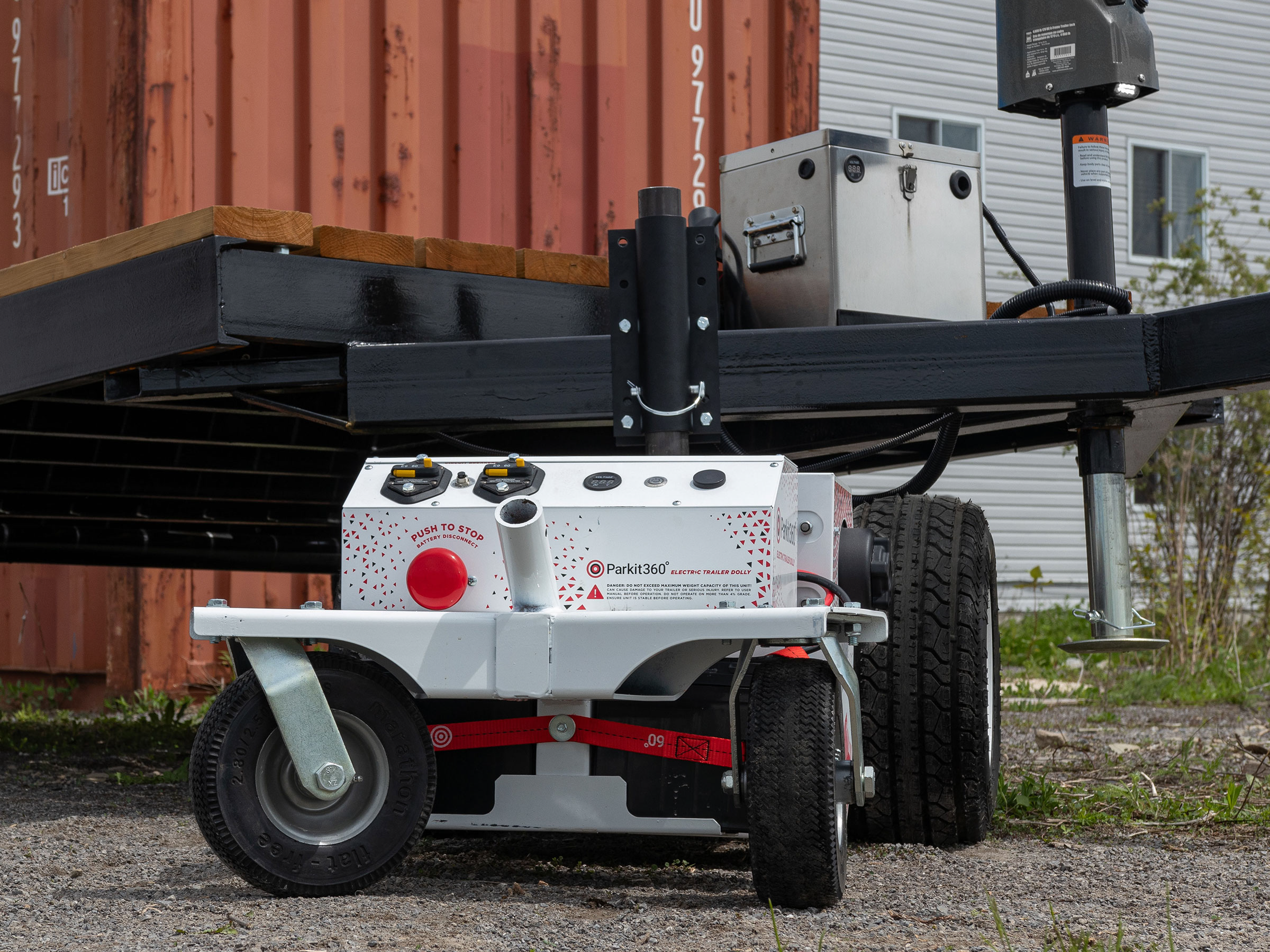

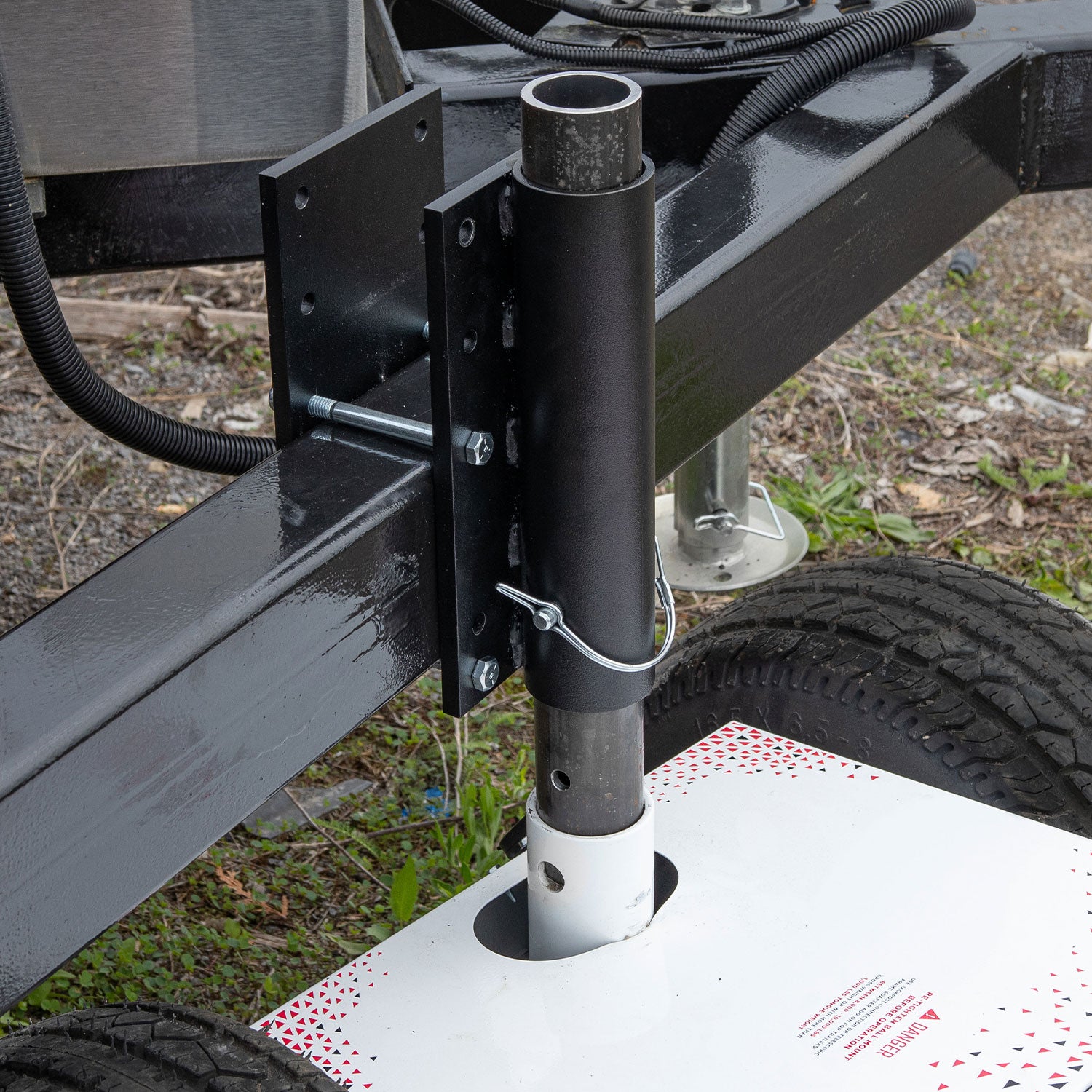

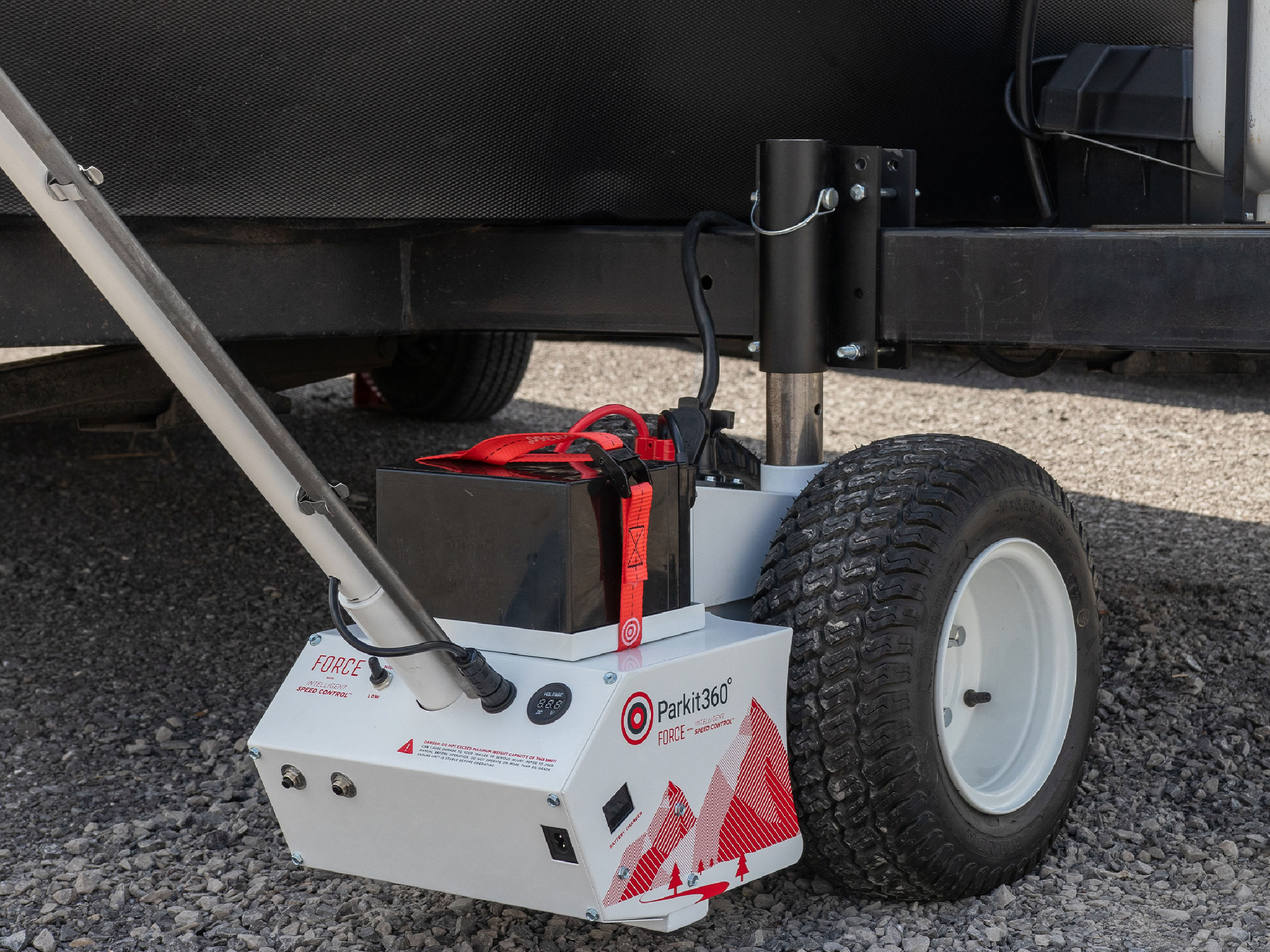

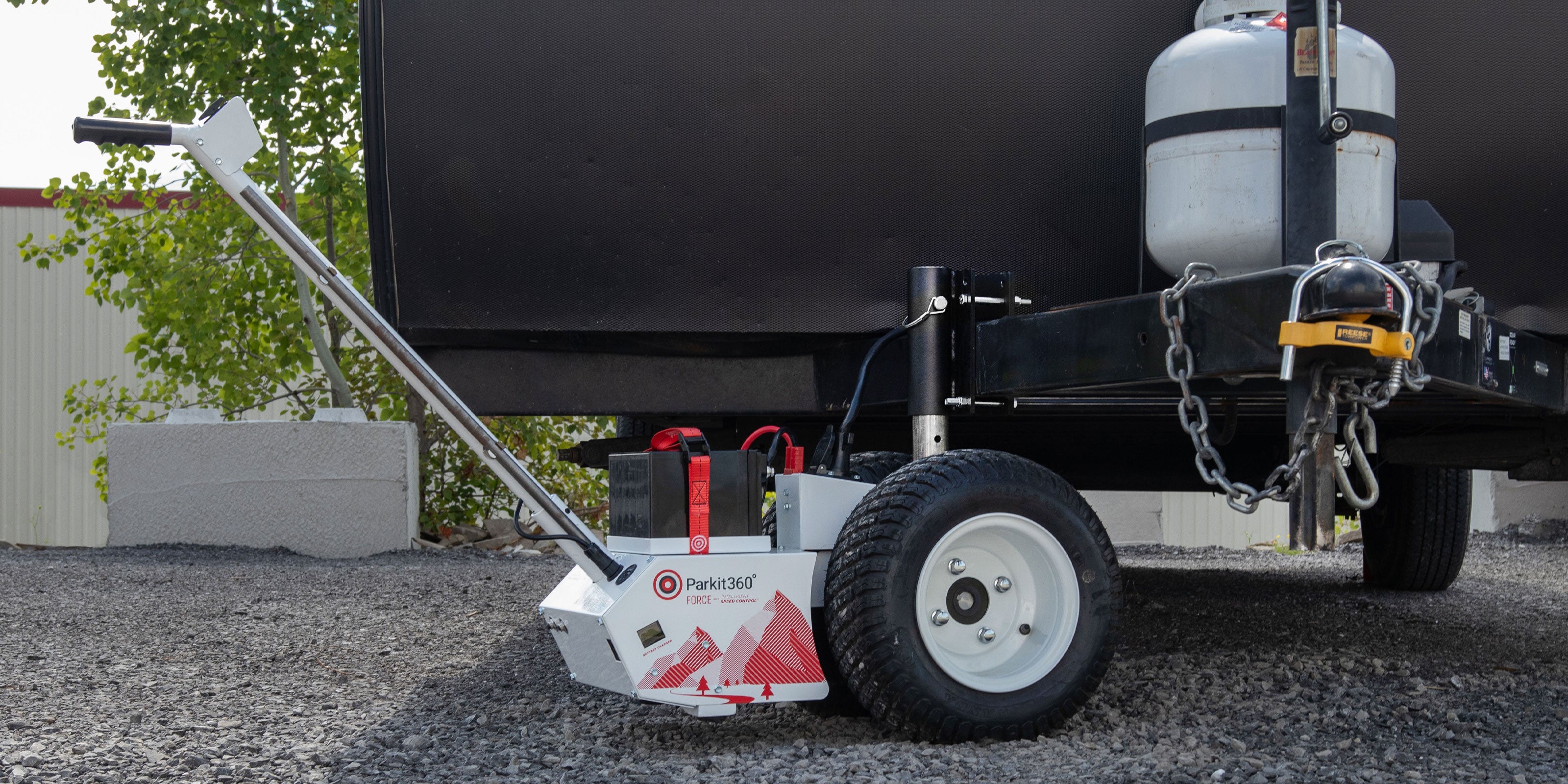

Once secured, move the dolly underneath the adapter. Align the adapter with the dolly’s receiver tube, then drop the Telescopic Pipe through the adapter and into the dolly.
Secure Telescopic pipe height with the included pin, then lower the trailer onto the dolly and go!
See our installation video for a detailed walkthrough:
Provided that stock is available, our products are usually delivered according to the following timelines:
Mainland USA Force 5K & 10K – 1-3 business days (Backordered) Transformer 15K – 3-7 business days Carrier 13K – See Pre-order page for details. Scout 3K – See Parkit360 distributors for details.
Canada (depending on location) Force 5K & 10K – 1-6 business days (Backordered) Transformer 15K – 3-10 business days Carrier 13K – See Pre-order page for details. Scout 3K – See Parkit360 distributors for details.
For open box dollies and parts, please allow 5-10 business days for delivery, regardless of your location.
Delivery timelines are subject to change depending on severe weather or stock shortages.
Force models ship the same day, as long as they are ordered before 5 p.m. EST.
All Trailer Dollies will require a signature upon delivery. If you would like to waive this requirement, leave us a note at checkout.
Note: We cannot ship Trailer Dollies to PO Box addresses.
Shipping Internationally?
We'd love to hear from you! Please Contact Us with your order and delivery details and we'll send you a shipping quote.
Free shipping applies to all orders over $600 that are shipped within the mainland USA and Canada.
Extra shipping costs will apply to the following locations:
Yes!Each trailer dolly includes a hitch adapter that's compatible with most ball mount trailer couplers. See the Transformer, Carrier or Accessories page for additional connections. All electric models include batteries, charging cables, hardware and built-in safety features so you can park with confidence.
GVWR (Gross Vehicle Weight Rating) includes the capacity of your trailer (how much you can put in it, including passengers). This is different from the dry weight, or unloaded vehicle weight (UVW), which is the weight of your trailer when empty.
Tongue weight is the downward force that the trailer tongue applies to the hitch when connected to the trailer dolly. Using your Parkit360 for a trailer with too much or too little tongue weight could make moving and steering difficult, or cause issues with traction. We recommend that your tongue weight be 10% of your trailer's gross weight (GVWR), although this may vary for smaller trailers.
